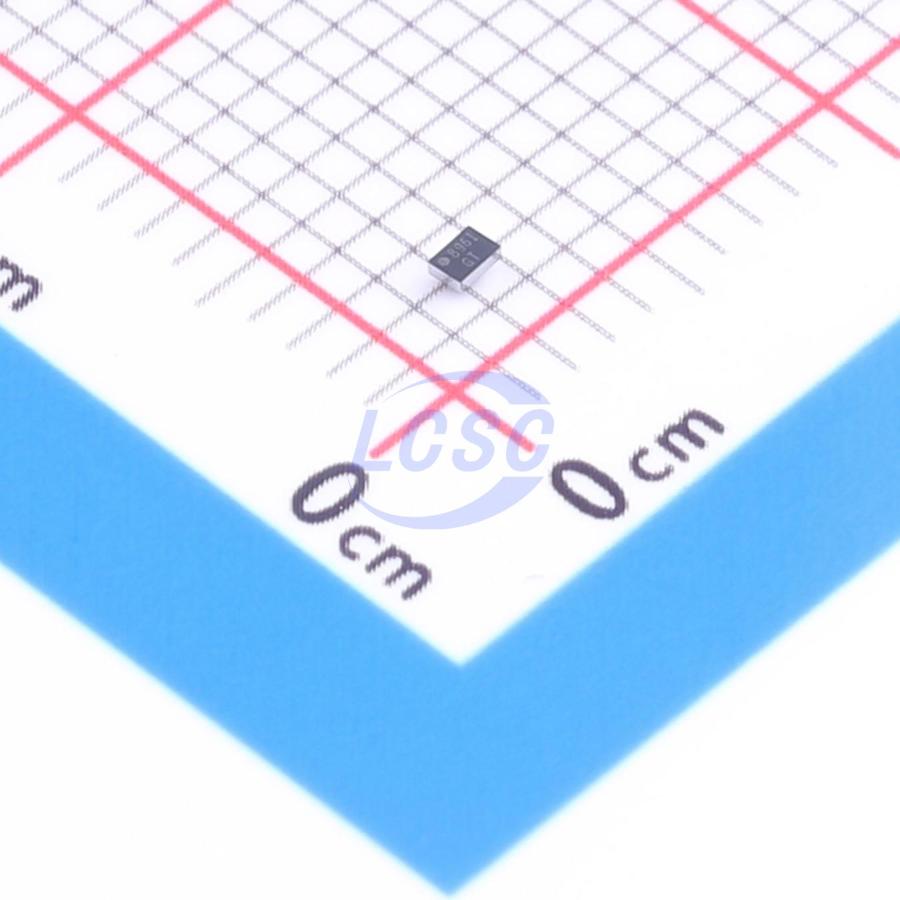

TPS72718YFFR

1.8V Positive Fixed DSBGA-4 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

DSBGA-4ROHS3 CompliantActive

250mA, ultra-low IQ, low-dropout regulator with enable function

Manufacturer: TI
Manufacturer part #: TPS72718YFFR
Store part #: C2868534
Package / case: DSBGA-4
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

128 in stock

#C2868534

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
1+	₹121.04	₹121.04
10+	₹107.14	₹1,071.40
30+	₹93.88	₹2,816.40
100+	₹83.88	₹8,388.00
500+	₹79.98	₹39,990.00
1,000+	₹78.02	₹78,020.00

Quantity (min 1)

1 × ₹121.04

₹121.04

excl. GST

₹142.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS72718YFFR

₹121.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 7.9uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 250mA
Features: Enable control;Built-in soft-start;Input under-voltage protection;Thermal shutdown;Over Current Protection;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The TPS727 family of low-dropout (LDO) linear regulators are ultralow quiescent current LDOs with excellent line and ultra-fast load transient performance and are designed for power-sensitive applications. The LDO output voltage level is preset by the use of innovative factory EEPROM programming. A precision band-gap and error amplifier provides overall 2% accuracy over load, line, and temperature extremes. The TPS727 family is available in 1.5-mm×1.5-mm SON and wafer chipscale (WCSP) packages that make the devices ideal for handheld applications. This family of devices is fully specified over a temperature range of T_J = – -40°C to +125°C.

Applications

Wireless Handsets, Smart Phones, PDAs
MP3 Players and Other Handheld Products
Wireless LAN
Remote Controls
Portable Consumer Products

Key features

Very Low Dropout: 65 mV Typical at 100 mA, 130 mV Typical at 200 mA, 163 mV Typical at 250 mA
2% Accuracy Over Load, Line, Temperature
Ultralow IQ: 7.9 μA
Excellent Load Transient Performance: ±50 mV for 200 mA Loading and Unloading Transient
Available in Fixed-Output Voltages From 0.9 V to 5 V Using Innovative Factory EEPROM Programming
High PSRR: 70 dB at 1 kHz
Stable with a 1.0-μF Ceramic Capacitor
Thermal Shutdown and Overcurrent Protection
Available in 4-Ball, 0.4-mm Pitch Wafer-Level Chip Scale and 1.5-mm×1.5-mm SON Packages
