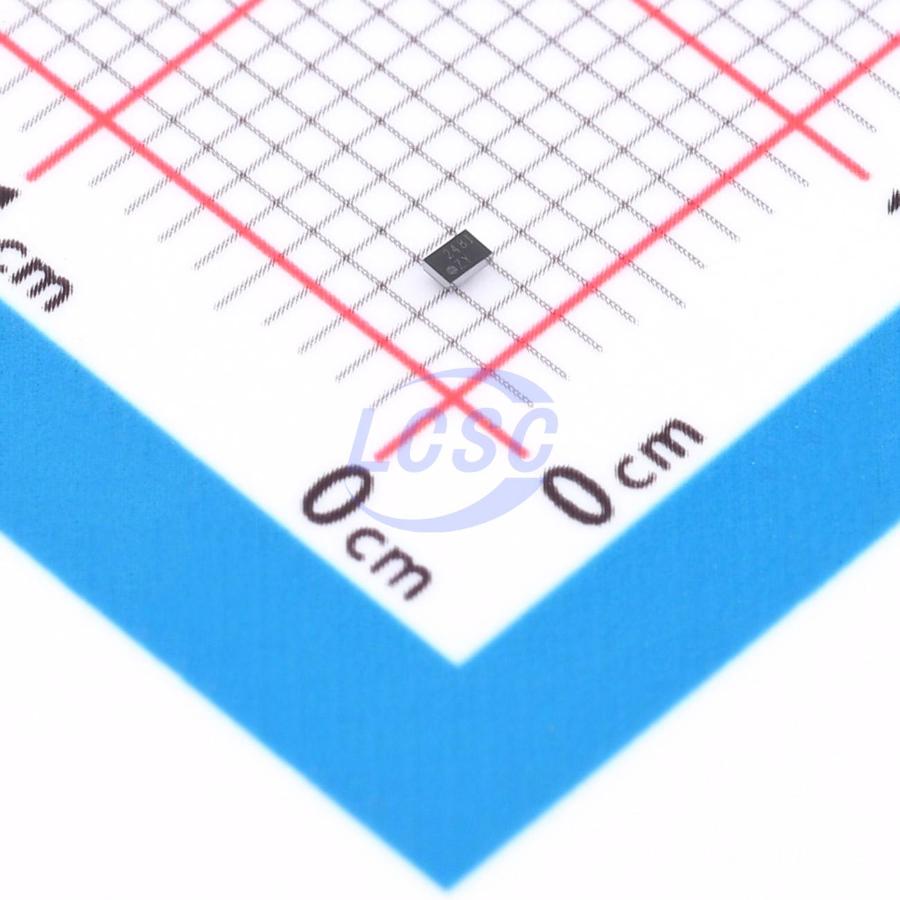

TPS72733YFFR

The TPS727 family of low-dropout (LDO) linear regulators are ultralow quiescent current LDOs with excellent line and ultra-fast load transient performance and are designed for power-sensitive applications. The LDO output voltage level is preset by the use of innovative factory EEPROM programming. A precision band-gap and error amplifier provides overall 2% accuracy over load, line, and temperature extremes. The TPS727 family is available in 1.5-mm×1.5-mm SON and wafer chipscale (WCSP) packages that make the devices ideal for handheld applications. This family of devices is fully specified over a temperature range of T_J = – -40°C to +125°C.

Applications

• Wireless Handsets, Smart Phones, PDAs
• MP3 Players and Other Handheld Products
• Wireless LAN
• Remote Controls
• Portable Consumer Products

Key features

• Very Low Dropout: 65 mV Typical at 100 mA, 130 mV Typical at 200 mA, 163 mV Typical at 250 mA
• 2% Accuracy Over Load, Line, Temperature
• Ultralow IQ: 7.9 μA
• Excellent Load Transient Performance: ±50 mV for 200 mA Loading and Unloading Transient
• Available in Fixed-Output Voltages From 0.9 V to 5 V Using Innovative Factory EEPROM Programming
• High PSRR: 70 dB at 1 kHz
• Stable with a 1.0-μF Ceramic Capacitor
• Thermal Shutdown and Overcurrent Protection
• Available in 4-Ball, 0.4-mm Pitch Wafer-Level Chip Scale and 1.5-mm×1.5-mm SON Packages
