TIDatasheet (PDF)

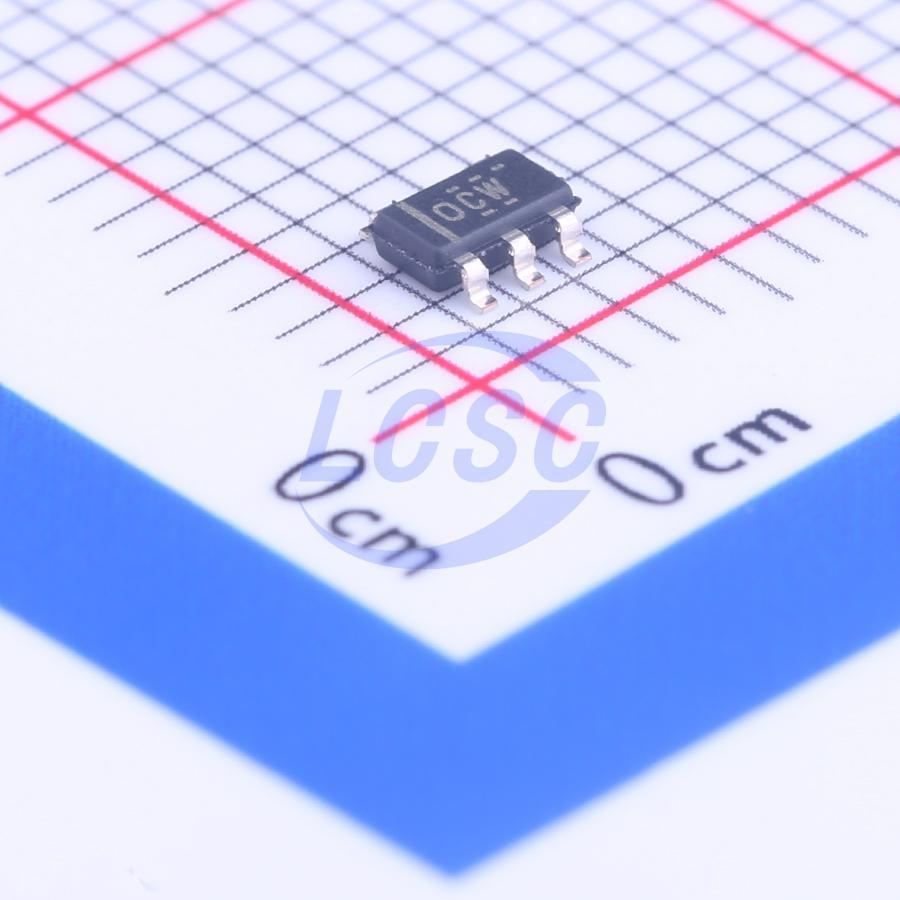

TPS73401DDCR
Linear Voltage Regulator IC Positive Adjustable 1 Output 250mA TSOT-23-5
TSOT-23-5ROHS CompliantActive
250mA, low IQ, low dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS73401DDCR
- Store part #
- C127461
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,874 in stock
#C127461
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.98 | ₹109.98 |
| 10+ | ₹88.64 | ₹886.40 |
| 30+ | ₹78.19 | ₹2,345.70 |
| 100+ | ₹67.51 | ₹6,751.00 |
| 500+ | ₹59.02 | ₹29,510.00 |
| 1,000+ | ₹55.75 | ₹55,750.00 |
1 × ₹109.98
₹109.98
excl. GST
₹129.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS73401DDCR
₹109.98 for 1 + GST
Specifications
- Output Voltage
- 1.184V~6.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+105℃@(Ta)
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 6.5V
- Features
- Enable control;Input under-voltage protection;Thermal shutdown;Over Current Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
The TPS734xx-Q1 low-dropout (LDO), low-power linear regulator family delivers excellent AC performance while maintaining ultra-low ground current. With a typical ground current of only 44μA, the device provides high PSRR, low noise, fast start-up, and excellent line and load transient response. The TPS734xx-Q1 operates stably with ceramic capacitors and utilizes an advanced BiCMOS process to achieve a typical dropout voltage of 125mV at an output voltage of 250mV. A precision voltage reference and feedback loop enable 2% total accuracy across all load, line, variation, and temperature ranges. Rated for an operating temperature range of TA = -40°C to +105°C, the device is available in a thin ThinSOT-23 package — ideal for wireless headsets, printers, and WLAN cards.
Applications
- Many RF and precision analog applications
- Portable applications
Key features
- Automotive-qualified
- 250mA LDO regulator with enable function (EN)
- Low I₀: 44μA
- Multiple output voltage options: fixed 3.3V output, adjustable output from 1.25V to 6.2V
- High PSRR: 60dB at 1kHz
- Ultra-low noise: 28μV RMS
- Fast start-up time: 45μs
- Stable with typical output capacitor of 2.0μF low ESR
- Excellent load/line transient response
- 2% overall accuracy (over load/line/temperature)
- SOT-23 package
