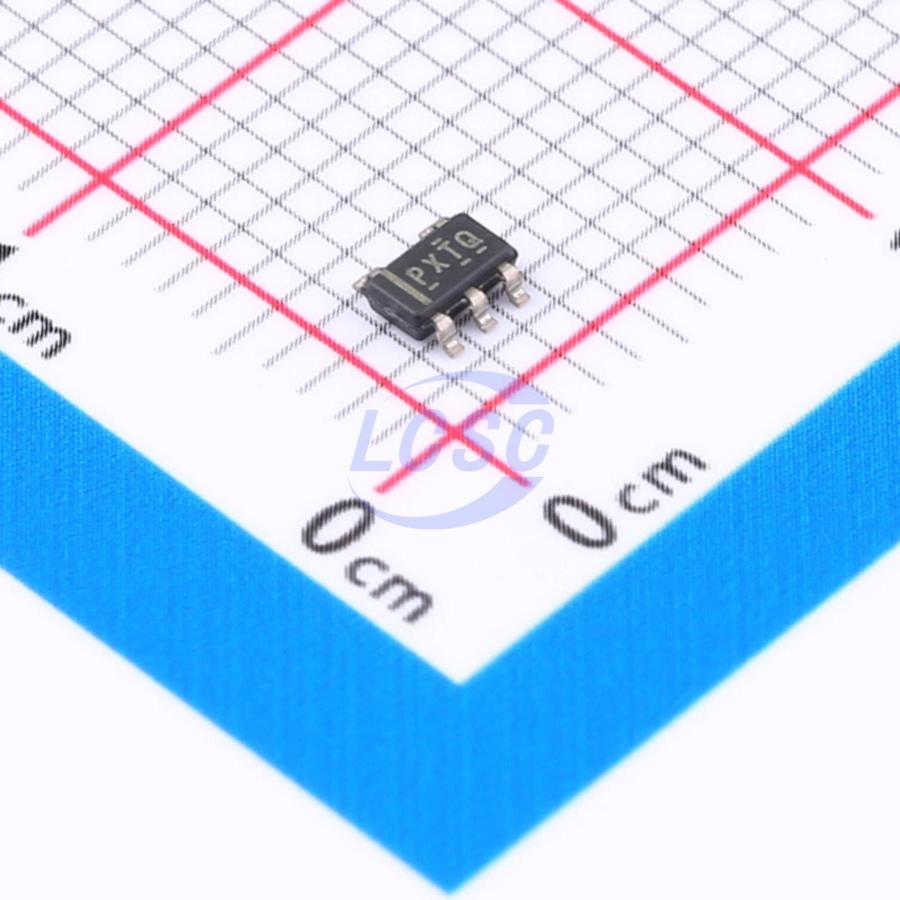

TPS73433TDDCRQ1

The TPS734xx-Q1 family of low-dropout (LDO), low-power linear regulators delivers excellent AC performance while maintaining ultra-low ground current. With a typical ground current of only 44μA, these devices provide high PSRR, low noise, fast startup, and excellent line and load transient response. The TPS734xx-Q1 remains stable with ceramic capacitors and uses an advanced BiCMOS process to achieve a typical dropout voltage of 125mV at an output voltage of 250mV. A precision voltage reference and feedback loop provide 2% total accuracy across full load, line, variation, and temperature ranges. Rated for an operating temperature range of TA = -40°C to +105°C and offered in a compact ThinSOT-23 package, these devices are ideal for wireless headsets, printers, and WLAN cards.

Applications

• Many RF and precision analog applications
• Portable applications

Key features

• Automotive-grade qualified
• 250mA LDO regulator with enable function (EN)
• Low I₀: 44μA
• Multiple output voltage options:
• Fixed 3.3V output
• Adjustable output from 1.25V to 6.2V
• High PSRR: 60dB at 1kHz
• Ultra-low noise: 28μV RMS
• Fast start-up time: 45μs
• Stable with typical output capacitor of 2.0μF low ESR
• Excellent load/line transient response
• 2% overall accuracy (over load/line/temperature)
• Thin SOT-23 package
