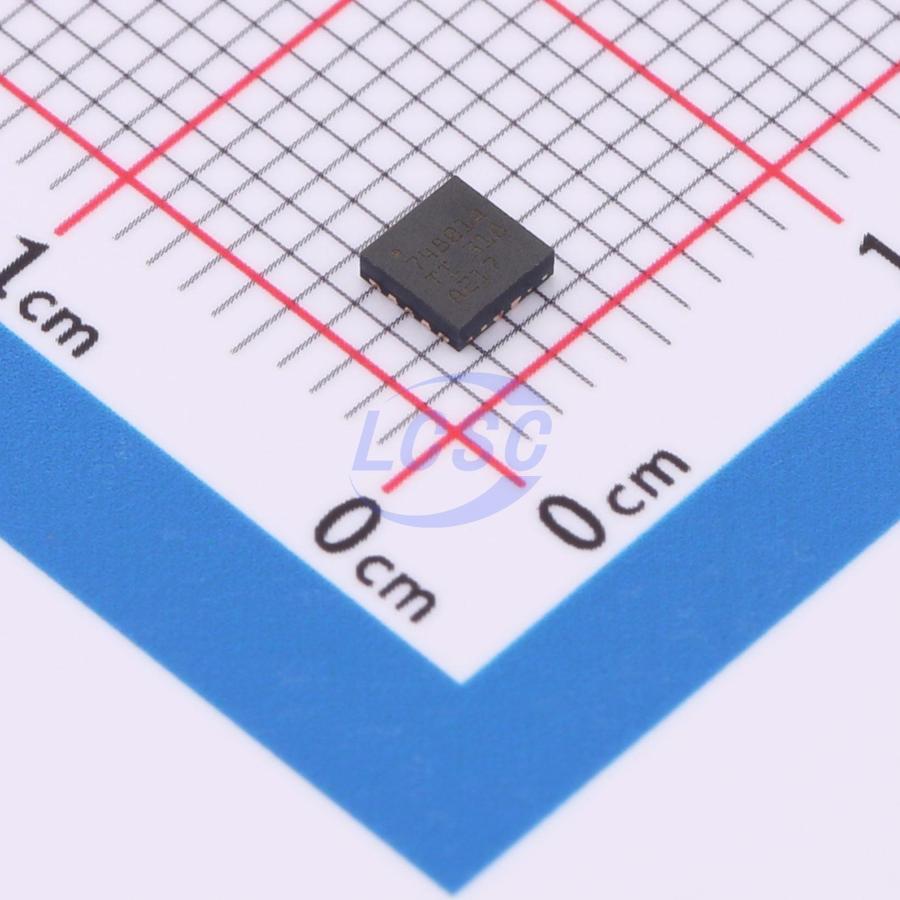

TPS74801AQWDRCRQ1

The TPS748A-Q1 low-dropout (LDO) linear regulator provides an easy-to-use robust power management solution for a wide variety of applications. User-programmable soft-start minimizes stress on the input power source by reducing capacitive inrush current on start-up. The soft-start is monotonic and designed for powering many different types of processors and application-specific integrated circuits (ASICs). The enable input and power-good output allow easy sequencing with external regulators. This complete flexibility enables a solution to be configured that meets the sequencing requirements of field-programmable gate arrays (FPGAs), digital signal processors (DSPs), and other applications with special start-up requirements. A precision reference and error amplifier deliver 2% accuracy over load, line, temperature, and process. The device is stable with any type of capacitor greater than or equal to 2.2 μF, and is fully specified for T_J = -40°C to +150°C. The TPS748A-Q1 is offered in a small, 3–mm × 3–mm, VSON-10 package, yielding a highly compact, total solution size.

Applications

• Telematic control units
• Infotainment and clusters
• Imaging radar

Key features

• AEC-Q100 qualified for automotive applications:
• Temperature grade 1: -40°C ≤ T_A ≤ +125°C HBM ESD classification level 2
• CDM ESD classification level C4A
• Extended junction temperature (T_J) range: -40°C to +150°C
• Input voltage range:
• IN: V_IN + V_DO to 6.0 V BIAS: V_OUT + V_DO(BIAS) to 6.0 V
• V_0UT range: 0.8 V to 3.6 V
• Low dropout: 60 mV typical at 1.5 A, V_BIAS = 5 V
• Power-good (PG) output allows supply monitoring or provides a sequencing signal for other supplies
• 2% accuracy over line, load, and temperature
• Programmable soft-start provides linear voltage start-up
• VBIAS permits low V_IN operation with good transient response
• Stable with any output capacitor ≥ 2.2 μF
• Available in small, 3 mm × 3 mm × 1 mm VSON-10 packages
