TIDatasheet (PDF)

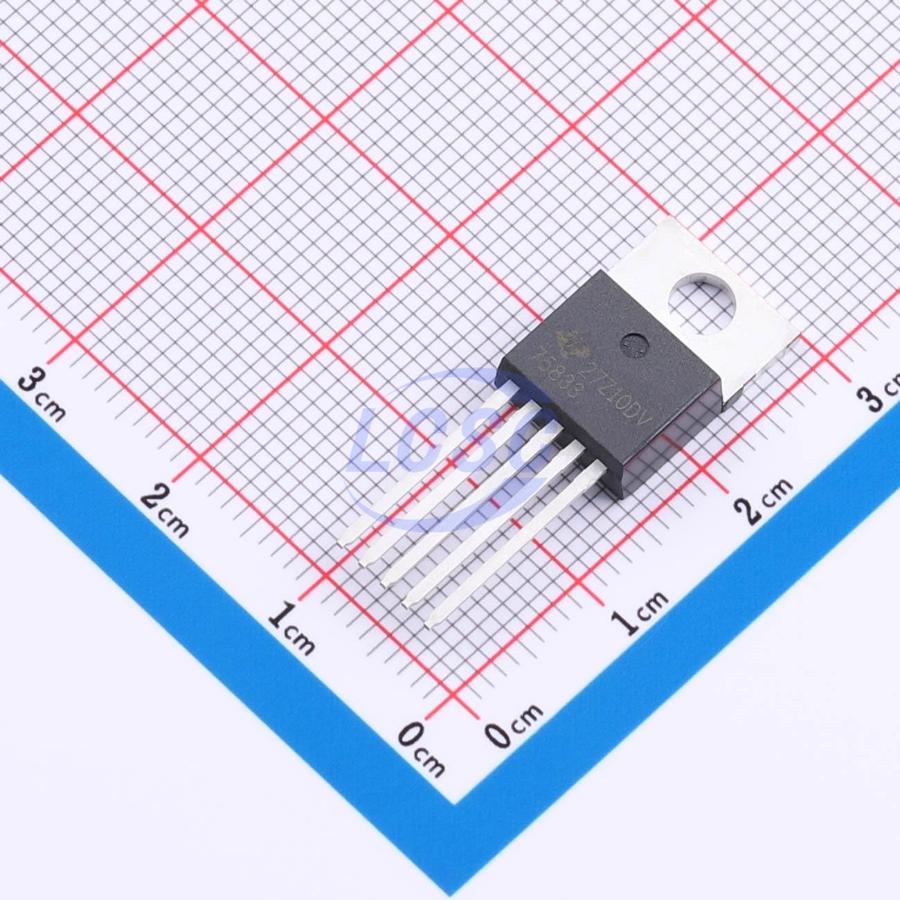

TPS75833KC
3.3V Positive Fixed TO-220-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220-5ROHS3 CompliantActive
3A, ultra-low-dropout regulator with low noise and enable functionality
- Manufacturer
- TI
- Manufacturer part #
- TPS75833KC
- Store part #
- C2865126
- Package / case
- TO-220-5
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2865126
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,161.65 | ₹1,161.65 |
| 10+ | ₹1,134.67 | ₹11,346.70 |
| 30+ | ₹1,116.53 | ₹33,495.90 |
| 100+ | ₹1,098.62 | ₹1,09,862.00 |
1 × ₹1,161.65
₹1,161.65
excl. GST
₹1,370.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
TPS75833KC
₹1,161.65 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 125uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 3A
- Features
- Enable control;Input under-voltage protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.94 g
Overview
The TPS758xx family of 3A low dropout (LDO) regulators contains four fixed voltage option regulators and an adjustable voltage option regulator. These devices are capable of supplying 3A of output current with a dropout of 150mV (TPS75833). Therefore, the device is capable of performing a 3.3V to 2.5V conversion. Quiescent current is 125μA at full load and drops to less than 1μA when the device is disabled. The TPS758xx is designed to have fast transient response for large load current changes. Because the PMOS device behaves as a low - value resistor, the dropout voltage is very low (typically 150mV at an output current of 3A for the TPS75833) and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage - driven device, the quiescent current is very low and independent of output loading (typically 125μA over the full range of output current). These two key specifications yield a significant improvement in operating life for battery - powered systems. The device is enabled when EN (enable) is connected to a high voltage level (>2V). Applying a low voltage level (< 0.7V) to EN shuts down the regulator, reducing the quiescent current to less than 1μA at TJ = +25℃. The TPS758xx is offered in 1.5V, 1.8V, 2.5V, and 3.3V fixed - voltage versions and in an adjustable version (programmable over the range of 1.22V to 5V). Output voltage tolerance is specified as a maximum of 3% over line, load, and temperature ranges. The TPS758xx family is available in a 5 - pin TO - 220 (KC) and TO - 263 (KTT) packages.
Applications
- Battery-powered systems
- Voltage conversion applications
Key features
- 3A Low - Dropout Voltage Regulator Available in 1.5V, 1.8V, 2.5V, and 3.3V Fixed - Output and Adjustable Versions
- Dropout Voltage Typically 150mV at 3A (TPS75833)
- VPEF and Pinout Compatible with MIC29302 (TPS758A01)
- Low 125μA Typical Quiescent Current
- Fast Transient Response
- 3% Tolerance Over Specified Conditions for Fixed - Output Versions
- Available in 5 - Pin TO - 220 and TO - 263 Surface - Mount Packages
- Thermal Shutdown Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS75933KC#C2864254TI · TO-220-5 | TI | TO-220-5 | 12 | ₹1,767.18 · 12 in stock | View |
 | TPS75533KC#C2869623TI · TO-220-5 | TI | TO-220-5 | 11 | ₹2,297.26 · 11 in stock | View |
 | LT1528CT#PBF#C664177ADI · TO-220-5 | ADI | TO-220-5 | 10 | ₹2,695.00 · 10 in stock | View |
 | MIC39301T-3.3#C356708HGSEMI · TO-220-5 | HGSEMI | TO-220-5 | 958 | ₹116.04 · 958 in stock | View |
| TPS75733KC#C2863763TI · TO-220-5 | TI | TO-220-5 | On request | ₹1,395.79 · 0 in stock | View | |
