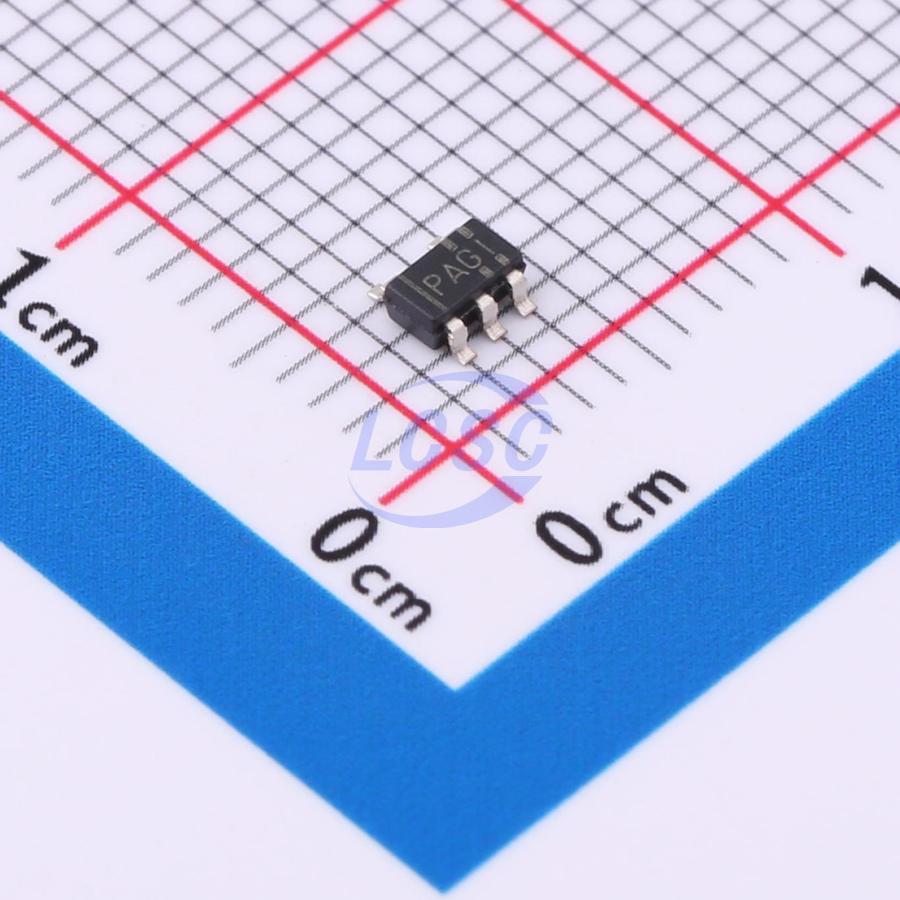

TPS76030DBVR
3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
50mA, 16V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS76030DBVR
- Store part #
- C2868927
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C2868927
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹244.13 | ₹244.13 |
| 10+ | ₹207.06 | ₹2,070.60 |
| 30+ | ₹184.08 | ₹5,522.40 |
| 100+ | ₹160.45 | ₹16,045.00 |
| 500+ | ₹149.60 | ₹74,800.00 |
| 1,000+ | ₹145.05 | ₹1,45,050.00 |
1 × ₹244.13
₹244.13
excl. GST
₹288.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS76030DBVR
₹244.13 for 1 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.2mA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 50mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.019 g
Overview
The TPS760xx is a 50 mA, low dropout (LDO) voltage regulator designed specifically for battery-powered applications. A proprietary BiCMOS fabrication process allows the TPS760xx to provide outstanding performance in all specifications critical to battery-powered operation. The TPS760xx is available in a space-saving SOT–23 package and operates over a junction temperature range of -40°C to 125°C.
Key features
- Thermal Protection
- Less than 1 μA Quiescent Current in Shutdown
- -40°C to 125°C Operating Junction Temperature Range
- 5-Pin SOT-23 Package
- ESD Protection Verified to 1.5 KV Human Body Model (HBM) per MIL-STD-883C
