TIDatasheet (PDF)

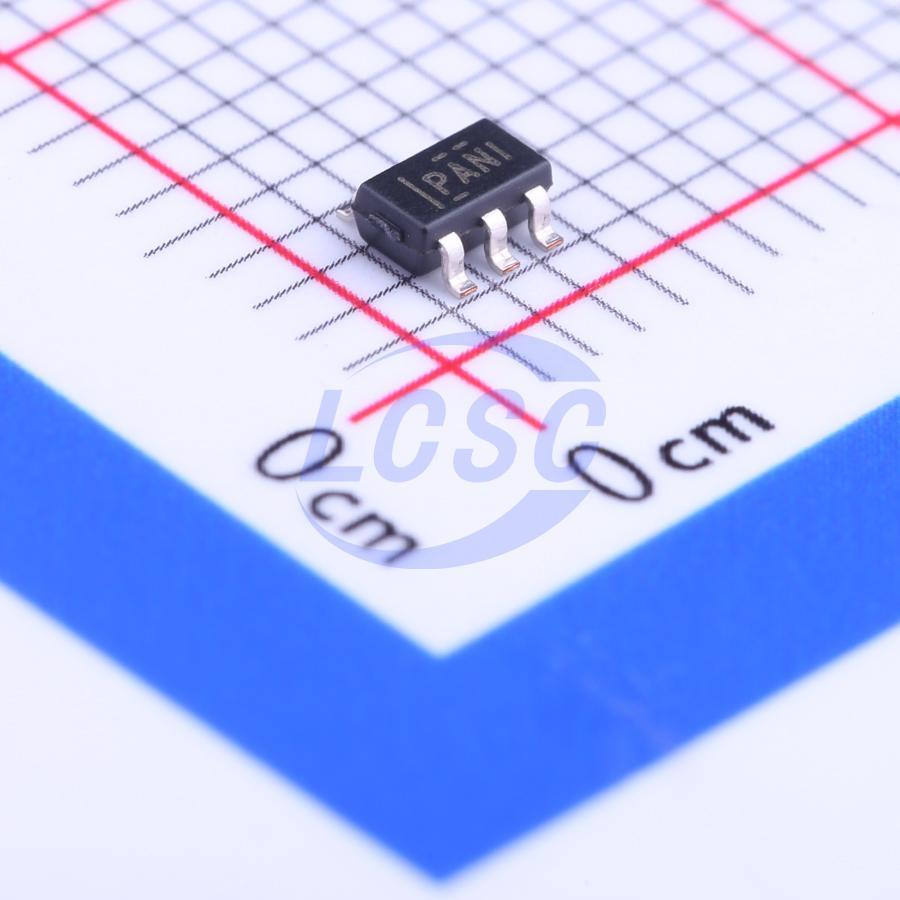

TPS76050DBVR
5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5ROHS3 CompliantActive
50mA, 16V, low-dropout regulator with enable function
- Manufacturer
- TI
- Manufacturer part #
- TPS76050DBVR
- Store part #
- C130218
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
239 in stock
#C130218
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹271.28 | ₹271.28 |
| 10+ | ₹227.62 | ₹2,276.20 |
| 30+ | ₹200.25 | ₹6,007.50 |
| 100+ | ₹172.45 | ₹17,245.00 |
| 500+ | ₹159.65 | ₹79,825.00 |
| 1,000+ | ₹154.21 | ₹1,54,210.00 |
1 × ₹271.28
₹271.28
excl. GST
₹320.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS76050DBVR
₹271.28 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1.1mA
- Output Configuration
- Positive
- Operating Voltage
- 16V
- Output Current
- 50mA
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TPS760xx is a 50 mA, low dropout (LDO) voltage regulator designed specifically for battery-powered applications. A proprietary BiCMOS fabrication process allows the TPS760xx to provide outstanding performance in all specifications critical to battery-powered operation. The TPS760xx is available in a space-saving SOT–23 package and operates over a junction temperature range of -40℃ to 125℃.
Key features
- Thermal Protection
- Less Than 1 μA Quiescent Current in Shutdown
- -40°C to 125°C Operating Junction Temperature Range
- 5-Pin SOT-23 Package
- ESD Protection Verified to 1.5 kV Human Body Model (HBM) per MIL-STD-883C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD2980ABM50TR#C411396ST · SOT-23-5L | ST | SOT-23-5L | 1,000 | ₹40.30 · 1,000 in stock | View |
 | LP2980AIM5X-5.0/NOPB#C129996TI · SOT-23-5 | TI | SOT-23-5 | 14,809 | ₹39.97 · 14,809 in stock | View |
 | TPS76150DBVR#C9837TI · SOT-23-5 | TI | SOT-23-5 | 4 | ₹200.20 · 4 in stock | View |
 | TPME6214C50M5G#C22435163TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,945 | ₹9.64 · 5,945 in stock | View |
 | TPS70950QDBVRQ1#C485909TI · SOT-23-5 | TI | SOT-23-5 | 5,618 | ₹141.18 · 5,618 in stock | View |
