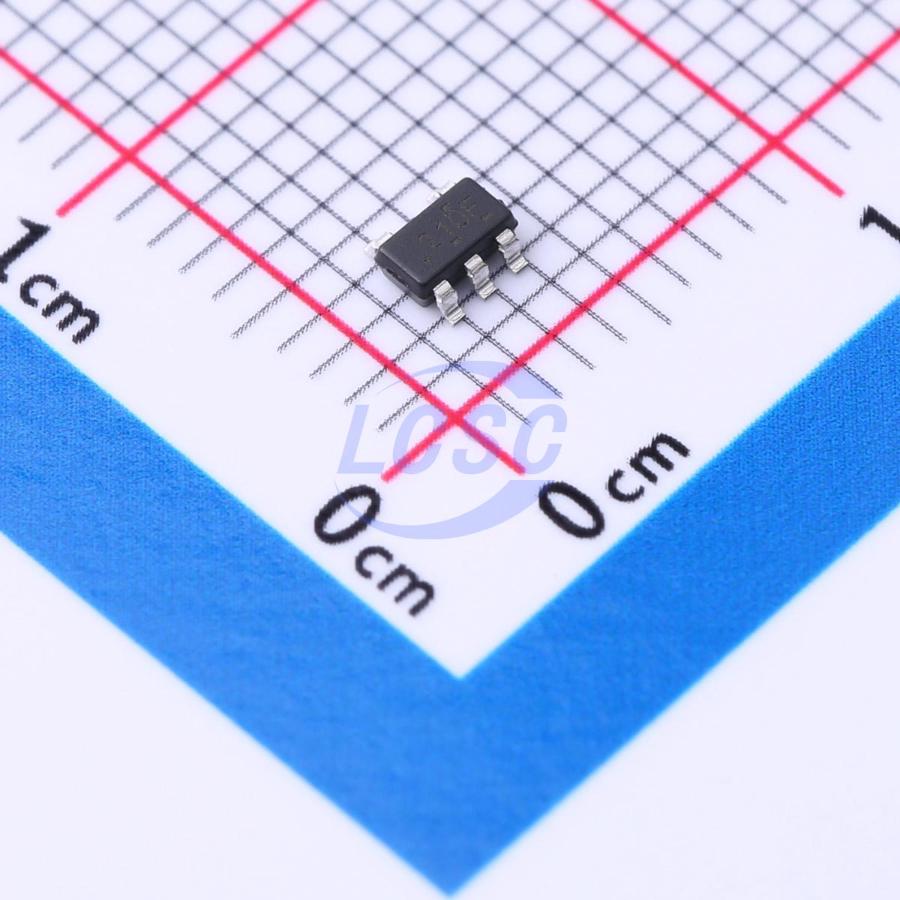

TPS7A0225PDBVR
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-5L
SOT-23-5LROHS3 CompliantActive
200mA, nanopower-IQ (25nA), low dropout (LDO) regulator with enable functionality
- Manufacturer
- TI
- Manufacturer part #
- TPS7A0225PDBVR
- Store part #
- C1693617
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,791 in stock
#C1693617
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.26 | ₹122.26 |
| 10+ | ₹103.33 | ₹1,033.30 |
| 30+ | ₹90.06 | ₹2,701.80 |
| 100+ | ₹79.18 | ₹7,918.00 |
| 500+ | ₹75.70 | ₹37,850.00 |
| 1,000+ | ₹73.53 | ₹73,530.00 |
1 × ₹122.26
₹122.26
excl. GST
₹144.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A0225PDBVR
₹122.26 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25nA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 6V
- Features
- Enable control;Output discharge;Over Current Protection;Input under-voltage protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.027 g
Overview
The TPS7A02 is an ultra-small, ultra-low quiescent current LDO linear regulator capable of supplying 200mA with excellent transient performance. The TPS7A02 features an ultra-low IQ (25nA), designed for applications where ultra-low quiescent current is a critical parameter. The device maintains low IQ consumption even in dropout mode, further extending battery life. In shutdown or disabled mode, the device draws an ultra-low IQ of 3nA, helping to extend battery shelf life. The TPS7A02 output voltage range is 0.8V to 5.0V in 50mV steps to support lower modern MCU core voltages.
Applications
- Wearable electronics
- Thermostats, smoke and heat detectors
- Gas, heat and water meters
- Blood glucose monitors and pulse oximeters
- Residential circuit breakers and fault indicators
- Building security and video surveillance devices
- EPOS card readers
Key features
- Ultra-low IQ: 25nA (typical), shutdown IQ: 3nA (typical) even in dropout
- Excellent transient response (1mA to 50mA): settling time < 10μs, 100mV undershoot
- Input voltage range: 1.5V to 6.0V
- Output voltage range: 0.8V to 5.0V (fixed)
- Output accuracy: 1.5% over operating temperature range
- Smart enable pin pull-down
- Ultra-low dropout: 270mV (max) at 200mA (VOUT = 3.3V)
- Stable with 1μF or larger capacitors
- Package: 1.0mm×1.0mm×2SON, SOT-23-5, 0.64mm×0.64mm DSBGA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV75725PDBVR-MS#C54539936MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,935 | ₹38.79 · 2,935 in stock | View |
 | AP2127K-2.5TRG1-MS#C30197537MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 1,940 | ₹13.73 · 1,940 in stock | View |
 | TPL710F25-5TR#C383898413PEAK · SOT-23-5 | 3PEAK | SOT-23-5 | On request | ₹17.70 · 0 in stock | View |
 | LDS3985M25R#C2971139ST · SOT-23-5 | ST | SOT-23-5 | 2 | ₹270.92 · 2 in stock | View |
 | LDK220M25R#C5267980ST · SOT-23-5L | ST | SOT-23-5L | 25 | ₹67.82 · 25 in stock | View |
