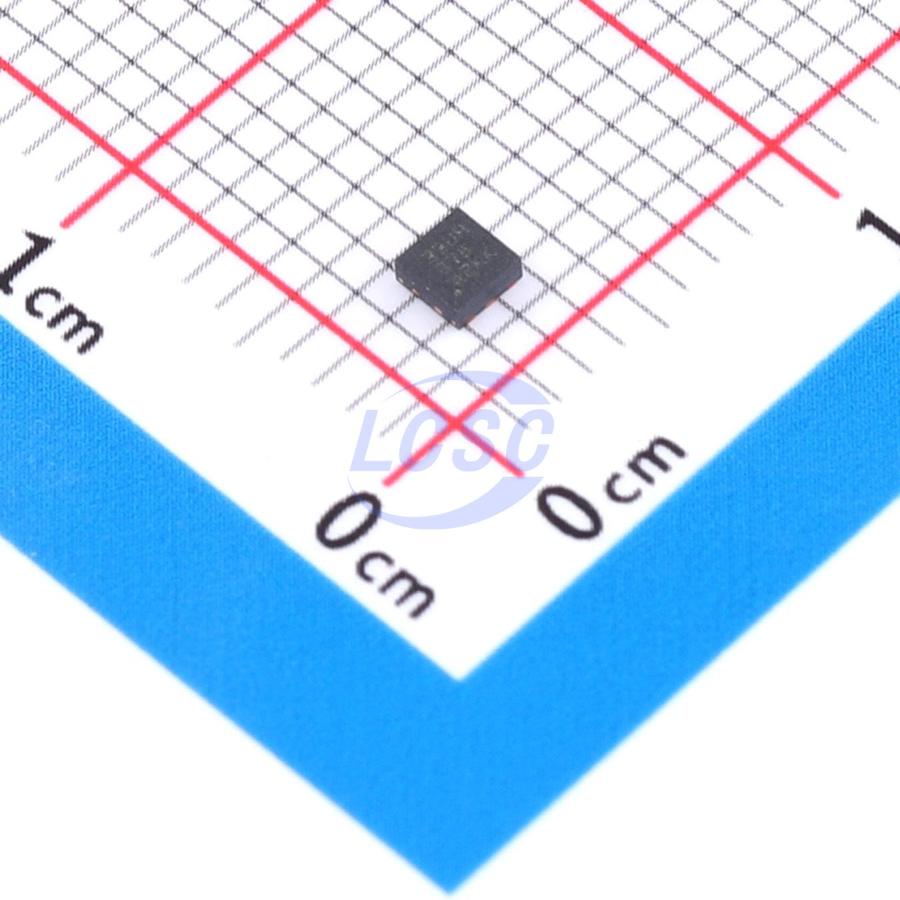

TPS7A1412PDRVR

TPS7A14 is a compact ultra-low dropout regulator (LDO) with excellent transient response. The device delivers 1A of output current with outstanding AC performance (load and line transient response). The input voltage range is 0.7V to 2.2V, and the output range is 0.5V to 2.0V, with up to 1% high accuracy over load, line, and temperature variations. The main power path runs through the IN pin, which can be connected to a supply as low as 50mV above the output voltage. All electrical characteristics — including excellent output voltage tolerance, transient response, and power supply rejection ratio — are specified at an input voltage 100mV above the output voltage, enabling high practical efficiency. The regulator supports very low input voltages by utilizing a higher externally supplied VBIAS rail to power the LDO's internal circuitry. For example, the IN pin supply can be the output of a high-efficiency DC/DC buck regulator, while the BIAS pin supply can be a rechargeable battery. The TPS7A14 features an active pull-down circuit that rapidly discharges the output when disabled and provides a known startup state. The TPS7A14 is available in a 2mm × 2mm, 6-pin WSON package and an ultra-compact 0.71mm × 1.16mm, 6-bump WCSP package.

Applications

• Camera modules
• Wireless headphones and earbuds
• Smartwatches and fitness trackers
• Smartphones and tablets
• Portable medical devices
• Solid-state drives (SSD)

Key features

• Ultra-low input voltage range: 0.7V to 2.2V
• High efficiency:
• Dropout voltage at 1A: 70mV (maximum, YBK)
• Specified at VIN = VOUT + 100mV
• Excellent load transient response:
• 20mV for ILOAD from 3mA to 600mA within 20μs
• Accuracy over load, line, and temperature range: 1%
• High PSRR:
• 80dB at 1kHz (VOUT = 0.8V, IOUT = 500mA)
• Fixed output voltage options:
• 0.5V to 2.0V (in 25mV steps)
• VBIAS range: 2.2V to 5.5V
• Package:
• 6-pin DSBGA: 0.71mm × 1.16mm
• 6-pin WSON: 2mm × 2mm
• Active output discharge
