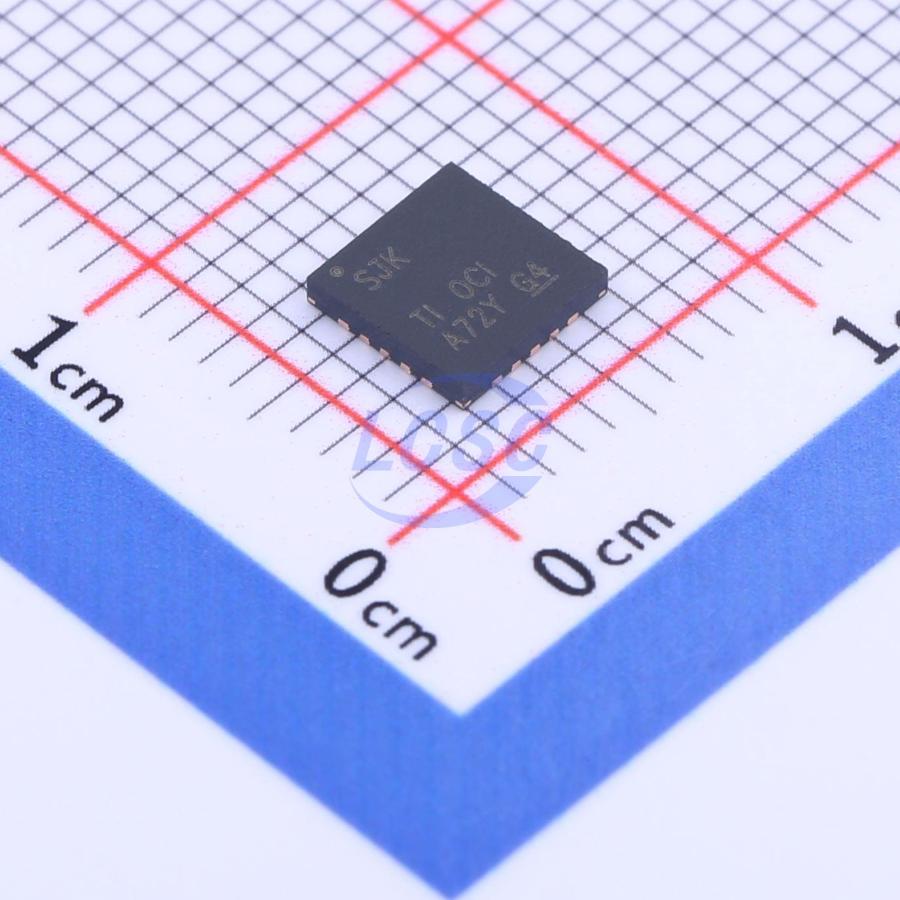

TPS7A7200QRGWREP
Positive VQFN-20-EP(5x5) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
VQFN-20-EP(5x5)ROHS3 CompliantActive
Enhanced product, 2A, fast-transient response low-dropout voltage regular
- Manufacturer
- TI
- Manufacturer part #
- TPS7A7200QRGWREP
- Store part #
- C2863556
- Package / case
- VQFN-20-EP(5x5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C2863556
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹811.55 | ₹811.55 |
| 10+ | ₹698.61 | ₹6,986.10 |
| 30+ | ₹629.93 | ₹18,897.90 |
| 100+ | ₹572.28 | ₹57,228.00 |
1 × ₹811.55
₹811.55
excl. GST
₹957.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS7A7200QRGWREP
₹811.55 for 1 + GST
Specifications
- Output Voltage
- 900mV~3.5V;900mV~5V
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Positive
- Operating Voltage
- 6.5V
- Output Current
- 2A
- Output Type
- Fixed;Adjustable
- Features
- Adjustable soft-start;Operating status indication;Enable control;Input under-voltage protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
The TPS7A7200 low-dropout (LDO) regulator is designed for applications requiring ultra-low dropout (180mV at 2A), with input voltages ranging from 1.5V to 6.5V. The TPS7A7200 offers an innovative, user-configurable output voltage setting range of 0.9V to 3.5V, eliminating the need for external resistors and removing any associated errors. The TPS7A7200 features an ultrafast load transient response, stable operation with ceramic output capacitors, and better than 2% accuracy over line, load, and temperature. A soft-start pin allows applications to reduce inrush current to the load. In addition, an open-drain power-good signal enables power rail sequencing. The TPS77200 is offered in a 5mm×5mm, 20-pin QFN package.
Applications
- Wireless infrastructure: SerDes, FPGA, DSP
- RF components: VCO, ADC, DAC, LVDS
- Set-top boxes: amplifiers, ADC, DAC, FPGA, DSP
- Wireless LAN, Bluetooth
- PC and printers
- Audio and video
Key features
- Low dropout: 180mV at 2A
- V<sub>IN</sub> range: 1.5V to 6.5V configurable fixed
- Range: 0.9V to 3.5V adjustable
- V<sub>OUT</sub> range: 0.9V to 5.0V
- Excellent load and line transient response, stable with ceramic output capacitors
- ±1.5% accuracy over line, load, and temperature
- Programmable soft-start
- Power Good (PG) output
- 5mm×5mm QFN-20 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS7A7200RGWT#C2862091TI · VQFN-20-EP(5x5) | TI | VQFN-20-EP(5x5) | 187 | ₹395.29 · 187 in stock | View |
