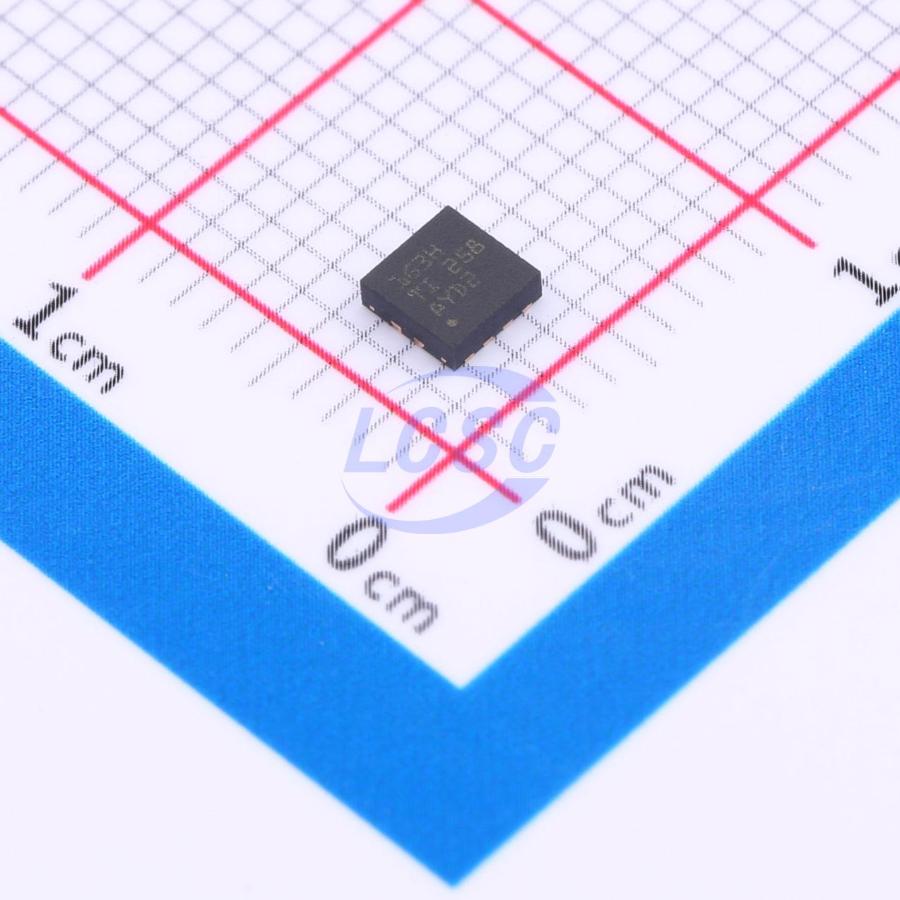

TPS7A8033DRBR

The TPS7A80 series low-dropout linear regulators (LDO) deliver ultra-high power supply ripple rejection (PSRR) at the output. This LDO series utilizes an advanced BiCMOS process and PMOSFET pass device to achieve ultra-low noise, excellent transient response, and superior PSRR performance. The TPS7A80 series remains stable when operating with a 4.7μF ceramic output capacitor, and employs a precision voltage reference and feedback loop to achieve 3% accuracy under worst-case conditions across all load, line, process, and temperature variations. This series is rated for an operating junction temperature range of TJ = -40℃ to +125℃, and is available in a 3mm×3mm VSON-8 package with an exposed thermal pad.

Applications

• Telecom Infrastructure
• Audio
• High-Speed Interface (IVF) (PLL/VCO)

Key features

• Low-dropout 1A regulator with enable function
• Adjustable output voltage: 0.8V to 6V
• Fixed output voltage: 0.8V to 6V
• Wide-bandwidth high PSRR: 63dB at 1kHz, 57dB at 100kHz, 38dB at 1MHz
• Low noise: (14 × output voltage) μV_RMS typical (100Hz to 100kHz)
• Stable with 4.7μF ceramic capacitor
• Excellent load/line transient response
• Overall accuracy 3% (over load/line/temperature range)
• Overcurrent and overtemperature protection
• Ultra-low dropout: 170mV typical at 1A
• 3mm x 3mm VSON-8 DRB package
