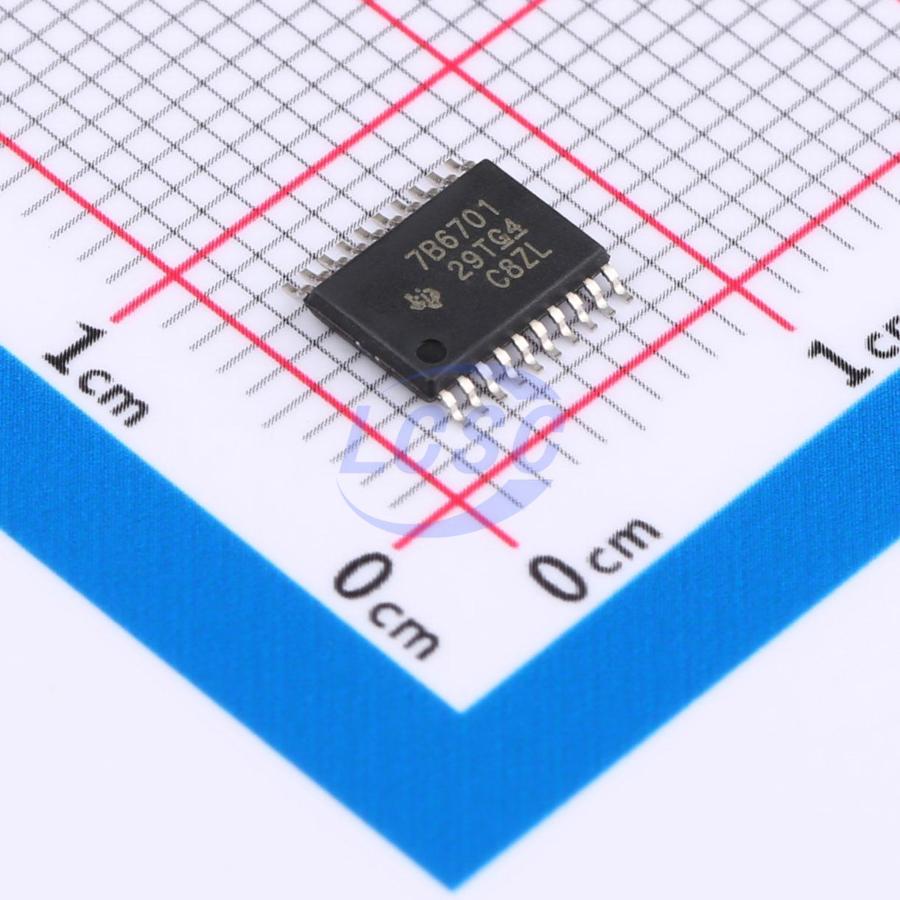

TPS7B6701QPWPRQ1
Linear Voltage Regulator IC Positive Adjustable 1 Output 450mA HTSSOP-20-EP
HTSSOP-20-EPROHS3 CompliantActive
Automotive 450mA, battery-operated (40V), high PSRR, low IQ, low dropout voltage regulator with power good indication
- Manufacturer
- TI
- Manufacturer part #
- TPS7B6701QPWPRQ1
- Store part #
- C2863795
- Package / case
- HTSSOP-20-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C2863795
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.24 | ₹208.24 |
| 10+ | ₹171.28 | ₹1,712.80 |
| 30+ | ₹150.93 | ₹4,527.90 |
| 100+ | ₹127.96 | ₹12,796.00 |
| 500+ | ₹117.91 | ₹58,955.00 |
| 1,000+ | ₹113.09 | ₹1,13,090.00 |
1 × ₹208.24
₹208.24
excl. GST
₹245.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPS7B6701QPWPRQ1
₹208.24 for 1 + GST
Specifications
- Output Voltage
- 1.5V~18V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Output Current
- 450mA
- Operating Voltage
- 40V
- Output Type
- Adjustable
- Features
- Enable control;Built-in soft-start;Reset function;Input under-voltage protection;Thermal shutdown;Short Circuit Protection;Over Current Protection;Operating status indication
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.174 g
Overview
The TPS7B6701-Q1, TPS7B6733-Q1, and TPS7B6750-Q1 devices (TPS7B67xx-Q1) are low-dropout linear regulators designed for operation with input voltage V_IN up to 40V. These devices feature a quiescent current of only 15μA at light loads, significantly extending automotive battery life, and are capable of driving loads up to 450mA. The TPS7B67xx-Q1 family integrates short-circuit and overcurrent protection. A reset delay and power-good signal are asserted at power-up to indicate that the output voltage is stable and within the regulation range. An external capacitor sets this delay. The enable function uses an MCU I/O port to activate and deactivate the device. The device operates over a temperature range of -40℃ to 125℃.
Applications
- Automotive infotainment systems
- Tuner power supply
- Body control module always-on battery applications
- Gateway applications
- Remote keyless entry systems
- Engine immobilizer systems
Key features
- Automotive-grade, AEC-Q100 qualified
- Device temperature grade 1: ambient operating temperature range -40℃ to 125℃
- Human Body Model (HBM) ESD classification level H2
- Device CDM ESD classification level C3B
- 4V to 40V wide V_IN input voltage range, transient voltage up to 45V
- Maximum output current 450mA
- Low quiescent current (Iq)
