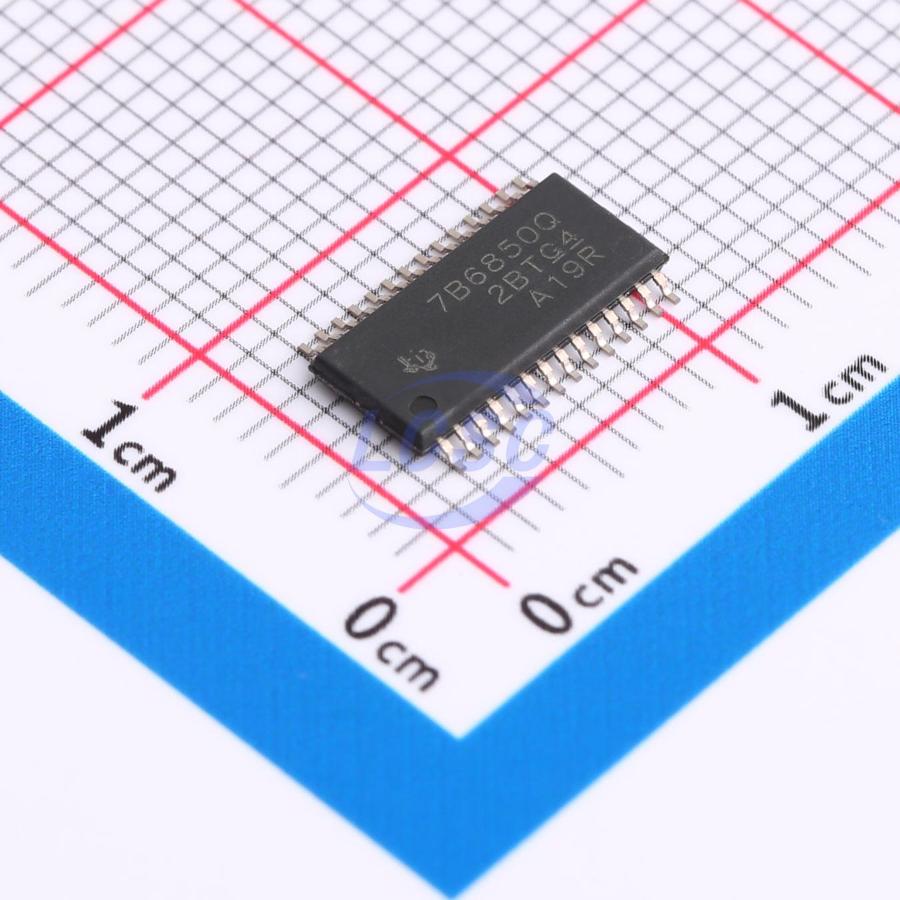

TPS7B6850QPWPRQ1

5V Positive Fixed HTSSOP-28 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

HTSSOP-28ROHS3 CompliantActive

Automotive-class 500mA, battery-operated (40V), high PSRR, low IQ, low-dropout regulator with watchdog timer

Manufacturer: TI
Manufacturer part #: TPS7B6850QPWPRQ1
Store part #: C3029629
Package / case: HTSSOP-28
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,647 in stock

#C3029629

Stock & price checked 20 days ago

Quantity	Unit price	Pack price
1+	₹154.22	₹154.22
10+	₹138.82	₹1,388.20
30+	₹130.37	₹3,911.10
100+	₹120.82	₹12,082.00
500+	₹116.70	₹58,350.00
1,000+	₹114.74	₹1,14,740.00

Quantity (min 1)

1 × ₹154.22

₹154.22

excl. GST

₹181.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPS7B6850QPWPRQ1

₹154.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+150℃@(Tj)
Supply Current (Iq): 42uA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 40V
Features: Enable control;Operating status indication;Watchdog timer;Input under-voltage protection;Over Current Protection;Thermal shutdown;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.278 g

Overview

In automotive microcontroller or microprocessor power supply applications, a watchdog is used to monitor the operating state of the microcontroller and prevent software runaway. In reliable systems, the watchdog must be independent of the microcontroller. The TPS7B68-Q1 is a 500mA watchdog LDO designed for operating voltages up to 40V, with a typical quiescent current of only 19μA under light-load conditions. The device integrates a programmable feature for selecting window or standard watchdog mode, and uses external resistors to set the watchdog timeout period (within 10% accuracy). The PG pin on the TPS7B68-Q1 indicates when the output voltage has stabilized and is within the regulated range. The power-good delay period and power-good threshold are adjustable via external components. In addition, the device features short-circuit and overcurrent protection. This combination of features makes the device highly flexible for powering microcontrollers in automotive applications.

Applications

Automotive MCU power supply
Body Control Module (BCM)
Body comfort module
EV and HEV Battery Management System (BMS)
Electronic gear shifter
Transmission Control Unit (TCU)
Electric Power Steering (EPS)

Key features

Automotive electronics applications, AEC-Q100 compliant
Device temperature grade 1: -40°C to +125°C ambient operating temperature range
Device HBM ESD classification level 2
Device CDM ESD classification level C4B
Maximum output current: 500mA
4V to 40V wide VIN input voltage range, transient voltage up to 45V
Fixed output voltages of 3.3V and 5V, maximum dropout voltage: 600mV (at 500mA)
Low quiescent current (IQ): <4μA when EN is low (shutdown mode), typical 19μA under light load (WD_EN high) with watchdog disabled
Configurable for window watchdog and standard watchdog
Switching window ratio configurable as 1:1 or 8:1
Fully adjustable watchdog period (10ms to 500ms)
10% accuracy watchdog period
