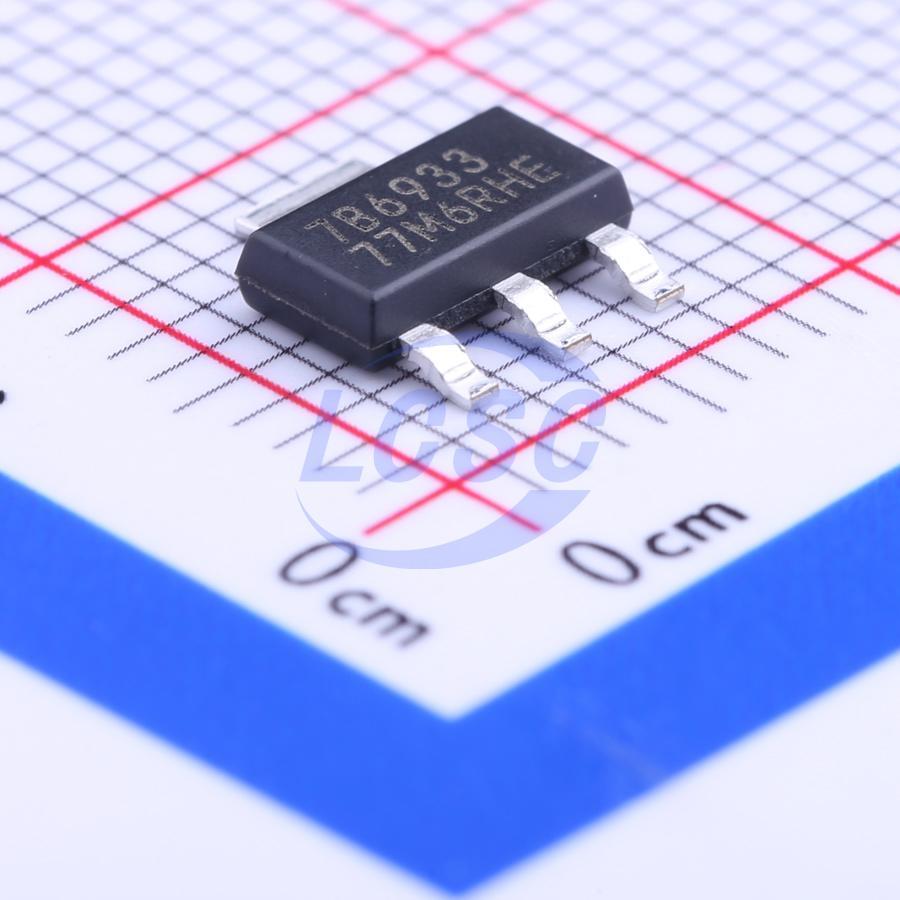

TPS7B6933QDCYRQ1

3.3V Positive Fixed SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-223ROHS3 CompliantActive

150mA, battery-operated (40V), high PSRR, low IQ, low-dropout linear regulator

Manufacturer: TI
Manufacturer part #: TPS7B6933QDCYRQ1
Store part #: C108471
Package / case: SOT-223
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

627 in stock

#C108471

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹135.30	₹135.30
10+	₹109.43	₹1,094.30
30+	₹96.37	₹2,891.10
100+	₹83.53	₹8,353.00
500+	₹67.66	₹33,830.00
1,000+	₹63.74	₹63,740.00

Quantity (min 1)

1 × ₹135.30

₹135.30

excl. GST

₹159.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS7B6933QDCYRQ1

₹135.30 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 25uA
Output Configuration: Positive
Operating Voltage: 40V
Output Current: 150mA
Features: Built-in soft-start;Input under-voltage protection;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.288 g

Overview

The TPS7B69xx-Q1 device is a low-dropout linear regulator designed for up to 40-V V₁ operations. With only 15-μA (typical) quiescent current at light load, the device is suitable for standby microcontrol-unit systems especially in automotive applications. The devices feature an integrated short-circuit and overcurrent protection. The TPS7B69xx-Q1 device operates over a -40°C to 125°C temperature range. Because of these features, the TPS7B6925-Q1, TPS7B6933-Q1, and TPS7B6950-Q1 devices are well suited in power supplies for various automotive applications.

Applications

Automotive
Infotainment Systems With Sleep Mode
Always-On Battery Applications
Door Modules
Remote Keyless-Entry Systems
Immobilizers

Key features

Qualified for Automotive Applications
AEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range, Device HBM ESD Classification Level 2, Device CDM ESD Classification Level C4B
Maximum Output Current: 150 mA
Low Quiescent Current (I_Q): 15 μA Typical at Light Loads, 25 μA Maximum Under Full Temperature
450 mV Typical Low Dropout Voltage at 100 mA Load Current

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BD733L2FP3-CE2#C2981755ROHM · SOT-223-4	ROHM	SOT-223-4	1,366	₹72.28 · 1,366 in stock	View
TPS7B8433QDCYRQ1#C2864767TI · SOT-223-4	TI	SOT-223-4	1	₹136.89 · 1 in stock	View
NCV8664CST33T3G#C604074onsemi · SOT-223	onsemi	SOT-223	63	₹218.40 · 63 in stock	View
TLE42744GSV33#C123093Infineon · SOT-223-4	Infineon	SOT-223-4	6,495	₹158.28 · 6,495 in stock	View
NCV4274AST33T3G#C457654onsemi · SOT-223	onsemi	SOT-223	1	₹180.83 · 1 in stock	View
