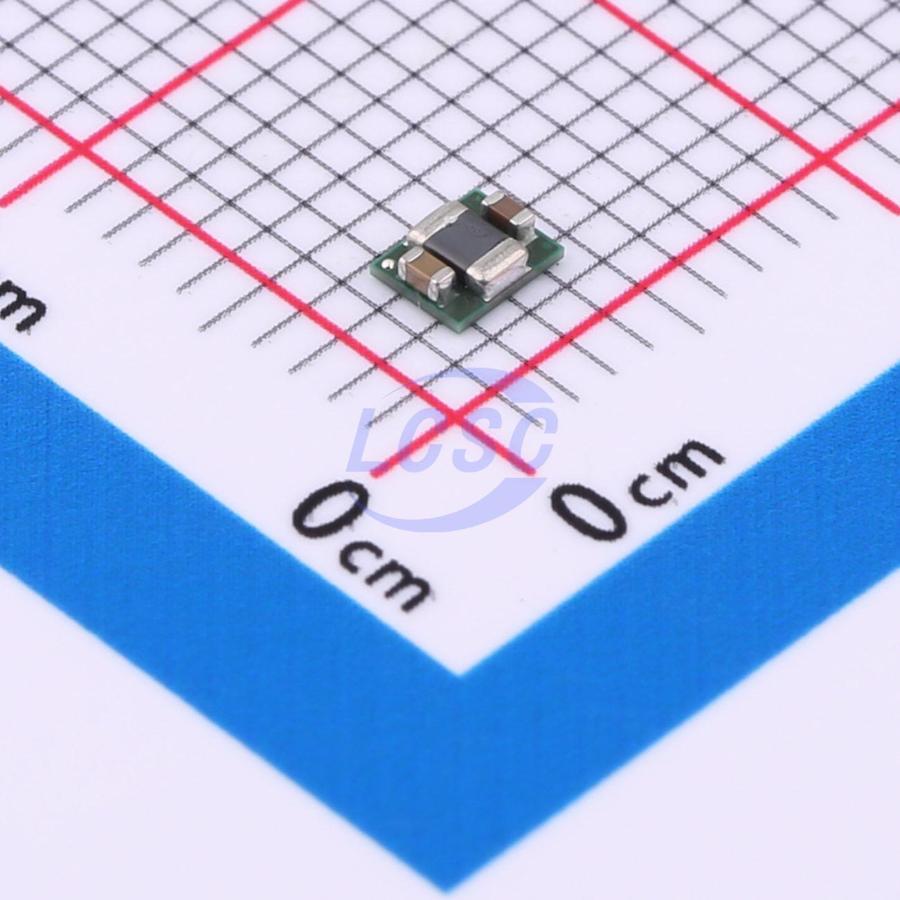

TPS8268120SIPR

The TPS8268x device is a complete DC/DC stepdown power supply optimized for small solution size. Included in the package are the switching regulator, inductor and input/output capacitors. Integration of all passive components enables a tiny solution size of only 6.7mm². The TPS8268x is based on a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications in which high load currents in a very small solution size and height are required. The TPS8268x is optimized for high efficiency and low output voltage ripple and supports up to 1600-mA load current. With an input voltage range of 2.5-V to 5.5-V, the device supports applications powered by Li-Ion batteries as well as 5-V and 3.3-V rails. The TPS8268x operates at a 5.5-MHz switching frequency with spread spectrum capability. For noise-sensitive applications, this provides a lower noise regulated output, as well as low noise at the input. The device supports a fixed output voltage, requiring no external feedback network. These features, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency with the same size. The TPS8268x is packaged in a compact (2.3mm × 2.9mm) and low profile BGA package suitable for automated assembly by standard surface mount equipment.

Applications

• Optical Modules
• Cell Phones, Smart-Phones
• Solid State Disk Drive Applications
• Space constrained applications

Key features

• Wide VIN Range From 2.5V to 5.5V
• Total Solution Size < 6.7mm²
• Sub 1-mm Profile Solution
• ±1.5% DC Voltage Accuracy
• Up to 1600-mA Load Current
• Up to 90% Efficiency
• Fixed Output Voltage: TPS8268180: 1.80V TPS8268150: 1.50V TPS8268120: 1.20V TPS8268105: 1.05V TPS8268090: 0.90V
• Low EMI by Spread Spectrum PWM Frequency Dithering
• Best in Class Load and Line Transient Response
• Internal Soft Start
• Current Overload and Thermal Shutdown Protection
