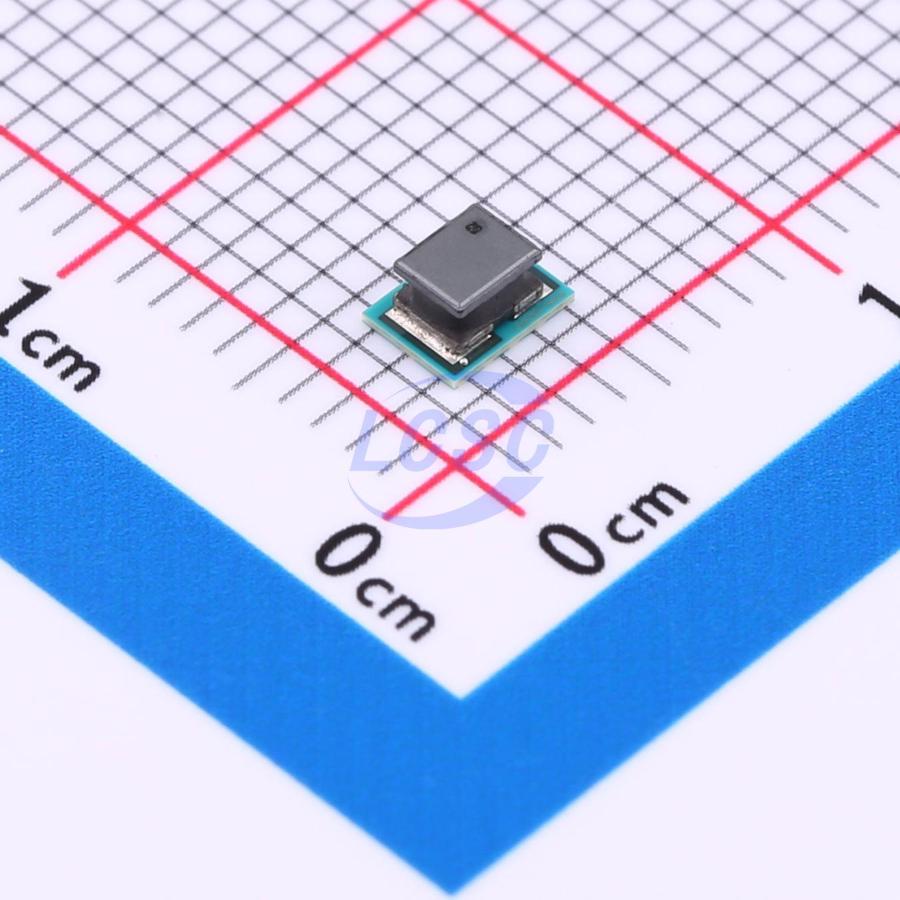

TPSM265R1V3SILR

Step-down type Fixed 3.3V 3V~65V USIP-10 DC DC Converters RoHS

USIP-10ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TPSM265R1V3SILR
Store part #: C2876790
Package / case: USIP-10
Category: DC DC Converters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19 in stock

#C2876790

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹473.28	₹473.28
10+	₹462.19	₹4,621.90
30+	₹454.60	₹13,638.00
100+	₹447.20	₹44,720.00

Quantity (min 1)

1 × ₹473.28

₹473.28

excl. GST

₹558.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPSM265R1V3SILR

₹473.28 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Synchronous Rectifier: Yes
Function: Step-down type
Number of Outputs: 1
Output Type: Fixed
Topology: Buck
Iout: 100mA
Output Voltage: 3.3V
Operating Temperature: -40℃~+125℃@(TA)
Features: Light load efficient mode;Adjustable soft-start;Operating status indication;Cycle-by-cycle current limiting;Overcurrent Protection
Voltage - Supply: 3V~65V
Quiescent Current: 10.5uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

TPSM265R1 is a compact, easy-to-use module that operates over a wide input voltage range, with a maximum continuous input voltage of up to 65V. The module fully integrates a controller, multiple MOSFETs, and an output inductor. It is designed for fast, straightforward power supply implementation in a small PCB footprint. This module offers two fixed output voltage options of 3.3V and 5V, and an adjustable output voltage option ranging from 1.223V to 15V. All options are rated for a load current of 100mA. The TPSM265R1 operates in pulse frequency modulation (PFM) mode to improve efficiency under light-load conditions. Its control scheme requires no loop compensation and delivers excellent line and load transient response. Despite its simple, small-form-factor design, the TPSM265R1 offers a rich feature set. A precision enable pin, adjustable UVLO, and hysteresis functionality accommodate specific power-up and power-down requirements. Selectable/adjustable soft-start options include minimum delay (no soft-start), an internal fixed value (900μs), and external programming via a capacitor. An open-drain PGOOD indicator supports sequencing and output voltage monitoring. The ultra-compact 2.8mm×3.7mm×1.9mm package is ideal for space-constrained applications.

Applications

Field transmitters and process sensors
Position and proximity sensors
PLC, DCS, and PAC
Servo drive power modules
Negative output applications

Key features

Wide input voltage range: 3V to 65V
Output voltage options:
Adjustable: 1.223V to 15V
Fixed: 3.3V or 5V
100mA output current
10.5μA quiescent current
±1% internal voltage reference
PFM operating mode
Ambient temperature range: -40°C to 125°C
Active slew rate control for low EMI, compliant with CISPR11 (EN55011) EMI standard
Monotonic startup into pre-biased output
Power Good flag
Precision enable and input UVLO with hysteresis
Thermal shutdown protection with hysteresis
2.8mm×3.7mm×1.9mm package
Create custom regulator designs with TPSM265R1 using WEBENCH® Power Designer
