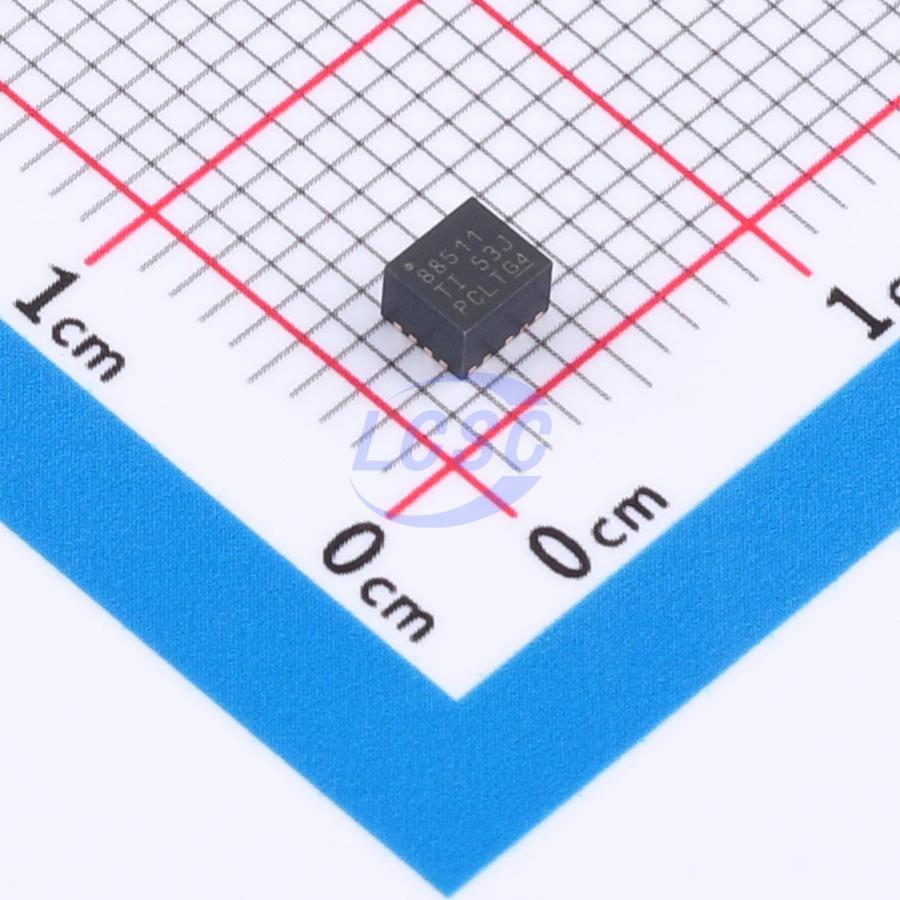

TPSM828511RDYR

The TPSM82851x is a family of pin-compatible 0.5A, 1A, and 2A high-efficiency, easy-to-use synchronous step-down DC/DC power modules with integrated inductors. These devices are based on a fixed-frequency peak current mode control topology, suitable for telecom, test and measurement, and medical applications where power density and ease of use are critical. Low-resistance switches allow continuous output current up to 2A at high ambient temperatures. The switching frequency is internally fixed at 2.25MHz and can also be synchronized to an external clock from 1.8MHz to 4MHz. In PFM/PWM mode, the TPSM82851x automatically enters power save mode at light loads to maintain high efficiency across the full load range. The TPSM82851x provides 1% feedback voltage accuracy in PWM mode, facilitating the design of power supplies with high output voltage accuracy. The SS/TR pin sets the startup time or tracks the output voltage to an external source. This feature enables external sequencing of different power rails and limits inrush current during startup.

Applications

• Factory automation and control
• Signal measurement, source generation, and instrumentation
• Patient monitoring and diagnostics
• Wireless infrastructure
• Rugged communications: sensors, imaging, and radar

Key features

• Input voltage range: 2.7V to 6V
• Output voltage range: 0.6V to 5.5V
• Available in 0.5A, 1A, and 2A device families
• Typical quiescent current: 20μA
• Feedback voltage accuracy: ±1% (PWM operation)
• Switching frequency: 2.25MHz (PWM operation)
• External synchronization range: 1.8MHz to 4MHz
• Selectable forced PWM or PFM/PWM operation
• Adjustable soft-start up to 10ms or tracking
• Precision enable input supports:
• User-defined UVLO
• Precise sequencing
• 100% duty cycle mode
• Active output discharge
• Power-good output with window comparator
• Operating temperature range: -40°C to 125°C
• 2.7mm × 3.0mm QFN package with 0.5mm pin pitch
