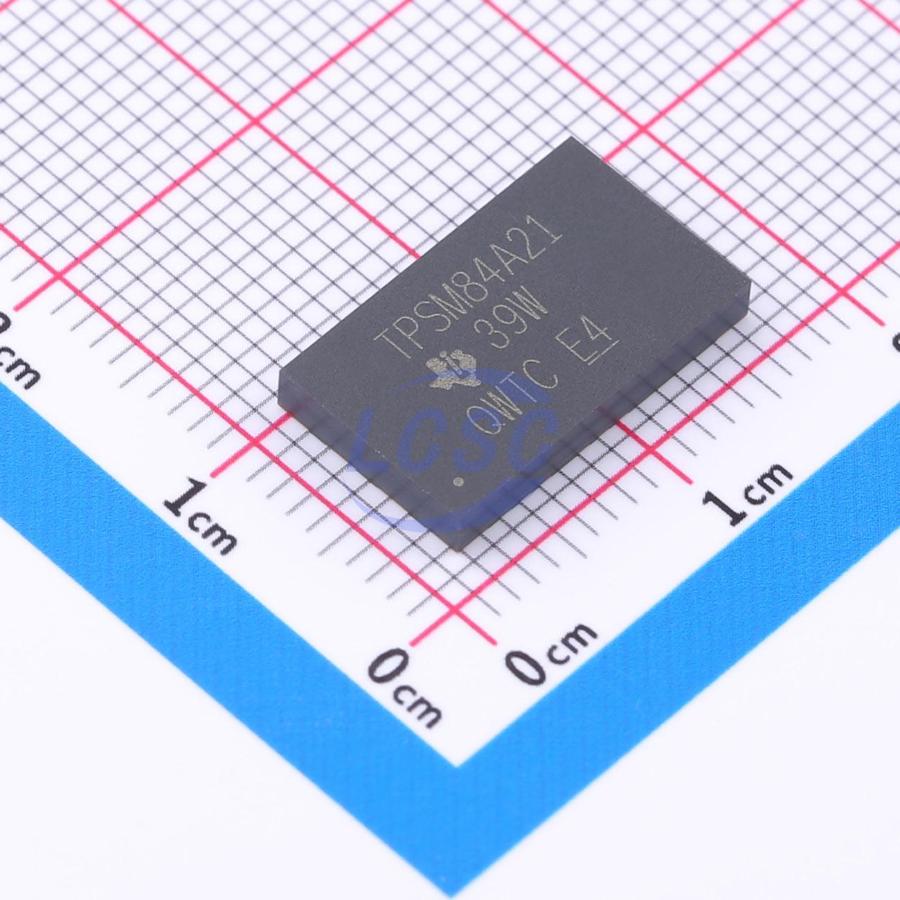

TPSM84A21MOJR

The TPSM84A21 is an easy-to-use integrated power supply solution that perfectly combines the TPS54A20 10A DC/DC synchronous buck converter with power MOSFETs, isolated inductors, input and output capacitors, and passive components in a thin package. This complete power supply solution only requires one resistor to set the voltage, and there is no need to consider loop compensation and magnetic component selection during the design process. For standard applications, with this fully integrated power supply solution, it can operate normally without using additional input or output capacitors, and the output voltage can be set with just one external resistor. In addition, the TPSM84A21 supports high-frequency operation, while having ultra-fast transient response and precise voltage regulation capabilities, easily meeting strict voltage regulation specifications. This device features a compact size of 9mm×15mm, making it easy to solder on the printed circuit board to create a compact and thin point-of-load design.

Applications

• Telecom and wireless infrastructure
• Test and measurement
• Compact PCI/PCI Express/PXI Express

Key features

• Fully integrated power solution with input and output capacitors
• Single resistor voltage setting
• 9mm x 15mm footprint, 2.3mm maximum height
• Pin-compatible with TPSM84A22
• Ultra-fast load transient response
• Up to 88% efficiency
• 1% output voltage accuracy
• 4MHz switching frequency
• MSL 3/245°C peak reflow temperature
• External clock synchronization
• Power good output
• Pre-bias output startup
• Programmable UVLO
• Operating IC junction temperature range: -40°C to +125°C
• Operating ambient temperature range: -40°C to +85°C
• Compliant with EN55022 Class B radiated emissions
