TECH PUBLICDatasheet (PDF)

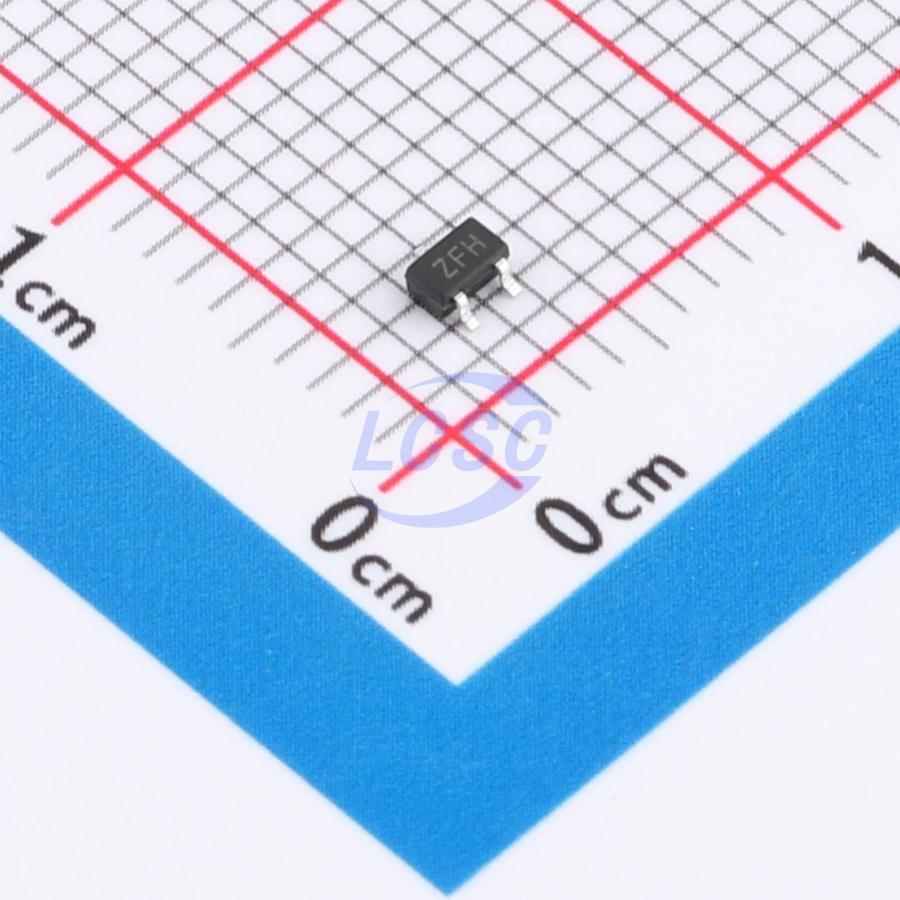

TPTCM809RVLB713
240ms Active Low 1V~5.5V 1 SOT-323 Supervisors
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTCM809RVLB713
- Store part #
- C52098264
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,420 in stock
#C52098264
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.71 | ₹93.55 |
| 50+ | ₹14.71 | ₹735.50 |
| 150+ | ₹12.71 | ₹1,906.50 |
| 500+ | ₹11.21 | ₹5,605.00 |
| 3,000+ | ₹10.02 | ₹30,060.00 |
| 6,000+ | ₹9.41 | ₹56,460.00 |
5 × ₹18.71
₹93.55
excl. GST
₹110.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTCM809RVLB713
₹93.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Power supply transient immunity
- Guaranteed correct logic output down to 1.0V supply voltage
- Push-pull active-low reset output
- SOT323 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX809SQ263T1G-TP#C52098268TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,700 | ₹18.71 · 2,700 in stock | View |
 | TPMIC809RYC3#C52098265TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 200 | ₹18.71 · 200 in stock | View |
 | TPADM809RAKSZ#C52098267TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 210 | ₹18.71 · 210 in stock | View |
 | MAX809REXR-TP#C52098269TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 180 | ₹18.57 · 180 in stock | View |
 | TPAX809RC3#C52098270TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 205 | ₹22.74 · 205 in stock | View |
