TECH PUBLICDatasheet (PDF)

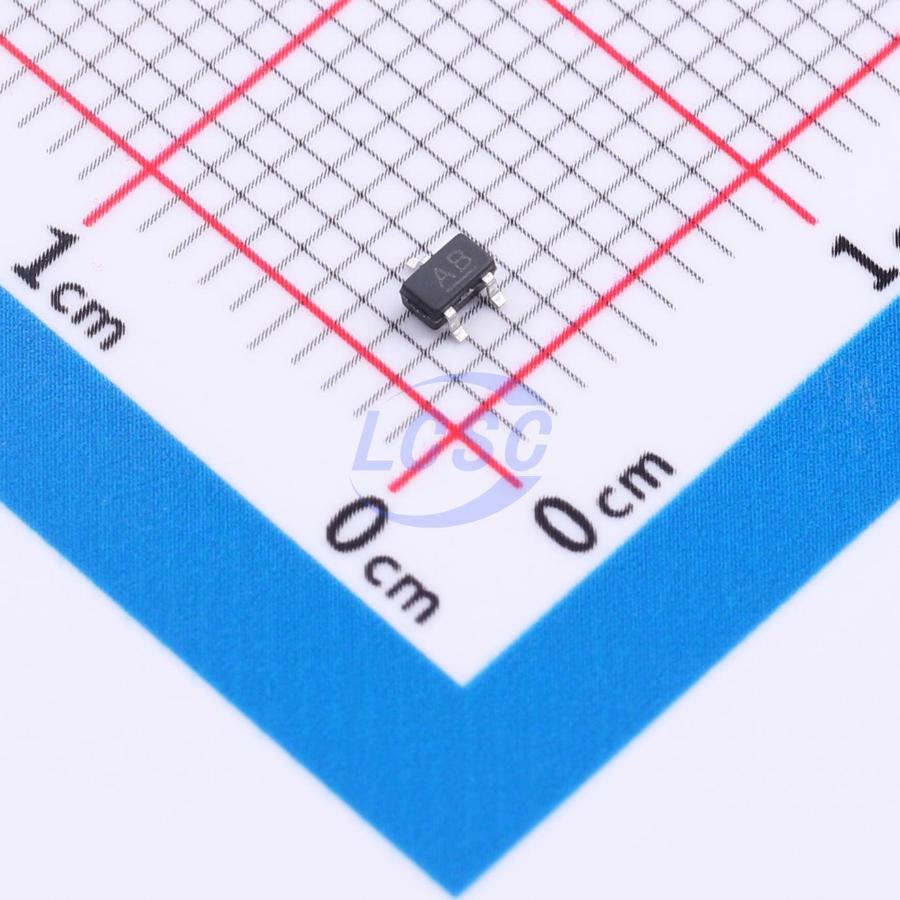

TPTLV803EA26DCKR
240ms Active Low 1V~5.5V 1 SOT-323 Supervisors
SOT-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTLV803EA26DCKR
- Store part #
- C52146018
- Package / case
- SOT-323
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C52146018
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.71 | ₹93.55 |
| 50+ | ₹14.71 | ₹735.50 |
| 150+ | ₹12.71 | ₹1,906.50 |
| 500+ | ₹11.21 | ₹5,605.00 |
| 3,000+ | ₹10.02 | ₹30,060.00 |
| 6,000+ | ₹9.41 | ₹56,460.00 |
5 × ₹18.71
₹93.55
excl. GST
₹110.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTLV803EA26DCKR
₹93.55 for 5 + GST
Specifications
- Reset Timeout
- 240ms
- Operating Temperature
- -40℃~+105℃
- output type
- Open-drain
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
Key features
- High accuracy, ±2%
- Precision VCC monitoring for +2.5V, +3V, +3.3V, and +5V supplies
- Power supply transient immunity
- Reset guaranteed valid with VCC as low as +1V
- Fully specified over full temperature range
- 2μA supply current
- Available in one output configuration: open-drain, active-low RESET output
- Package: SOT-323
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX803RC3#C52146014TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,000 | ₹22.74 · 3,000 in stock | View |
 | MAX803REXR-TP#C52146015TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 260 | ₹24.74 · 260 in stock | View |
 | TPAPX803L20-26C3#C52146016TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,980 | ₹18.57 · 2,980 in stock | View |
 | TPADM803RAKSZ#C52146019TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,955 | ₹24.58 · 2,955 in stock | View |
 | MAX803SQ263T1G-TP#C52146020TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,315 | ₹18.71 · 2,315 in stock | View |
