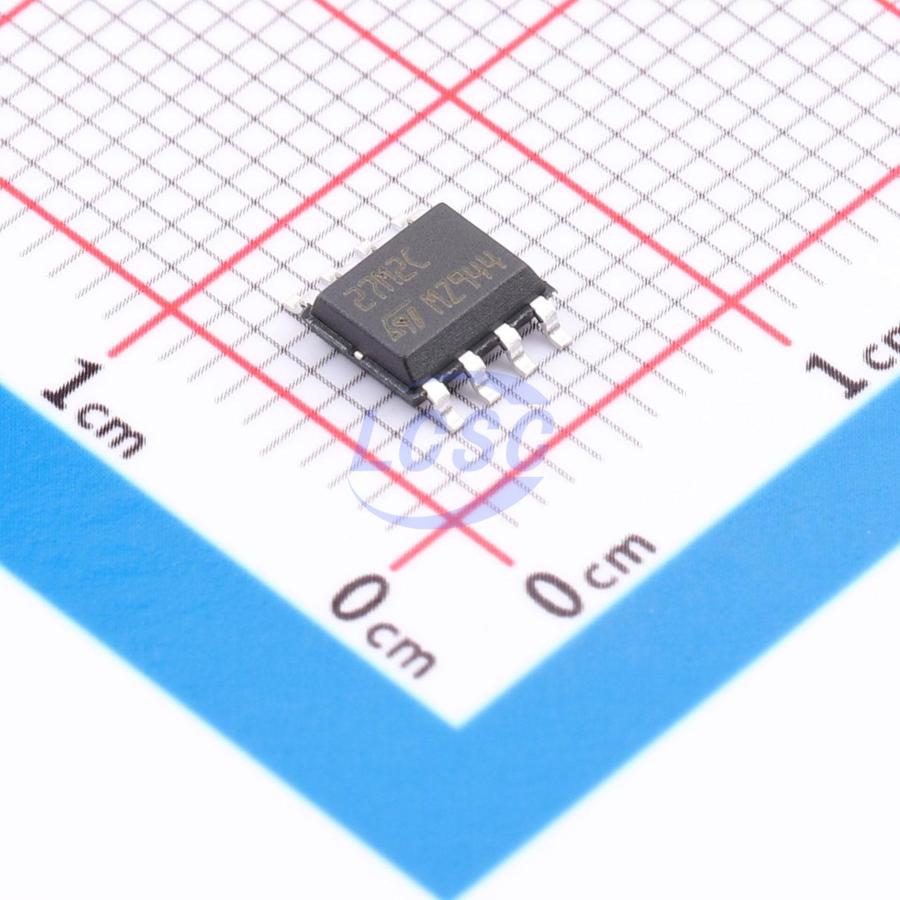

TS27M2CDT
60mA 2 10mV 600V/ms 65dB 1pA 150uA 1MHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS
SO-8ROHS3 CompliantActive
Low-power CMOS dual operational amplifiers
- Manufacturer
- ST
- Manufacturer part #
- TS27M2CDT
- Store part #
- C2057620
- Package / case
- SO-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,510 in stock
#C2057620
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.80 | ₹125.80 |
| 10+ | ₹113.01 | ₹1,130.10 |
| 30+ | ₹106.06 | ₹3,181.80 |
| 100+ | ₹98.26 | ₹9,826.00 |
| 500+ | ₹94.79 | ₹47,395.00 |
| 1,000+ | ₹93.06 | ₹93,060.00 |
1 × ₹125.80
₹125.80
excl. GST
₹148.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS27M2CDT
₹125.80 for 1 + GST
Specifications
- Output Current
- 60mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 10mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 100pA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 150uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 38nV/√Hz@1kHz
- Single Supply
- 3V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.35 g
Overview
The TS27×2 series are low-cost and low-power dual operational amplifiers designed to operate with high-voltage single or dual supplies. These operational amplifiers use the ST silicon gate CMOS process, providing an excellent consumption-speed ratio thanks to three different power consumptions, making them ideal for low-consumption applications: I_CC = 10 μA/amp: TS27L2 (very low power), I_CC = 150 μA/amp: TS27M2 (low power) and I_CC = 1 mA/amp: TS272 (high speed) The devices also offer a very high input impedance and extremely low input currents. Their main advantage compared to JFET devices is the very low input current drift with temperature.
Applications
- Low-power application scenarios
Key features
- Wide supply voltage range: 3 to 16 V
- Ultra-low consumption: 150 μA/amp typ
- Output voltage swing to ground
- Excellent phase margin on capacitive load
- Gain bandwidth product: 1 MHz typ
- Vio down to 2 mV max. (B version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS27M2IDT#C2057809ST · SO-8 | ST | SO-8 | 2,382 | ₹67.95 · 2,382 in stock | View |
 | TS272BIDT#C2058147ST · SO-8 | ST | SO-8 | 37 | ₹383.63 · 37 in stock | View |
 | TS272ACDT#C283328ST · SOP-8 | ST | SOP-8 | 8 | ₹98.44 · 8 in stock | View |
 | TLV272CDR#C2057291TI · SOIC-8 | TI | SOIC-8 | 3,633 | ₹103.43 · 3,633 in stock | View |
 | TS272CDT#C283317ST · SO-8 | ST | SO-8 | 235 | ₹116.69 · 235 in stock | View |
