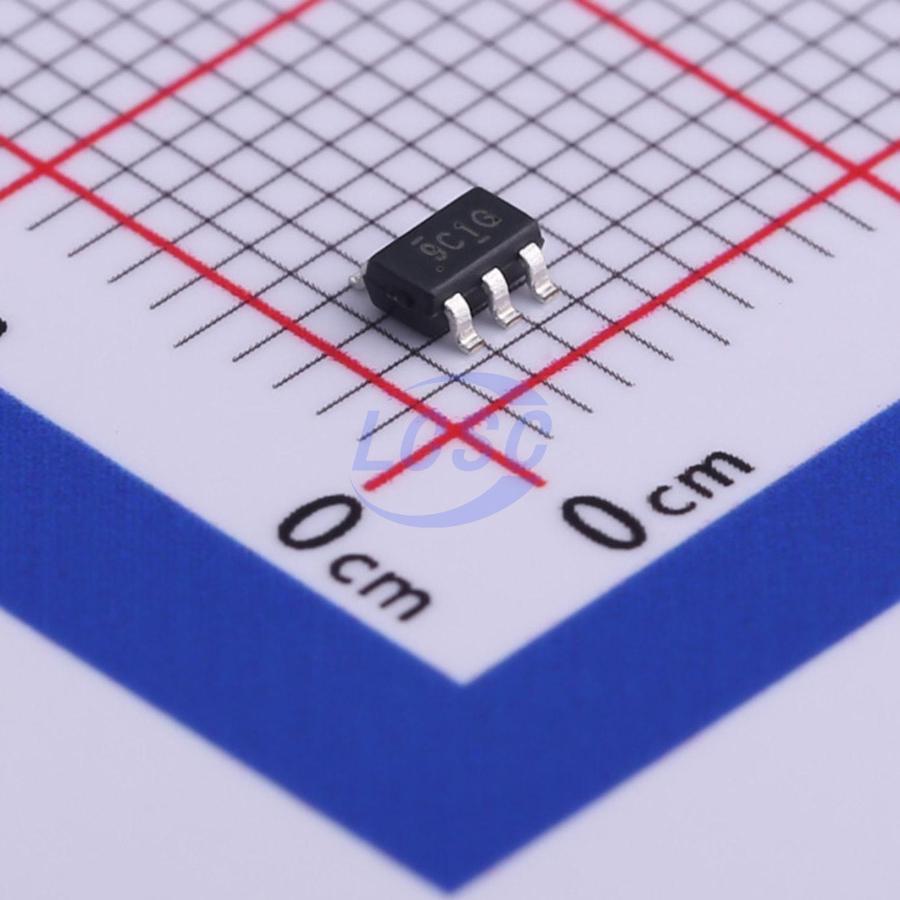

TS321IDBVR
20mA 1 4mV 400V/ms 85dB 200nA 500uA 800kHz SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Low-Power Single Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- TS321IDBVR
- Store part #
- C485521
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,530 in stock
#C485521
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.22 | ₹186.10 |
| 50+ | ₹28.75 | ₹1,437.50 |
| 150+ | ₹25.14 | ₹3,771.00 |
| 500+ | ₹20.61 | ₹10,305.00 |
| 3,000+ | ₹18.60 | ₹55,800.00 |
| 6,000+ | ₹17.38 | ₹1,04,280.00 |
5 × ₹37.22
₹186.10
excl. GST
₹219.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS321IDBVR
₹186.10 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Ib - Input Bias Current
- 200nA
- Quiescent Current
- 500uA
- Gain Bandwidth Product
- 800kHz
- Input Voltage Noise Density
- 50nV/√Hz@1kHz
- Dual Supply
- -1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The TS321 is a bipolar operational amplifier for cost-sensitive applications in which space savings are important.
Applications
- Desktop PCs
- HVAC: Heating, Ventilating, and Air Conditioning
- Portable Media Players
- Refrigerators
- Washing Machines: High-End and Low-End
Key features
- Wide Power-Supply Range – Single Supply from 3 V to 30 V, Dual Supply from ±1.5 V to ±15 V
- Large Output Voltage Swing from 0 V to 3.5 V (Minimum) (VCC = 5 V)
- Low Supply Current at 500 μA (Typical)
- Low Input Bias Current at 20 nA (Typical)
- Stable With High Capacitive Loads
- The TS321 can be powered from a single supply between 3 V and 30 V or a dual-supply between ±1.5 V and ±15 V
- The TS321 has a gain bandwidth of 0.8 MHz
- The TS321 has a 0.4 V/μs slew rate
- The valid common-mode range is from device ground pin to VCC – 1.5 V (VCC – 2 V across temp)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS321IDBVT#C2057748TI · SOT-23-5 | TI | SOT-23-5 | 56 | ₹31.88 · 56 in stock | View |
 | LM321SN3T1G#C457686onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 15,610 | ₹13.85 · 15,610 in stock | View |
 | MLM321MF#C42403140MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 10,180 | ₹4.88 · 10,180 in stock | View |
 | TS321QDBVRQ1#C523798TI · SOT-23-5 | TI | SOT-23-5 | 10 | ₹1,092.80 · 10 in stock | View |
 | TS321ILT#C38380ST · SOT-23-5 | ST | SOT-23-5 | 28,175 | ₹34.25 · 28,175 in stock | View |
