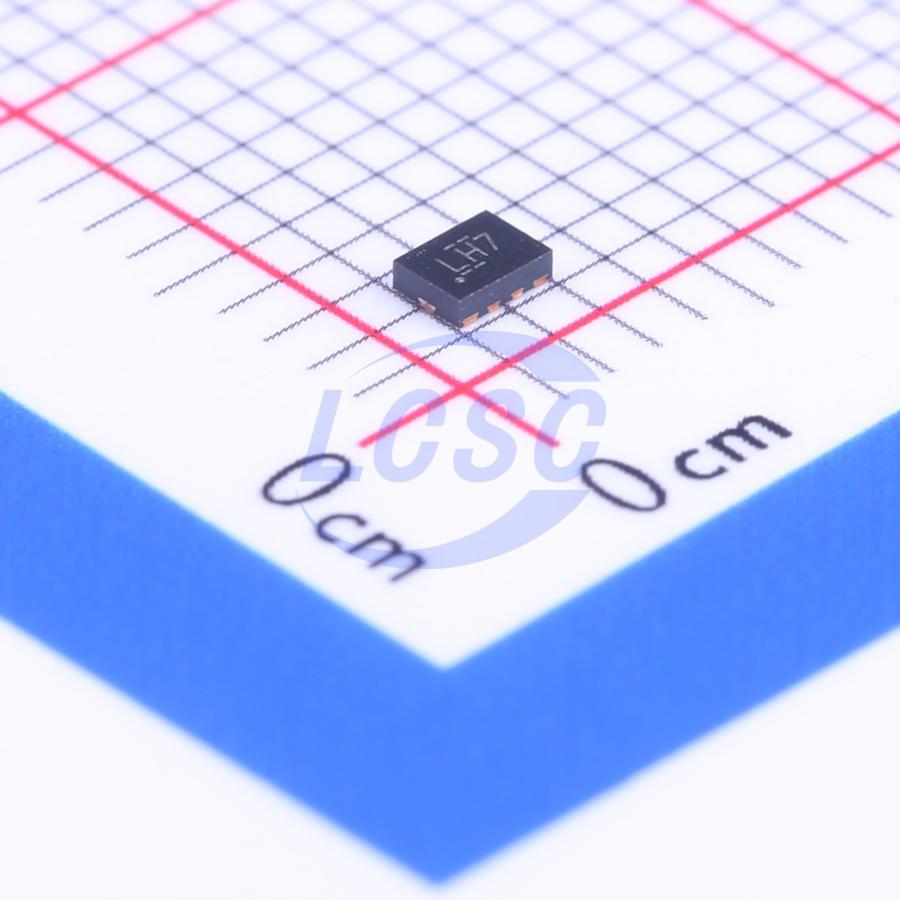

TS3USB221ARSER

The TS3USB221A device is a high-bandwidth switch specially designed for the switching of high-speed USB 2.0 signals in handset and consumer applications, such as cell phones, digital cameras, and notebooks with hubs or controllers with limited USB I/Os. The wide bandwidth (900 MHz) of this switch allows signals to pass with minimum edge and phase distortion. The device multiplexes differential outputs from a USB host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high-speed signals at the outputs. The device also has a low power mode that will reduce the power consumtion to 1 μA for portible applications with a battery or limited power budget. The device is designed for low bit-tobit skew and high channel-to-channel noise isolation, and is compatible with various standards, such as high-speed USB 2.0 (480 Mbps). The TS3USB221A device integrates ESD protection cells on all pins, is available in a tiny μQFN package (2 mm× 1.5 mm) and is characterized over the free air temperature range from -40°C to 85°C.

Applications

• Routes Signals for USB 1.0, 1.1, and 2.0
• Mobile Phones
• Cameras
• Notebooks USB I/O expansion

Key features

• VCC Operation at 2.5V to 3.3V
• V1/0 Accepts Signals Up to 5.5V
• 1.8-V Compatible Control-Pin Inputs
• Low-Power Mode When OC is Disabled (1 μA)
• RON = 6 Ω Maximum
• ΔRON = 0.2 Ω Typical
• Cio(on) = 6 pF Typical
• Low Power Consumption (30 μA Maximum)
• High Bandwidth (900 MHz Typical)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Performance Tested Per JESD 22
• 7000-V Human-Body Model (A114-B, Class II)
• 1000-V Charged-Device Model (C101)
• ESD Performance I/O to GND 12-kV Human-Body Model
