VBsemi ElecDatasheet (PDF)

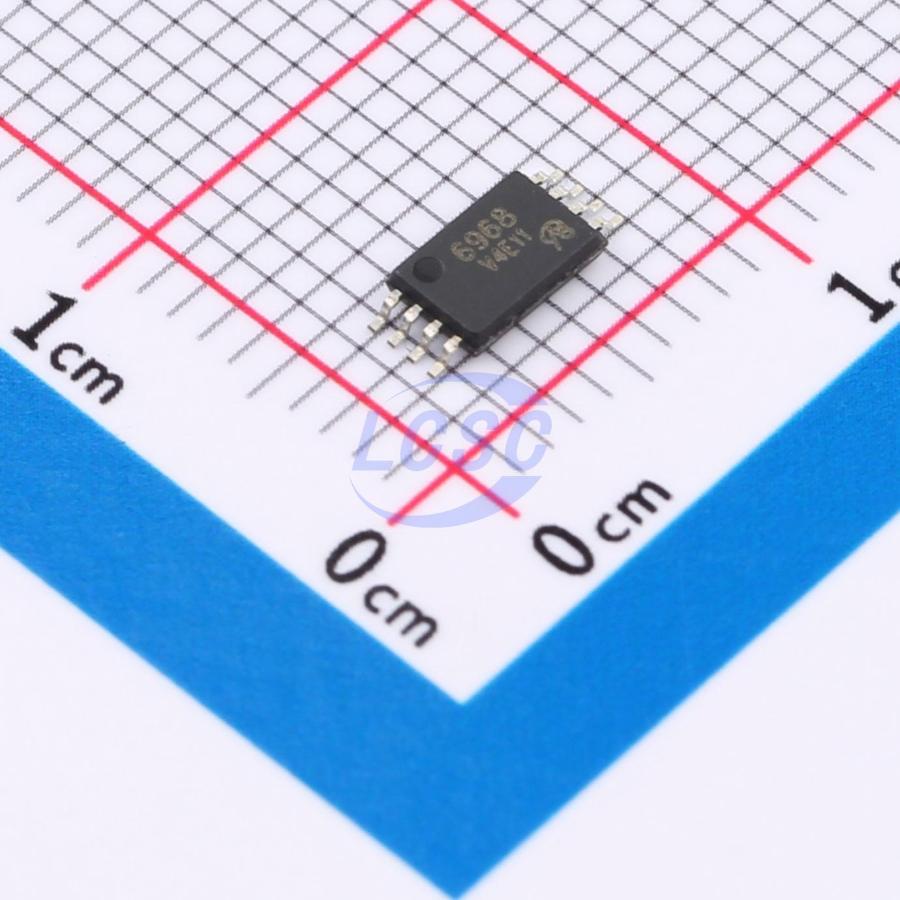

TSM6968SDCA RV-VB
N-Channel 20V 7.6A 0.96W Surface Mount TSSOP-8
TSSOP-8RoHSActive
MOSFET N-CH 20V 7.6A TSSOP-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- TSM6968SDCA RV-VB
- Store part #
- C22389611
- Package / case
- TSSOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389611
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.69 | ₹58.69 |
| 10+ | ₹46.19 | ₹461.90 |
| 30+ | ₹40.68 | ₹1,220.40 |
| 100+ | ₹34.11 | ₹3,411.00 |
| 500+ | ₹30.93 | ₹15,465.00 |
| 1,000+ | ₹29.24 | ₹29,240.00 |
1 × ₹58.69
₹58.69
excl. GST
₹69.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TSM6968SDCA RV-VB
₹58.69 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 7.6A
- Pd - Power Dissipation
- 960mW
- RDS(on)
- 14mΩ@4.5V;18mΩ@2.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 12nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 600mV;1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Load switch for portable applications
Key features
- Halogen-free option available - Trench Power MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AO8808A-VB#C693143VBsemi Elec · TSSOP-8 | VBsemi Elec | TSSOP-8 | 25 | ₹47.19 · 25 in stock | View |
 | VBZC8810#C700613VBsemi Elec · TSSOP-8 | VBsemi Elec | TSSOP-8 | 95 | ₹45.67 · 95 in stock | View |
 | VBC6N2014#C416247VBsemi Elec · TSSOP-8 | VBsemi Elec | TSSOP-8 | 785 | ₹45.56 · 785 in stock | View |
 | UPA1870BGR-VB#C558301VBsemi Elec · TSSOP-8 | VBsemi Elec | TSSOP-8 | 50 | ₹48.38 · 50 in stock | View |
 | VBC6N3010#C480940VBsemi Elec · TSSOP-8 | VBsemi Elec | TSSOP-8 | 75 | ₹44.03 · 75 in stock | View |
