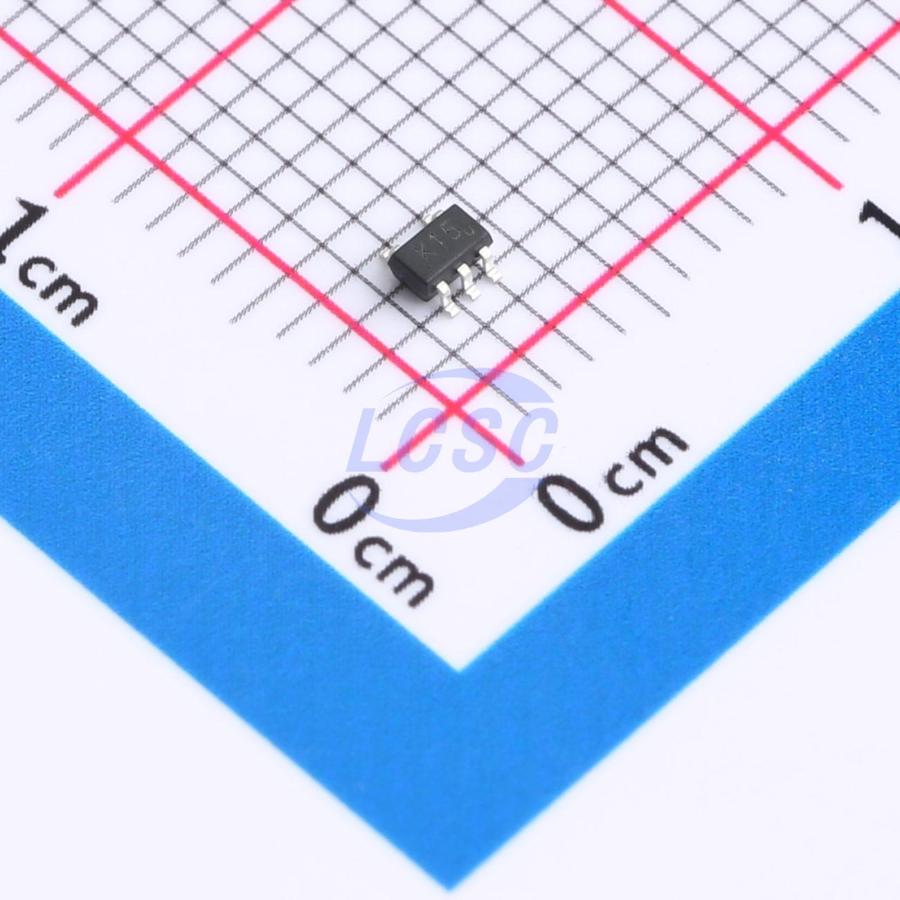

TSV6291AICT(UMW)

74mA 1 800uV 500V/ms 79dB 1pA 33uA 1.3MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

Micropower with High Merit Factor CMOS Operational Amplifiers

Manufacturer: UMW
Manufacturer part #: TSV6291AICT(UMW)
Store part #: C22365304
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,830 in stock

#C22365304

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹15.77	₹78.85
50+	₹13.77	₹688.50
150+	₹12.93	₹1,939.50
500+	₹11.85	₹5,925.00
3,000+	₹11.39	₹34,170.00
6,000+	₹11.10	₹66,600.00

Quantity (min 5, multiples of 5)

5 × ₹15.77

₹78.85

excl. GST

₹93.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TSV6291AICT(UMW)

₹78.85 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 74mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 100pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 79dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 33uA
Gain Bandwidth Product: 1.3MHz
Features: Decompensated stable
Input Voltage Noise Density: 70nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

The TSV6291 are single operational amplifiers with a high bandwidth which consume only 29 μA. They must be used in a gain configuration (G < -3, G > 4). With a very low input bias current and low offset voltage (800 μv maximum for the A version), the TSV629 family of devices is ideal for applications requiring precision. The devices can operate at a power supply ranging from 1.5 to 5.5 V, and therefore suit battery-powered devices, extending battery life.

Applications

Battery-powered applications
Portable devices
Signal conditioning
Active filtering
Medical instrumentation

Key features

Low supply voltage: 1.5 V - 5.5 V
Rail-to-rail input and output
Low input offset voltage: 800 μv max (A version)
Low power consumption: 29 μA typical
Gain bandwidth product: 1.3 MHz typical
Stable when used in gain configuration
Micropackages: SOT23-5, SC70-5
Low input bias current: 1 pA typical
Extended temperature range: -40 to 125 °C
4 kV human body model
