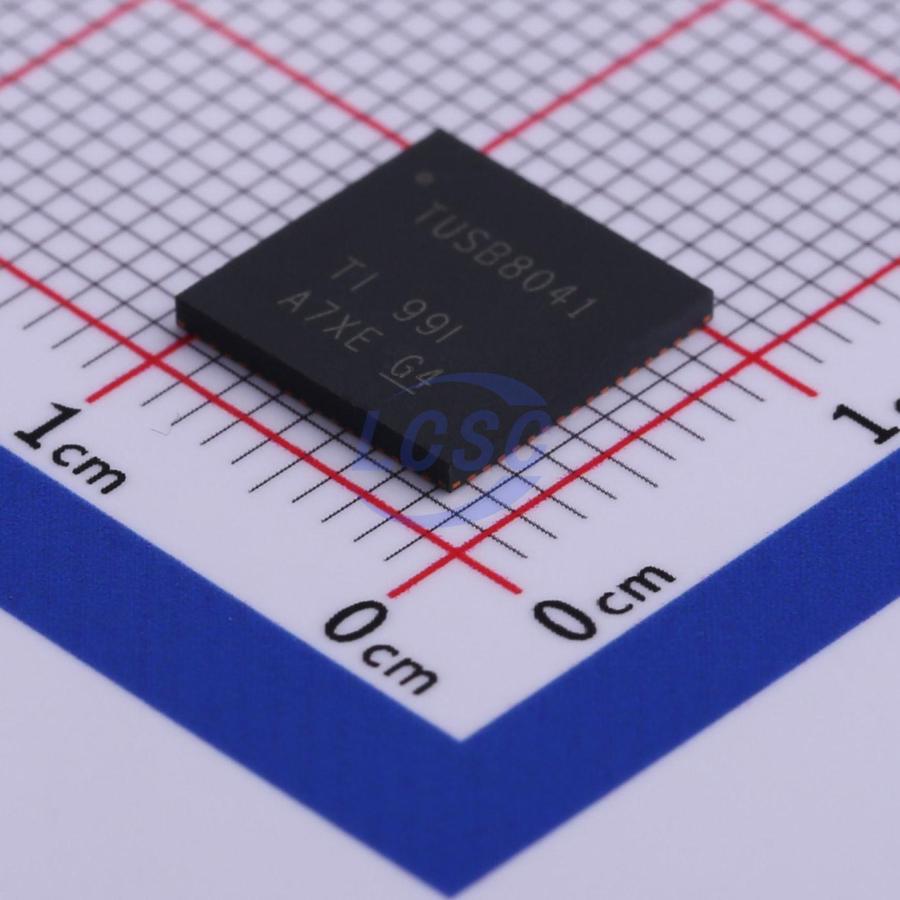

TUSB8041RGCR

USB Hub 4 QFN-64-EP(9x9) Controllers RoHS

QFN-64-EP(9x9)ROHS3 CompliantActive

Four-Port USB 3.0 Hub

Manufacturer: TI
Manufacturer part #: TUSB8041RGCR
Store part #: C486066
Package / case: QFN-64-EP(9x9)
Category: Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,734 in stock

#C486066

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹934.91	₹934.91
10+	₹837.13	₹8,371.30
30+	₹774.47	₹23,234.10
100+	₹714.20	₹71,420.00

Quantity (min 1)

1 × ₹934.91

₹934.91

excl. GST

₹1,103.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TUSB8041RGCR

₹934.91 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Power-on reset;Built-in clock generator
Voltage - Supply: 3.3V
Operating Temperature: 0℃~+70℃
Applications Function: USB Hub
Quiescent Supply Current: 33mA
USB Protocol: USB 3.0;USB 2.0
Current - Supply: 778mA
Number of Channels: 4

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.285 g

Overview

The TUSB8041 is a four-port USB 3.0 hub. It provides simultaneous SuperSpeed USB and highspeed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, fullspeed, or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports fullspeed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports. The TUSB8041 supports per port or ganged power switching and over-current protection, and supports battery charging applications. An individually port power controlled hub switches power on or off to each downstream port as requested by the USB host. Also when an individually port power controlled hub senses an over-current event, only power to the affected downstream port will be switched off. A ganged hub switches on power to all its downstream ports when power is required to be on for any port. The power to the downstream ports is not switched off unless all ports are in a state that allows power to be removed. Also when a ganged hub senses an over-current event, power to all downstream ports will be switched off. The TUSB8041 downstream ports provide support for battery charging applications by providing Battery Charg

Applications

Computer Systems
Docking Stations
Monitors
Set-Top Boxes

Key features

Four Port USB 3.0 Hub
USB 2.0 Hub Features Multi Transaction Translator (MTT) Hub: Four Transaction Translators Four Asynchronous Endpoint Buffers Per Transaction Translator
Supports Battery Charging CDP Mode (Upstream Port Connected) DCP Mode (Upstream Port Unconnected) DCP Mode Complies with Chinese Telecommunications Industry Standard YD/T 1591-2009 D+/D- Divider Mode
Supports Operation as a USB 3.0 or USB 2.0 Compound Device
Per Port or Ganged Power Switching and Over Current Notification Inputs
OTP ROM, Serial EEPROM or I2C/SMBus Slave Interface for Custom Configurations:
VID and PID Port Customizations Manufacturer and Product Strings (not by OTP ROM)
Serial Number (not by OTP ROM)
Application Feature Selection Using Pin Selection or EEPROM/ or I2C/SMBus Slave Interface
Provides 128-Bit Universally Unique Identifier (UUID)
Supports On-Board and In-System OTP/EEPROM Programming Via the USB 2.0 Upstream Port
Single Clock Input, 24-MHz Crystal or Oscillator
No Special Driver Requirements; Works Seamlessly on any Operating System with USB Stack Support
64-Pin QFN Package (RGC)
