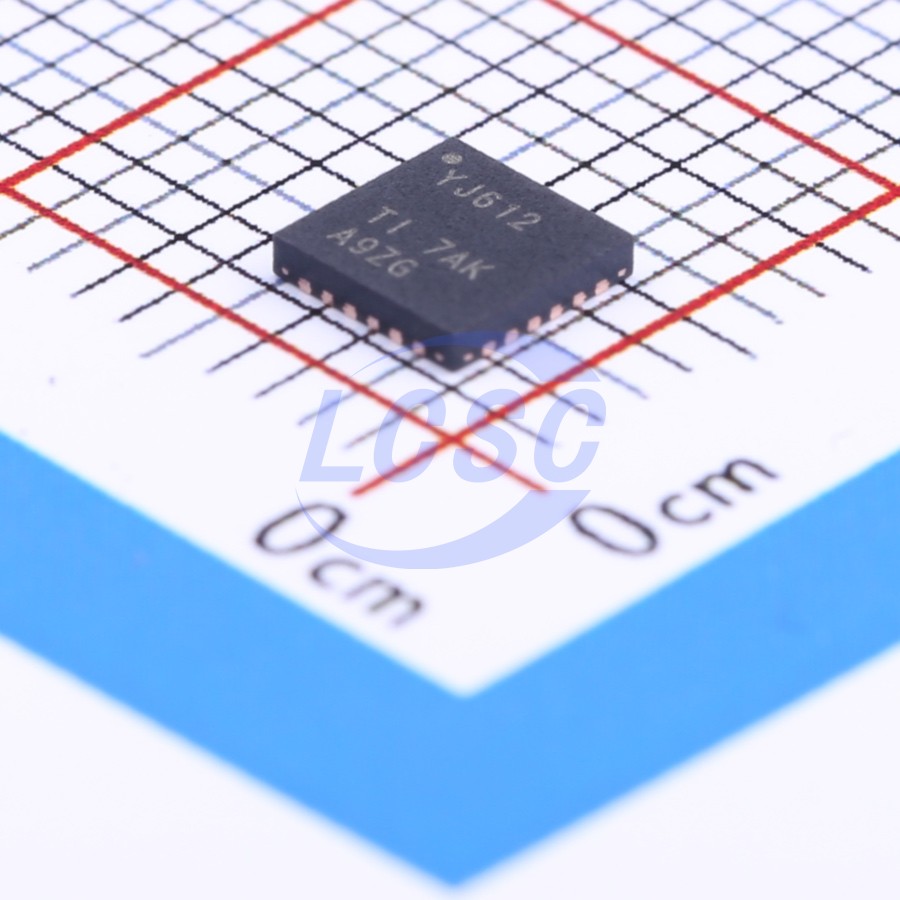

TXS02612RTWR
-40℃~+85℃ 120Mbps WQFN-24-EP(4x4) Specialized RoHS
SDIOPORTEXPANDERWITHVOLTAGE-LEVELTRANSLATION
- Manufacturer
- TI
- Manufacturer part #
- TXS02612RTWR
- Store part #
- C140276
- Package / case
- WQFN-24-EP(4x4)
- Category
- Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,242 in stock
#C140276
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.28 | ₹109.28 |
| 10+ | ₹87.78 | ₹877.80 |
| 30+ | ₹77.13 | ₹2,313.90 |
| 100+ | ₹66.48 | ₹6,648.00 |
| 500+ | ₹60.18 | ₹30,090.00 |
| 1,000+ | ₹56.70 | ₹56,700.00 |
1 × ₹109.28
₹109.28
excl. GST
₹128.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TXS02612RTWR
₹109.28 for 1 + GST
Specifications
- Voltage Rating
- 1.1V~3.6V
- Operating Temperature
- -40℃~+85℃
- Supply Current
- 24uA
- Quiescent Supply Current
- 12uA;24uA
- Data Rate
- 120Mbps
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.069 g
Overview
The TXS02612 is designed to interface the cell phone baseband with external SDIO peripherals. The device includes a 6-channel SPDT switch with voltage-level translation capability. This allows a single SDIO port to be interfaced with two SDIO peripherals. The TXS02612 has three separate supply rails that operate over the full range of 1.1 V to 3.6 V. This allows the baseband and SDIO peripherals to operate at different supply voltages if required.
Key features
- 6-to-12 Demultiplexer/Multiplexer Allows SDIO Port Expansion
- Built-in Level Translator Eliminates Voltage Mismatch Between Baseband and SD Card or SDIO Peripheral
- VCCA, VCCB0, and VCCB1 Each Operate Over Full 1.1-V to 3.6-V Range
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance A Port 2000-V Human-Body Model (A114-B) – 100-V Machine Model (A115-A) 1500-V Charged-Device Model (C101)
- ±8-kV Contact Discharge IEC 61000-4-2 ESD Performance (B Port)
