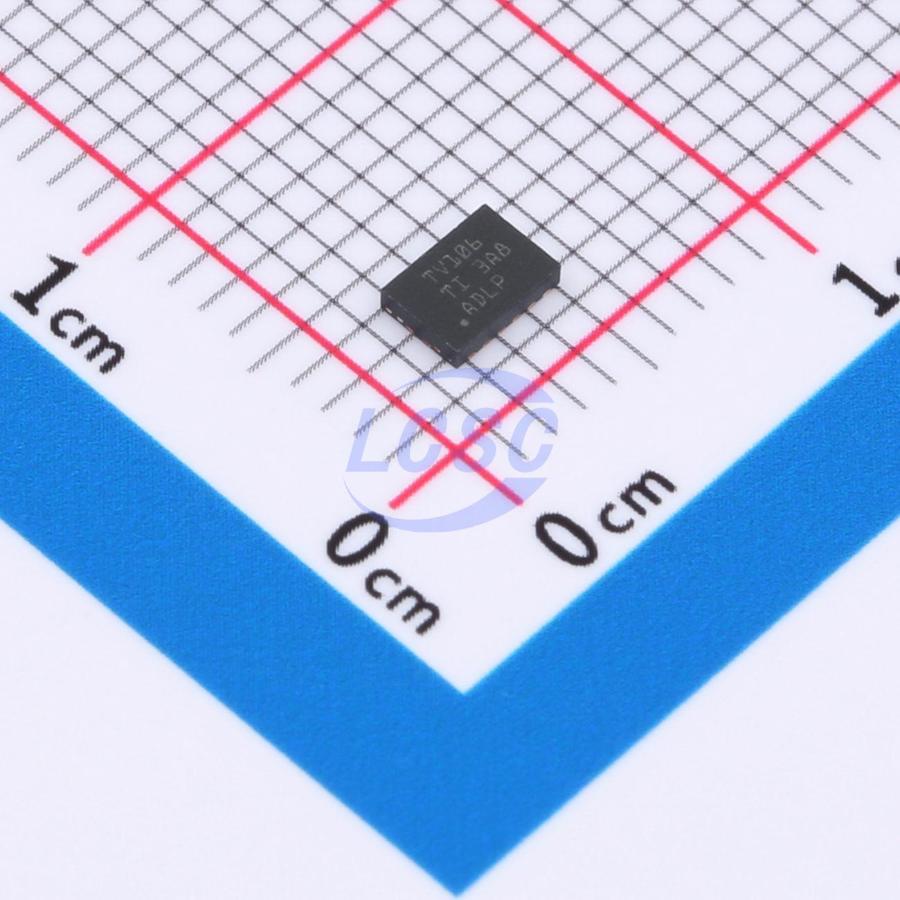

TXV0106BQBR

The TXV0106 is a 6-bit, dual-supply fixed-direction low-skew, low jitter voltage translation device. This device can be used for redriving, voltage translation and power isolation when implementing skew sensitive interface, such as RGMII between Ethernet MAC and PHY. The Ax I/O pins and enable pin (OE) are referenced to VCCA logic levels, and Bx I/O pins are referenced to VCCB logic levels. This device has improved channel-to-channel skew, duty cycle distortion and symmetric rise or fall timing for applications requiring strict timing conditions. This device is fully specified for partial-power-down applications using |off. The |off circuitry disables the outputs, thus preventing damaging current backflow through the device when it is powered down. The VCC isolation feature is designed so that if either VCC supply is at or near 0V both ports will switch to a high-impedance state. This feature enables power isolation for communications across multiple MACs and PHYs, and is beneficial in situations where MACs and PHYs are powered up asynchronously preventing current backflow between devices. The TXV0106 transmits data in a fixed direction from the A bus to the B bus. When OE is set to High, both Ax and Bx pins will be forced into a high-impedance state.

Applications

• Medium or short range radar
• ADAS domain controller
• HVAC controller design
• Machine vision camera
• Rack sever motherboard
• IP telephone

Key features

• Configurable design allows each port to operate with a power supply range from 1.2V to 3.6V
• Supports up to 500Mbps for 1.65V to 3.6V
• Meets RGMII 2.0 timing specifications: < 750 ps rise and fall time, < ±5% duty cycle distortion, < ±400 ps channel to channel skew
• Up to 250Mbps/channel
• Integrated 10Ω damping output resistor to minimize signal reflections
• High drive strength (up to 12mA at 3.6V)
• Fully configurable symmetric dual-rail design
• Optimal signal integrity performance with 390ps peak-to-peak jitter for 1.8V to 3.3V
• Features VCC isolation and VCC disconnect |off supports partial-power-down mode operation
• Latch-up performance exceeds 100mA per JESD 78, Class II
• ESD protection exceeds JESD 22: 2000-V Human-Body Model, 1000-V Charged-Device Model
• Low power consumption: 10-μA maximum (25°C), 20-μA maximum (-40°C to 125°C)
• Operating temperature from -40°C to +125°C
