TIDatasheet (PDF)

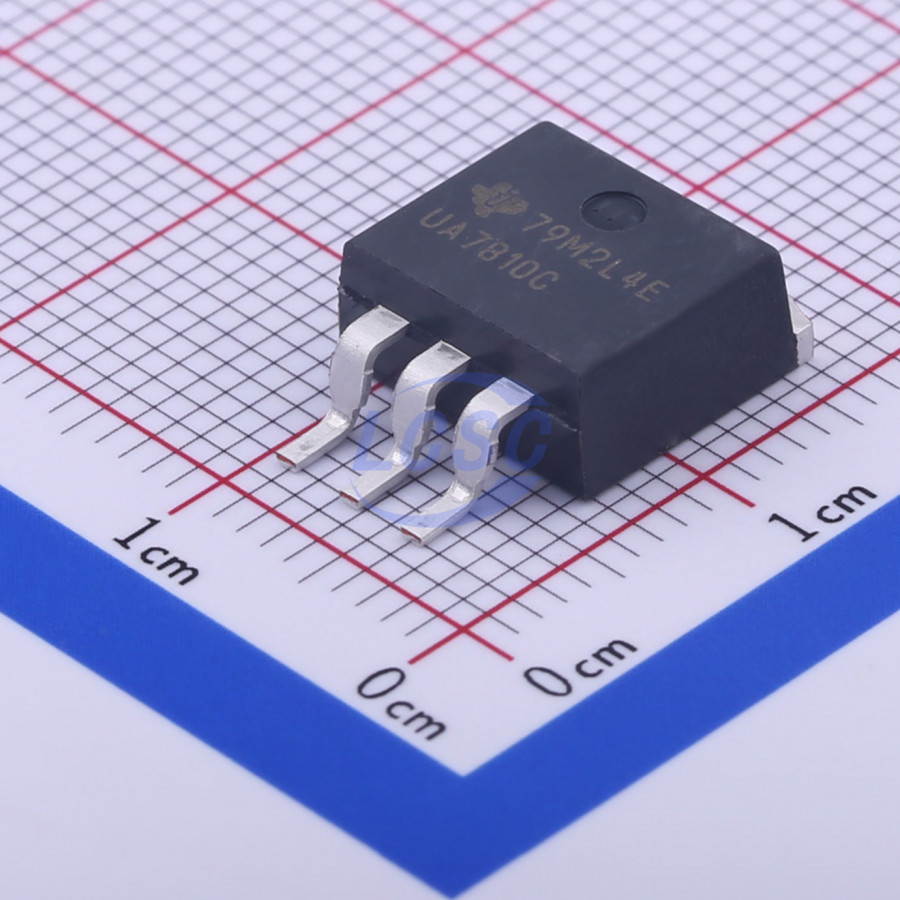

UA7810CKTTR
10V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS3 CompliantActive
1.5A, 38V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- UA7810CKTTR
- Store part #
- C131966
- Package / case
- TO-263-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
148 in stock
#C131966
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹139.05 | ₹139.05 |
| 10+ | ₹112.76 | ₹1,127.60 |
| 30+ | ₹99.52 | ₹2,985.60 |
| 100+ | ₹86.47 | ₹8,647.00 |
| 500+ | ₹73.88 | ₹36,940.00 |
| 1,000+ | ₹69.96 | ₹69,960.00 |
1 × ₹139.05
₹139.05
excl. GST
₹164.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
UA7810CKTTR
₹139.05 for 1 + GST
Specifications
- Output Voltage
- 10V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.3mA
- Output Configuration
- Positive
- Operating Voltage
- 28V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.14 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.
Applications
- On-card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators Available in fixed 5-V/8-V/10-V/12-V/15-V/24-V options Output Current up to 1.5 A
- Internal Thermal-Overload Protection High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting Output Transistor Safe-Area Compensation Output Capacitor Not Needed for Stability
