TIDatasheet (PDF)

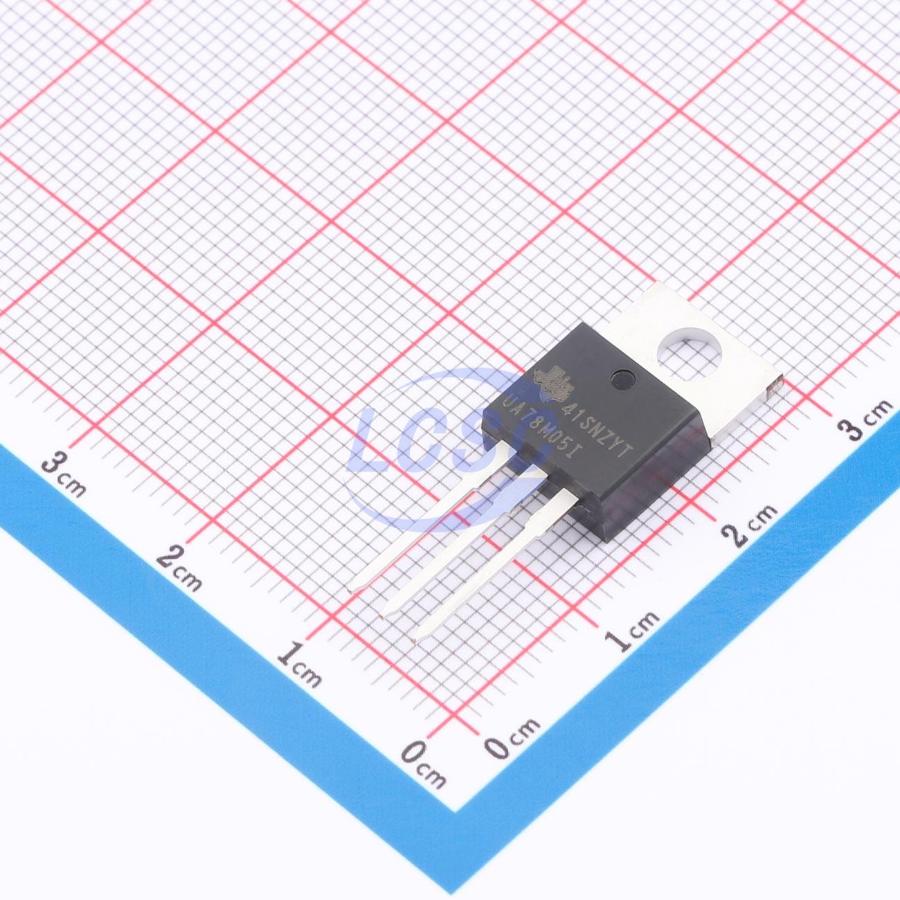

UA78M05IKCS
5V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
500mA, 30V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- UA78M05IKCS
- Store part #
- C2872378
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2872378
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹781.65 | ₹781.65 |
| 10+ | ₹761.72 | ₹7,617.20 |
| 30+ | ₹748.42 | ₹22,452.60 |
| 100+ | ₹735.12 | ₹73,512.00 |
1 × ₹781.65
₹781.65
excl. GST
₹922.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
UA78M05IKCS
₹781.65 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.87 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
Applications
- On-Card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators
- Output Current up to 500 mA
- No External Components
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L78M05ABV#C2970120ST · TO-220-3 | ST | TO-220-3 | 68 | ₹117.35 · 68 in stock | View |
 | L7805ABV#C16807ST · TO-220 | ST | TO-220 | 32,370 | ₹43.53 · 32,370 in stock | View |
 | ME7805A3G#C83970MICRONE · TO-220 | MICRONE | TO-220 | 690 | ₹24.25 · 690 in stock | View |
 | BA17805CP-E2#C5336498ROHM · TO-220-3 | ROHM | TO-220-3 | 25 | ₹238.91 · 25 in stock | View |
 | MC78M05BTG#C897054onsemi · TO-220AB | onsemi | TO-220AB | 73 | ₹105.79 · 73 in stock | View |
