TIDatasheet (PDF)

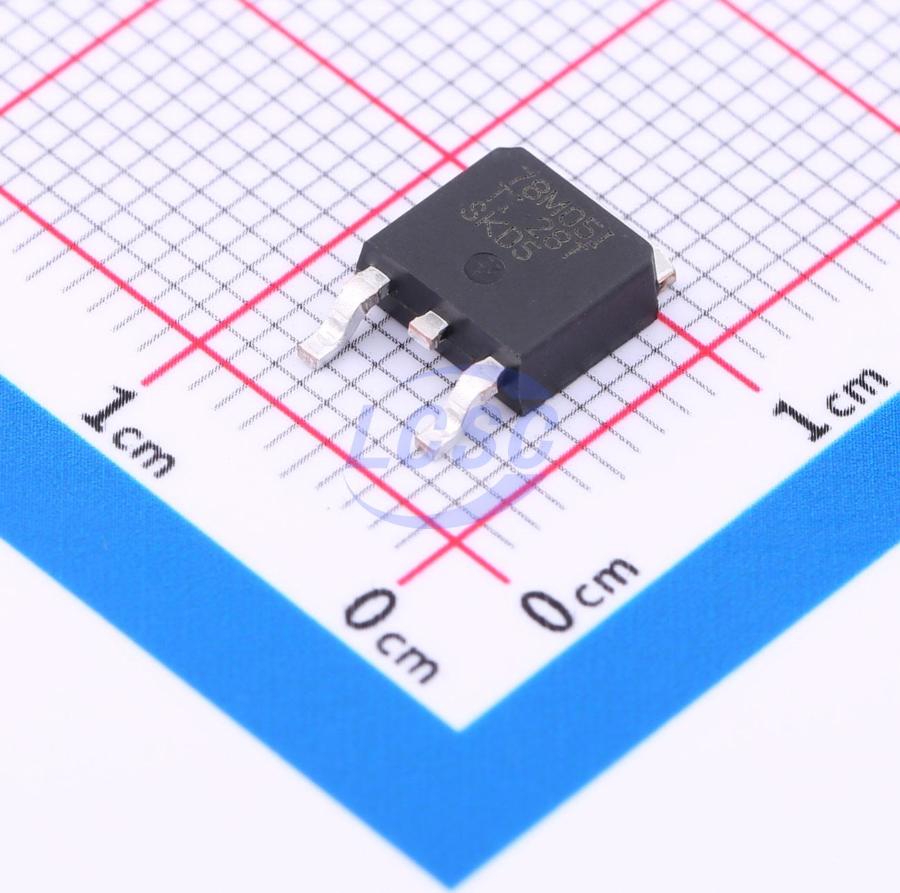

UA78M05IKVURG3
5V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252ROHS3 CompliantActive
Positive-Voltage Regulators
- Manufacturer
- TI
- Manufacturer part #
- UA78M05IKVURG3
- Store part #
- C179899
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,185 in stock
#C179899
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.18 | ₹62.18 |
| 10+ | ₹48.92 | ₹489.20 |
| 30+ | ₹42.40 | ₹1,272.00 |
| 100+ | ₹36.53 | ₹3,653.00 |
| 500+ | ₹35.01 | ₹17,505.00 |
| 1,000+ | ₹33.92 | ₹33,920.00 |
1 × ₹62.18
₹62.18
excl. GST
₹73.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UA78M05IKVURG3
₹62.18 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.5mA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.65 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. The applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
Applications
- On-Card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators
- Output Current up to 500 mA
- No External Components
- Internal Thermal-Overload Protection
- High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting
- Output Transistor Safe-Area Compensation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC78M05ABDTG#C135475onsemi · DPAK | onsemi | DPAK | 515 | ₹33.47 · 515 in stock | View |
 | MC78M05ABDTRKG#C148320onsemi · DPAK-3 | onsemi | DPAK-3 | 5,250 | ₹33.19 · 5,250 in stock | View |
 | MC78M05ACDTRKG#C232660onsemi · DPAK-3 | onsemi | DPAK-3 | 2,140 | ₹34.53 · 2,140 in stock | View |
 | LM78M05ACDT/TR#C7432354HGSEMI · TO-252-2 | HGSEMI | TO-252-2 | 1,215 | ₹17.83 · 1,215 in stock | View |
 | CJ78M05#C9070JSCJ · TO-252-2L | JSCJ | TO-252-2L | 1,72,315 | ₹17.04 · 1,72,315 in stock | View |
