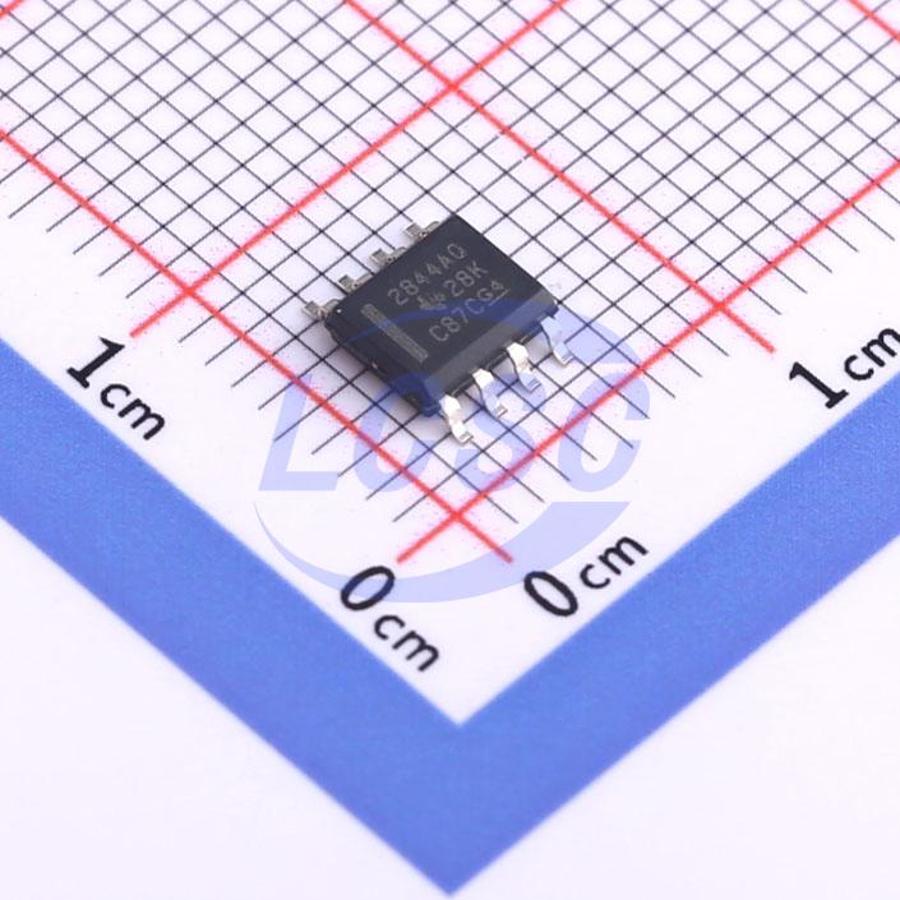

UC2844AQD8R
1A 500kHz 11V SOIC-8 Power Supply Controllers, Monitors RoHS
UCx84xA Current-Mode PWM Controllers
- Manufacturer
- TI
- Manufacturer part #
- UC2844AQD8R
- Store part #
- C544584
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,249 in stock
#C544584
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹419.32 | ₹419.32 |
| 10+ | ₹361.43 | ₹3,614.30 |
| 30+ | ₹325.01 | ₹9,750.30 |
| 100+ | ₹287.71 | ₹28,771.00 |
| 500+ | ₹271.03 | ₹1,35,515.00 |
| 1,000+ | ₹263.65 | ₹2,63,650.00 |
1 × ₹419.32
₹419.32
excl. GST
₹494.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UC2844AQD8R
₹419.32 for 1 + GST
Specifications
- Output Current
- 1A
- Function
- Under-voltage lockout;Slope compensation;Over Current Protection;Under Voltage Protection
- Pd - Power Dissipation
- 1W
- Frequency - Switching
- 500kHz
- Output Voltage
- 11V
- Duty Cycle(Max)
- 48%
- Operating Temperature
- -40℃~+85℃
- Working Mode
- PWM Modulation
- Feedback System
- Secondary-Side Feedback
- Operating Voltage
- 10V~30V
- Topology
- Flyback
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
The UCx84xA series of fixed-frequency pulse-width modulation (PWM) controllers are designed to operate at a switching frequency of 500kHz. These controllers are designed for peak current mode (PCM) and can be used in both isolated and non-isolated power supply designs. These controllers can drive FETs directly from the output, capable of sourcing and sinking up to 1A of gate drive current. These devices also feature a built-in low-impedance amplifier, which can be used in non-isolated designs to control the power supply output voltage and feedback loop.
Applications
- Switched-Mode Power Supplies (SMPS)
- DC/DC Converters
- Power Modules
- Industrial PSUs
- Battery-Powered PSUs
Key features
- Optimized for off-line and DC/DC converters
- Low startup current (< 0.5mA)
- Trimmed oscillator discharge current
- Automatic feedforward compensation
- Pulse-by-pulse current limiting
- Enhanced load response characteristics
- Undervoltage lockout with hysteresis
- Double pulse suppression
- High-current totem-pole output
- Internally trimmed bandgap reference
- Operating frequency up to 500kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UC2844AQD8R-TUDI#C42372906Tudi · SOP-8 | Tudi | SOP-8 | 961 | ₹85.21 · 961 in stock | View |
 | UC2843AQD8RQ1#C544622TI · SOIC-8 | TI | SOIC-8 | 1,053 | ₹147.37 · 1,053 in stock | View |
 | UC2843AD8TR-TUDI#C42372901Tudi · SOP-8 | Tudi | SOP-8 | 660 | ₹35.11 · 660 in stock | View |
 | UC2843AQD8RQ1-TUDI#C42372902Tudi · SOP-8 | Tudi | SOP-8 | 425 | ₹36.85 · 425 in stock | View |
 | UC2843AD8TR#C111814TI · SOIC-8 | TI | SOIC-8 | 1,173 | ₹59.31 · 1,173 in stock | View |
