TIDatasheet (PDF)

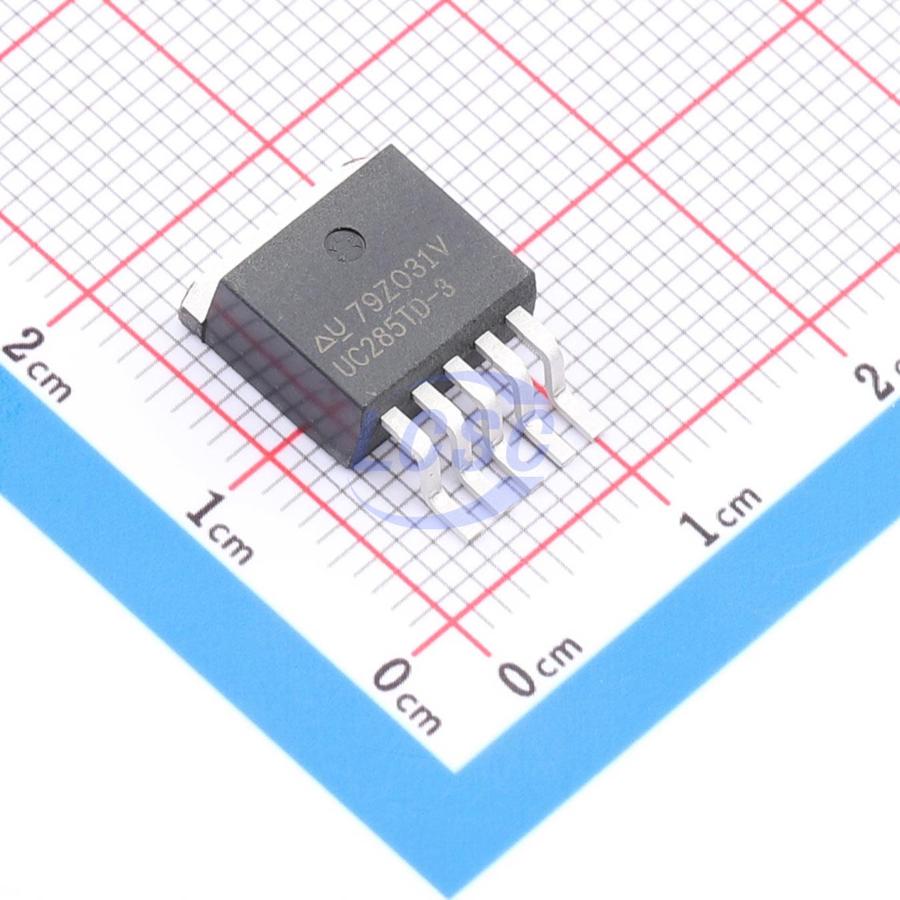

UC285TDKTTT-3
2.5V Positive Fixed TO-263-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-5ROHS3 CompliantActive
5A ultra-low dropout regulator with a working temperature range of -40°C to 100°C and reverse current protection
- Manufacturer
- TI
- Manufacturer part #
- UC285TDKTTT-3
- Store part #
- C2863438
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C2863438
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,768.67 | ₹1,768.67 |
| 10+ | ₹1,712.28 | ₹17,122.80 |
1 × ₹1,768.67
₹1,768.67
excl. GST
₹2,087.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per reel
UC285TDKTTT-3
₹1,768.67 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Configuration
- Positive
- Operating Voltage
- 7.5V
- Output Current
- 5A
- Features
- Short Circuit Protection;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 50 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 25.66 g
Overview
The UC385 is a low dropout linear regulator providing a quick response to fast load changes. Combined with its precision onboard reference, the UC385 excels at driving GTL and BTL buses. Due to its fast response to load transients, the total capacitance required to decouple the regulator’s output can be significantly decreased when compared to standard LDO linear regulators. Dropout voltage (VIN to VOUT) is only 490 mV maximum and 350 mV typical at 5 - A load (Δ⁰C to 100°Cₐ'). The onboard bandgap reference is stable with temperature and scaled for a 1.2 V input to the internal power amplifier. The UC385 is available in fixed output voltages of 1.5 V, 2.1 V, or 2.5 V. The output voltage of the adjustable version can be set with two external resistors. If the external resistors are omitted, the output voltage defaults to 1.2 V.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS75525KTTR#C2866742TI · TO-263-5 | TI | TO-263-5 | 2 | ₹1,283.30 · 2 in stock | View |
| MIC39501-2.5WU-TR#C632793MICROCHIP · TO-263-5 | MICROCHIP | TO-263-5 | On request | ₹900.13 · 0 in stock | View | |
| MIC39501-2.5WU#C641316MICROCHIP · TO-263-5 | MICROCHIP | TO-263-5 | On request | ₹491.93 · 0 in stock | View | |
| UC385TDTR-3#C2870059TI · TO-263-5 | TI | TO-263-5 | On request | ₹1,778.68 · 0 in stock | View | |
| TPS75625KTTR#C2864741TI · TO-263-5 | TI | TO-263-5 | On request | ₹1,164.78 · 0 in stock | View | |
