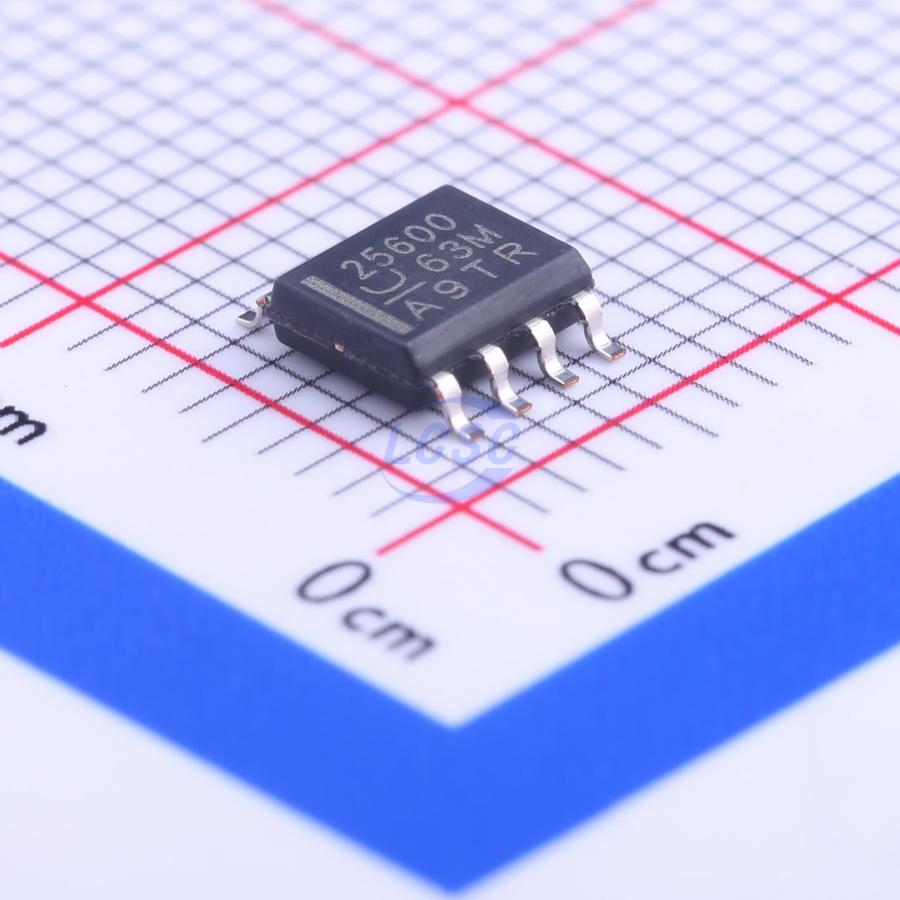

UCC25600DR

The UCC25600 high performance, resonant mode controller is designed for dc-to-dc applications using resonant topologies, especially the LLC half-bridge resonant converter. This highly integrated controller implements frequency modulation control and complete system functions in only an 8-pin package. Switching to the UCC25600 will greatly simplify the system design and layout, and improve time to market, all at a price point lower than competitive 16-pin device offerings. The internal oscillator supports the switching frequencies from 40 kHz to 350 kHz. This high-accuracy oscillator realizes the minimum switching frequency limiting with 4% tolerance, allowing the designer to avoid over-design of the power stage and, thus, further reducing overall system cost. The programmable dead time enables zero-voltage switching with minimum magnetizing current. This maximizes system efficiency across a variety of applications. The programmable soft-start timer maximizes design flexibility demanded by the varied requirements of end equipment using a half-bridge topology. By incorporating a 0.4-A source and 0.8-A sink driving capability, a low cost, reliable gate driver transformer is a real option. The UCC25600 delivers complete system protection functions including overcurrent, UVLO, bias supply OVP, and overtemperature protection.

Applications

• 100-W to 1-kW Power Supplies
• LCD, Plasma, and DLP TVs
• Adaptors, Computing, and ATX Power Supplies
• Home Audio Systems
• Electronic Lighting Ballasts

Key features

• Variable Switching Frequency Control
• Programmable Minimum Switching Frequency With 4% Accuracy (3% Accuracy at Temperature Range: -20°C to 105°C)
• Programmable Maximum Switching Frequency
• Programmable Dead Time for Best Efficiency
• Programmable Soft-Start Time
• Easy ON and OFF Control
• Overcurrent Protection
• Overtemperature Protection
• Bias Voltage UVLO and Overvoltage Protection
• Integrated Gate Driver With 0.4-A Source and 0.8-A Sink Capability
• Operating Temperature Range: -40°C to 125°C
• SOIC 8-Pin Package
