DIODESDatasheet (PDF)

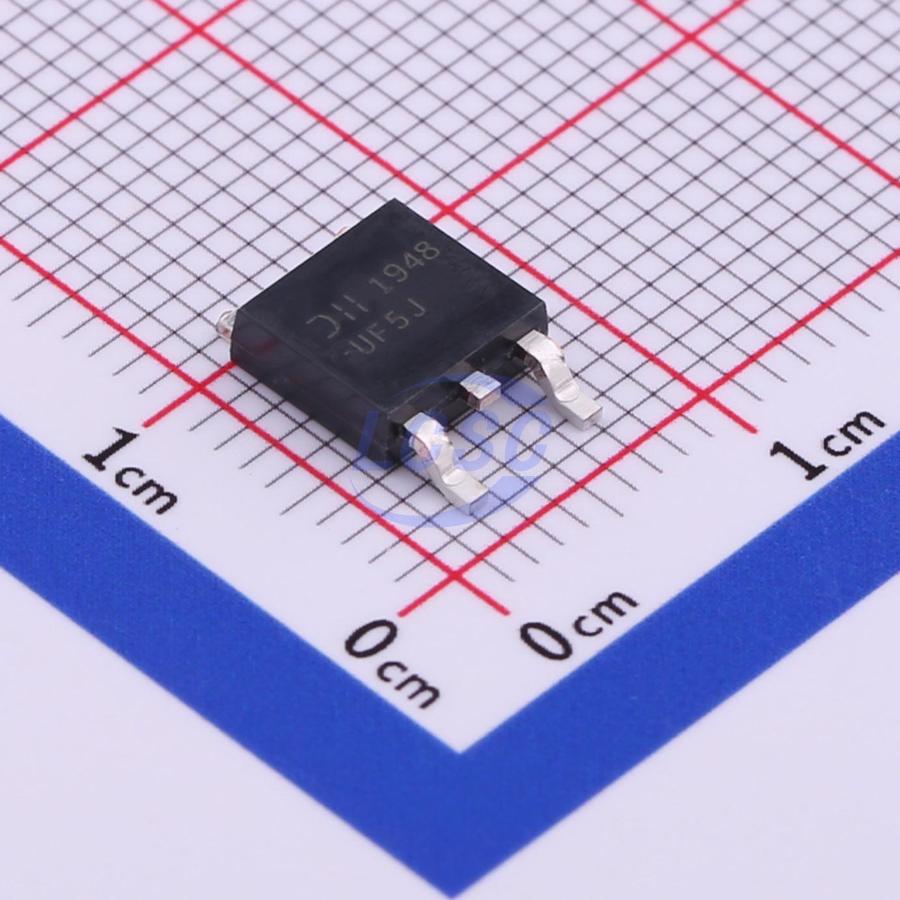

UF5JD1-13
15ns 1 Independent 600V 1.8V@5A 5A TO-252-2 Single Diodes RoHS
TO-252-2ROHS3 CompliantActive
Diode 600V 5A TO-252-2
- Manufacturer
- DIODES
- Manufacturer part #
- UF5JD1-13
- Store part #
- C526775
- Package / case
- TO-252-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,833 in stock
#C526775
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.59 | ₹65.59 |
| 10+ | ₹58.57 | ₹585.70 |
| 30+ | ₹55.16 | ₹1,654.80 |
| 100+ | ₹51.76 | ₹5,176.00 |
| 500+ | ₹49.84 | ₹24,920.00 |
| 1,000+ | ₹48.77 | ₹48,770.00 |
1 × ₹65.59
₹65.59
excl. GST
₹77.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
UF5JD1-13
₹65.59 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 15ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.8V@5A
- Reverse Leakage Current (Ir)
- 570nA@600V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.448 g
Overview
This device is designed for use as a freewheeling and clamping diode in various switching power supplies and other power DCM and CCM PFC applications. It is particularly suitable for switching power supplies, home appliances, office equipment, and telecommunications applications.
Applications
- Switching power supplies
- Home appliances
- Office equipment
- Telecommunications applications
Key features
- Soft, ultra-fast switching capability for high efficiency
- Low leakage current
- High current capability
- Lead-free surface finish; RoHS compliant
- Halogen- and antimony-free, "Green" device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VS-8EWX06FNTR-M3#C2913654VISHAY · TO-252AA(DPAK) | VISHAY | TO-252AA(DPAK) | 6 | ₹96.82 · 6 in stock | View |
 | MUR560CS#C22365355JUXING · TO-252 | JUXING | TO-252 | 450 | ₹20.86 · 450 in stock | View |
 | SFF806YSS#C7427752NH · TO-252 | NH | TO-252 | 2,480 | ₹16.93 · 2,480 in stock | View |
 | SFF806YSU#C7427753NH · TO-252 | NH | TO-252 | 3,380 | ₹13.23 · 3,380 in stock | View |
 | SF506ACS#C700470YANGJIE · TO-252 | YANGJIE | TO-252 | 1 | ₹33.38 · 1 in stock | View |
