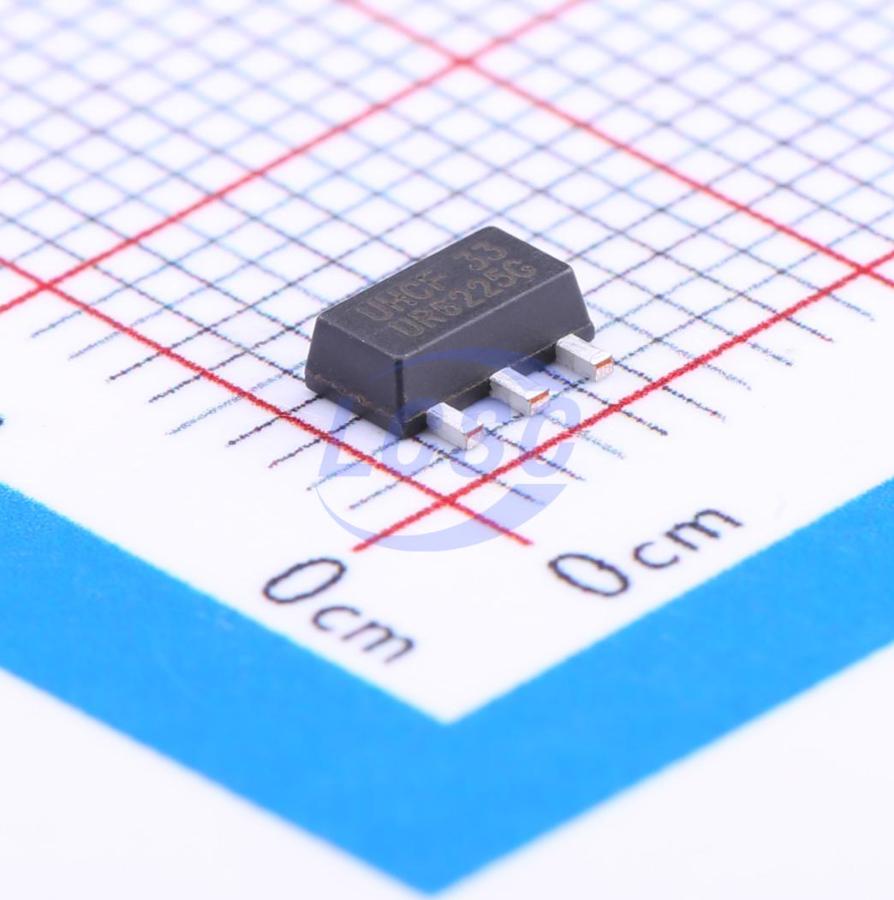

UR6225G-33-AB3-C-R
3.3V Positive Fixed SOT-89-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89-3ROHS CompliantActive
CMOS Positive Voltage Regulator
- Manufacturer
- UTC
- Manufacturer part #
- UR6225G-33-AB3-C-R
- Store part #
- C171443
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,000 in stock
#C171443
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.85 | ₹79.25 |
| 50+ | ₹12.61 | ₹630.50 |
| 150+ | ₹10.99 | ₹1,648.50 |
| 500+ | ₹9.79 | ₹4,895.00 |
| 2,500+ | ₹8.81 | ₹22,025.00 |
| 4,000+ | ₹8.33 | ₹33,320.00 |
5 × ₹15.85
₹79.25
excl. GST
₹93.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
UR6225G-33-AB3-C-R
₹79.25 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 165mA
- Operating Voltage
- 10V
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.144 g
Overview
The UTC UR6225 is a positive voltage output, three-pin regulator that provides a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The UTC UR6225 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient responses to load variations have improved in comparison to the existing series.
Key features
- Maximum Output Current: 300mA (Within Max. Power Dissipation, VOUT = 5.0V)
- Output Voltage Range: 1.5V ~ 6.0V in 0.1V Increments (1.5V ~ 1.9V for Custom Products)
- Highly Accurate: Output Voltage ±2% (±1% for Semi-Custom Products)
- Low Power Consumption: Typ. 2.0μA @ VIN = 5.0V
- Output Voltage Temperature Characteristics: Typ. ±100ppm/°C
- Input Stability: Typ. 0.2%
- Small Input-Output Differential: IOUT = 100mA @ VOUT = 5.0V with a 0.12V Differential
- Over Temperature Protection
