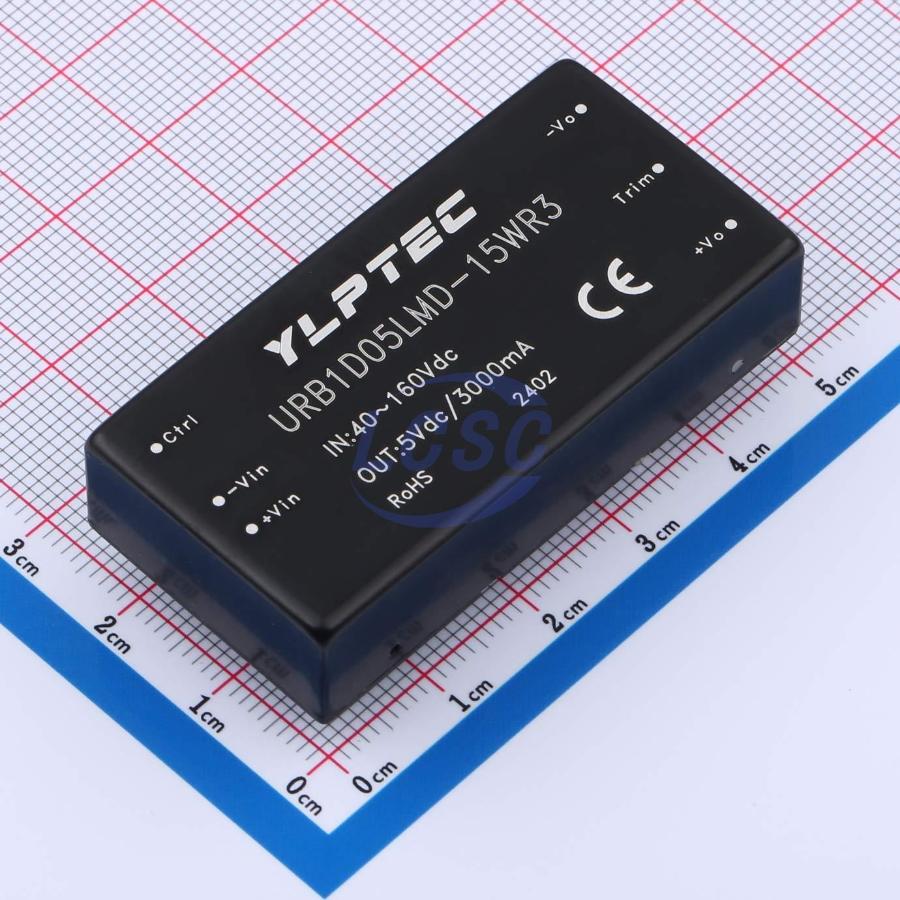

YLPTEC

URB1D05LMD-15WR3

Isolated Module DC DC Converter Buck 1 Output 5V 3000mA 40V~160V Input

DIP,50.8x25.4mmRoHSActive

DC/DC power modules, 15W/20W, ultra-wide voltage input, isolated and regulated single/dual outputs

Manufacturer: YLPTEC
Manufacturer part #: URB1D05LMD-15WR3
Store part #: C19724287
Package / case: DIP,50.8x25.4mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20 in stock

#C19724287

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,736.62	₹1,736.62
10+	₹1,487.66	₹14,876.60
40+	₹1,335.93	₹53,437.20
100+	₹1,208.61	₹1,20,861.00

Quantity (min 1)

1 × ₹1,736.62

₹1,736.62

excl. GST

₹2,049.21 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 20 per tube

URB1D05LMD-15WR3

₹1,736.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Ripple Noise: 50mVp-p
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 20mA
Voltage - Supply: 40V~160V
Capacitive Load(Max): 10000uF
Number of Outputs: 1
Iout: 3A
Height: 11.8mm
Frequency - Switching: 250kHz
Isolation Voltage(Vrms): 2.25kV
Output Power: 15W
Conversion Efficiency: 84%
Features: Under Voltage Protection;Short Circuit Protection;Over Current Protection;Overvoltage protection
Length: 50.8mm
Width: 25.4mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 20 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 38.8 g

Overview

15W/20W, ultra-wide voltage input, isolated regulated single/dual output, DIP package, DC-DC power module. This series delivers 20W output power, 4:1 wide input voltage range, up to 91% efficiency, 2250VDC reinforced isolation voltage, operating temperature range -40°C to +85°C, with input under-voltage protection, output over-voltage, over-current, and short-circuit protection, bare board compliant with CISPR32/EN55032 CLASS A.

Applications

Medical
Industrial Control
Power
Instrumentation
Communications
Railway

Key features

Ultra-wide input range (4:1), 15/20W output
Conversion efficiency 91% (Typ)
Isolation voltage 2250Vdc
Ultra-fast startup: 1ms (Typ)
Operating temperature range: -40°C ~ +85°C
Input undervoltage protection, output short-circuit, overcurrent, overvoltage protection
Metal case, low output ripple
Industry-standard pinout, DIP PCB mounting
