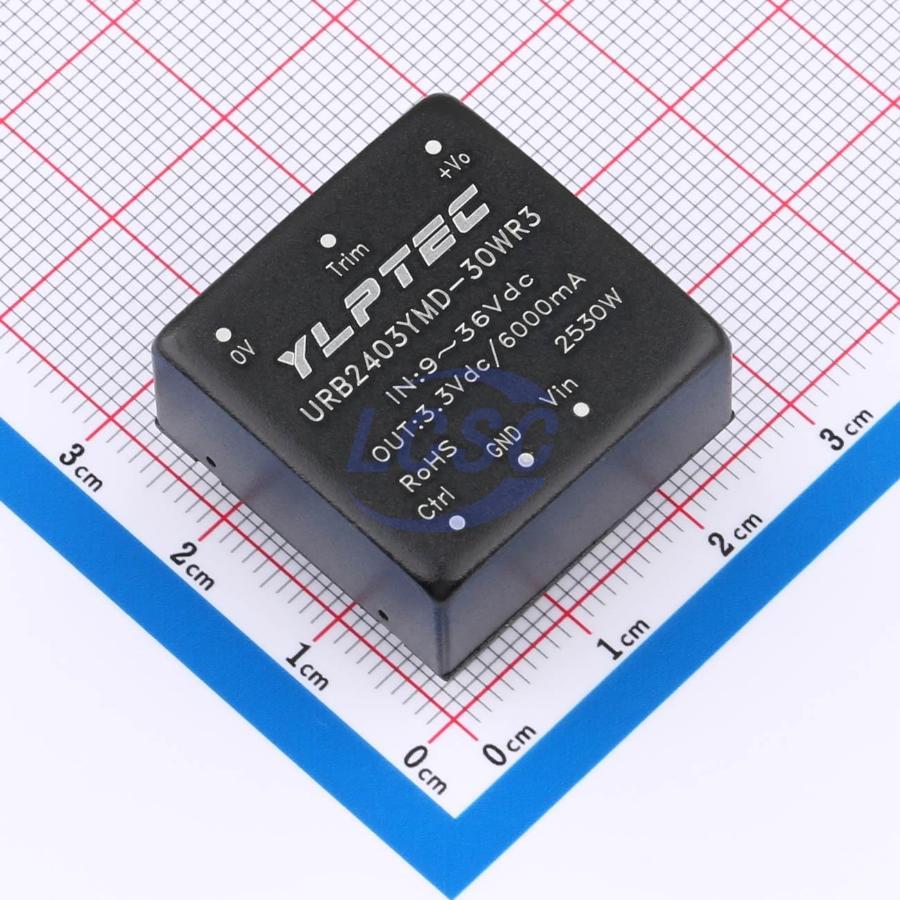

URB2403YMD-30WR3 YLPTEC

URB2403YMD-30WR3

3.3V 9V~36V DIP,25.4x25.4mm DC DC Converters

DIP,25.4x25.4mmRoHSActive

Manufacturer: YLPTEC
Manufacturer part #: URB2403YMD-30WR3
Store part #: C49242257
Package / case: DIP,25.4x25.4mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C49242257

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,869.60	₹1,869.60
10+	₹1,783.80	₹17,838.00
40+	₹1,635.06	₹65,402.40
80+	₹1,505.27	₹1,20,421.60

Quantity (min 1)

1 × ₹1,869.60

₹1,869.60

excl. GST

₹2,206.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 40 per tube

URB2403YMD-30WR3

₹1,869.60 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Ripple Noise: 100mVp-p
Operating Temperature: -40℃~+105℃
Voltage - Supply: 9V~36V
Capacitive Load(Max): 8000uF
Number of Outputs: 1
Iout: 6A
Height: 12mm
Frequency - Switching: 330kHz
Isolation Voltage(Vrms): 1.5kV
Conversion Efficiency: 84%
Features: Short Circuit Protection;Over Current Protection;Overvoltage protection;Under Voltage Protection
Output Power: 30W
Length: 25.4mm
Width: 25.4mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 40 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 21.875 g

Overview

Applications

Industrial, power, instrumentation, communications, rail transit, and more

Key features

Package: 1×1 inch
Input Voltage Range: 4:1
Operating Temperature: -40℃ ~ +105℃
Isolation Voltage: 1500VDC
Full-Load Efficiency: 91% (typical)
Output short-circuit protection, overcurrent protection, and overvoltage protection
