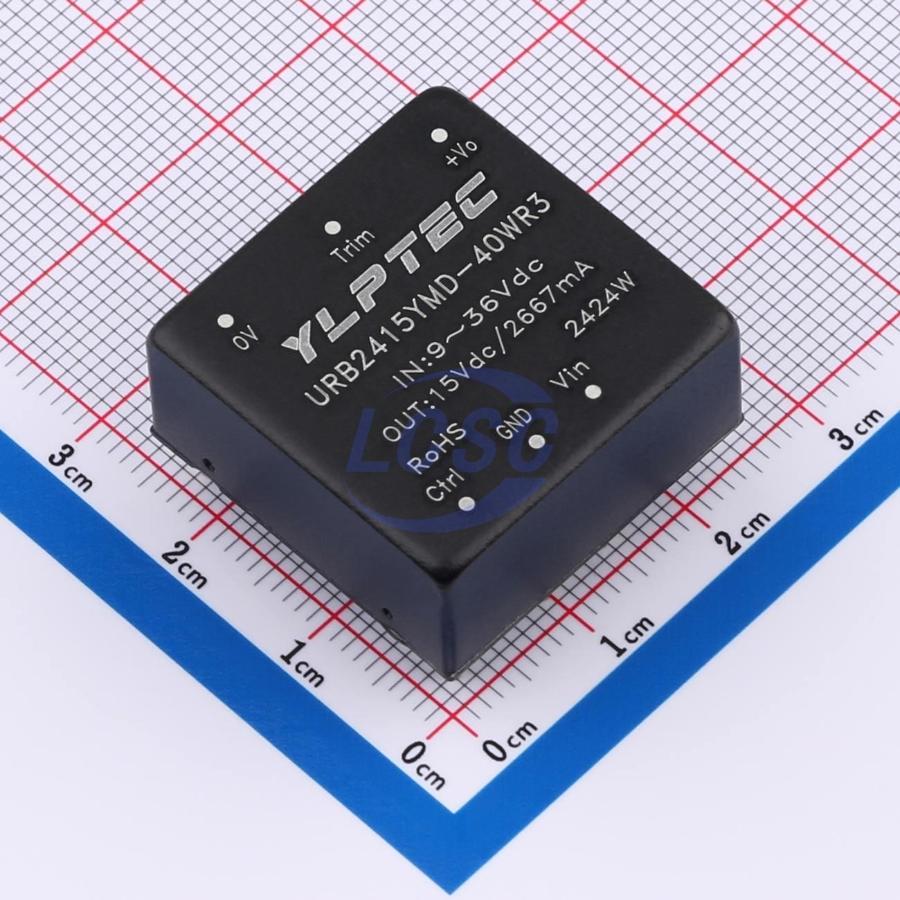

URB2415YMD-40WR3 YLPTEC

URB2415YMD-40WR3

Isolated Module DC DC Converter 1 Output 15V 2.667A 9V~36V Input

Through Hole,25.4x25.4mmRoHSActive

DC DC CONVERTER 15V 40W

Manufacturer: YLPTEC
Manufacturer part #: URB2415YMD-40WR3
Store part #: C22750045
Package / case: Through Hole,25.4x25.4mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

26 in stock

#C22750045

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹2,775.44	₹2,775.44
27+	₹2,636.06	₹71,173.62

Quantity (min 1)

1 × ₹2,775.44

₹2,775.44

excl. GST

₹3,275.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 9 per tube

URB2415YMD-40WR3

₹2,775.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 15V
Ripple Noise: 100mVp-p
Operating Temperature: -40℃~+105℃
Voltage - Supply: 9V~36V
Capacitive Load(Max): 1680uF
Number of Outputs: 1
Iout: 2.667A
Height: 12mm
Frequency - Switching: 330kHz
Isolation Voltage(Vrms): 1.5kV
Output Power: 40W
Conversion Efficiency: 92%
Features: Short Circuit Protection;Over Current Protection;Overvoltage protection;Under Voltage Protection
Length: 25.4mm
Width: 25.4mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 9 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 23.231 g

Overview

Applications

Industrial, power, instrumentation, communications, rail transit, and more

Key features

Package: 1"×1"
Input Voltage: 4:1
Operating Temperature: -40°C ~ +105°C
Isolation Voltage: 1500VDC
Full-load Efficiency: 92% (typical)
Output short-circuit, overcurrent, and overvoltage protection

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	URB2412YMD-40WR3#C22750044YLPTEC · Through Hole,25.4x25.4mm	YLPTEC	Through Hole,25.4x25.4mm	281	₹2,752.51 · 281 in stock	View
