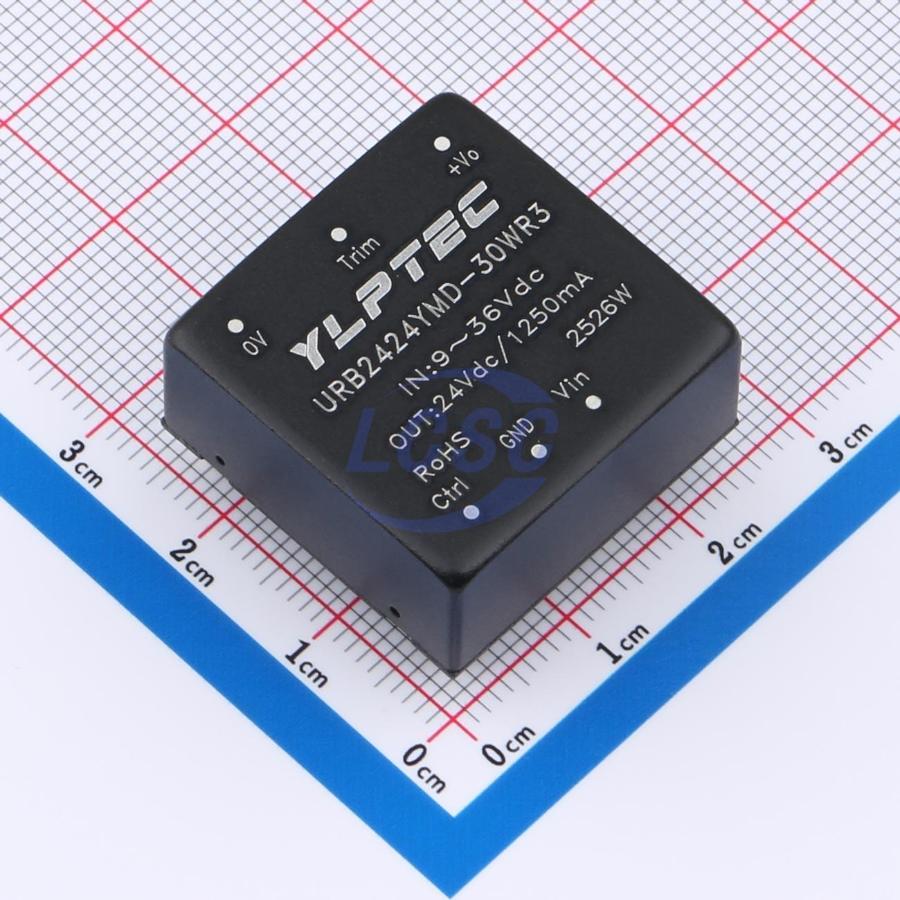

URB2424YMD-30WR3 YLPTEC

URB2424YMD-30WR3

24V 9V~36V DIP,25.4x25.4mm DC DC Converters

DIP,25.4x25.4mmRoHSActive

Manufacturer: YLPTEC
Manufacturer part #: URB2424YMD-30WR3
Store part #: C49242262
Package / case: DIP,25.4x25.4mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

28 in stock

#C49242262

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,812.23	₹1,812.23
10+	₹1,726.66	₹17,266.60
40+	₹1,578.33	₹63,133.20
80+	₹1,448.66	₹1,15,892.80

Quantity (min 1)

1 × ₹1,812.23

₹1,812.23

excl. GST

₹2,138.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 40 per tube

URB2424YMD-30WR3

₹1,812.23 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 24V
Ripple Noise: 100mVp-p
Operating Temperature: -40℃~+105℃
Voltage - Supply: 9V~36V
Capacitive Load(Max): 1000uF
Number of Outputs: 1
Iout: 1.25A
Height: 12mm
Frequency - Switching: 330kHz
Isolation Voltage(Vrms): 1.5kV
Features: Short Circuit Protection;Over Current Protection;Overvoltage protection;Under Voltage Protection
Output Power: 30W
Conversion Efficiency: 90%
Length: 25.4mm
Width: 25.4mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 40 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 22.44 g

Overview

Applications

Industrial, power, instrumentation, communications, rail transit, and more

Key features

Package: 1×1 inch
Input Voltage Range: 4:1
Operating Temperature: -40℃ ~ +105℃
Isolation Voltage: 1500VDC
Full-Load Efficiency: 91% (typical)
Output short-circuit protection, overcurrent protection, and overvoltage protection
