DIODESDatasheet (PDF)

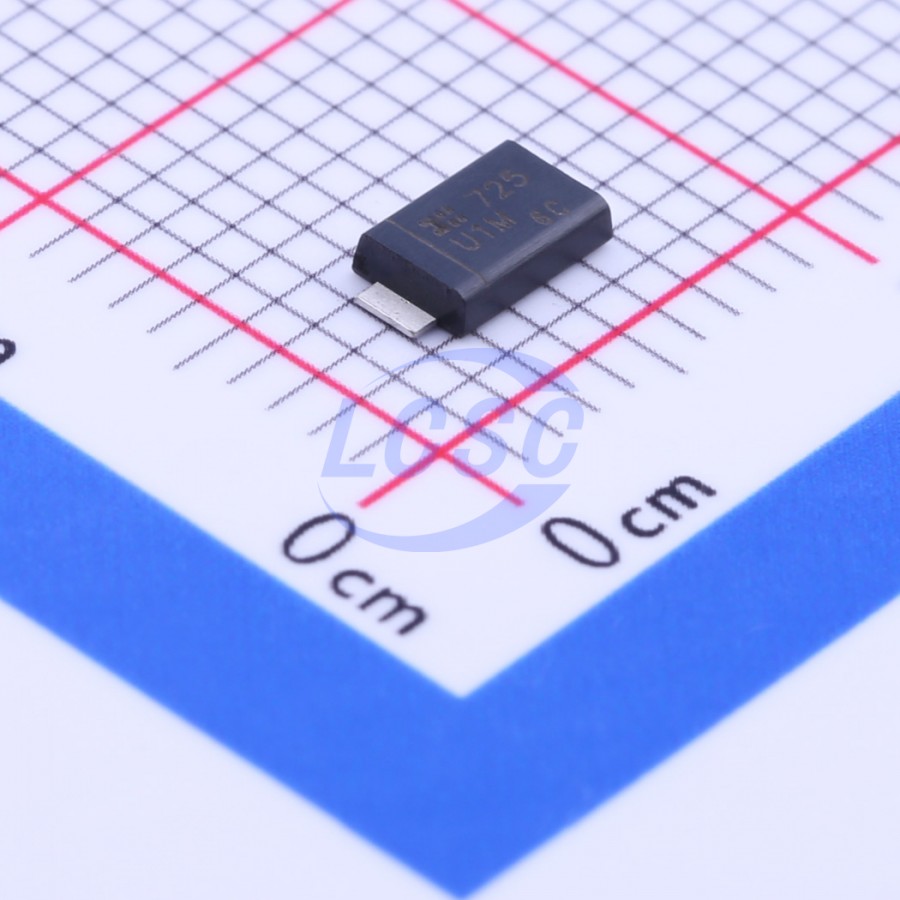

US1MDF-13
75ns 1kV 1.7V@1A 1A D-FLAT Single Diodes RoHS
D-FLATROHS CompliantActive
Diode 1kV 1A SMD
- Manufacturer
- DIODES
- Manufacturer part #
- US1MDF-13
- Store part #
- C155239
- Package / case
- D-FLAT
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,475 in stock
#C155239
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.36 | ₹151.80 |
| 50+ | ₹24.11 | ₹1,205.50 |
| 150+ | ₹21.42 | ₹3,213.00 |
| 500+ | ₹18.07 | ₹9,035.00 |
| 2,500+ | ₹16.59 | ₹41,475.00 |
| 5,000+ | ₹15.69 | ₹78,450.00 |
5 × ₹30.36
₹151.80
excl. GST
₹179.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
US1MDF-13
₹151.80 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 75ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.7V@1A
- Reverse Leakage Current (Ir)
- 5uA@1kV
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.102 g
Overview
The US1JDF and US1MDF are rectifiers packaged in the low profile D-FLAT package. Providing ultra-fast recovery time for high efficiency, this device is ideal for use in general rectification applications.
Applications
- Switching Mode Power Supply
- DC-DC Converter
Key features
- Glass Passivated Die Construction
- Ultra-Fast Recovery Time for High Efficiency
- Surge Overload Rating to 30A Peak
- High Current Capability
- Low Profile Design, Package Height Less than 1.1mm
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
