onsemiDatasheet (PDF)

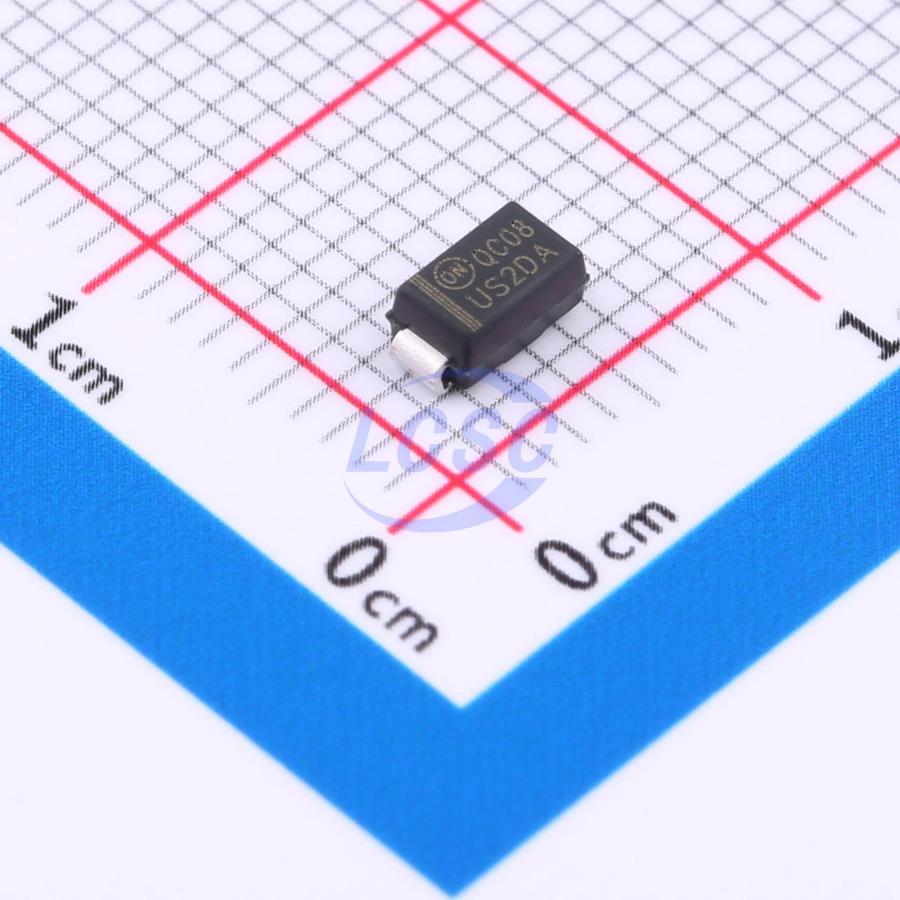

US2DA
50ns 1 Independent 200V 1V@1.5A 1.5A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Diode 200V 1.5A SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- US2DA
- Store part #
- C896159
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
140 in stock
#C896159
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.05 | ₹195.25 |
| 50+ | ₹30.26 | ₹1,513.00 |
| 150+ | ₹26.49 | ₹3,973.50 |
| 500+ | ₹21.78 | ₹10,890.00 |
| 2,500+ | ₹19.67 | ₹49,175.00 |
| 7,500+ | ₹18.42 | ₹1,38,150.00 |
5 × ₹39.05
₹195.25
excl. GST
₹230.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
US2DA
₹195.25 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1V@1.5A
- Reverse Leakage Current (Ir)
- 5uA@200V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
Key features
- Glass Passivated Chip Junction
- High Surge Capacity
- Low Forward Voltage Drop
- Fast Switching with Reverse Recovery Time: 50∼75 ns Maximum
- UL Flammability 94V - 0 Classification
- MSL 1 per J−STD−020
- RoHS Compliant / Green Molding Compound
- NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | US2D#C123951Jingdao Microelectronics · SMA | Jingdao Microelectronics | SMA | 4,900 | ₹2.51 · 4,900 in stock | View |
 | US2D#C15875MDD(Microdiode Semiconductor) · SMA | MDD(Microdiode Semiconductor) | SMA | 31,060 | ₹3.41 · 31,060 in stock | View |
 | US2D#C2900674BLUE ROCKET · SMA | BLUE ROCKET | SMA | 4,500 | ₹2.79 · 4,500 in stock | View |
 | US2D#C2936059Slkor · SMA(DO-214AC) | Slkor | SMA(DO-214AC) | 950 | ₹1.98 · 950 in stock | View |
 | US2D-TD#C48606582TDSEMIC · SMA | TDSEMIC | SMA | 2,000 | ₹2.41 · 2,000 in stock | View |
