VISHAYDatasheet (PDF)

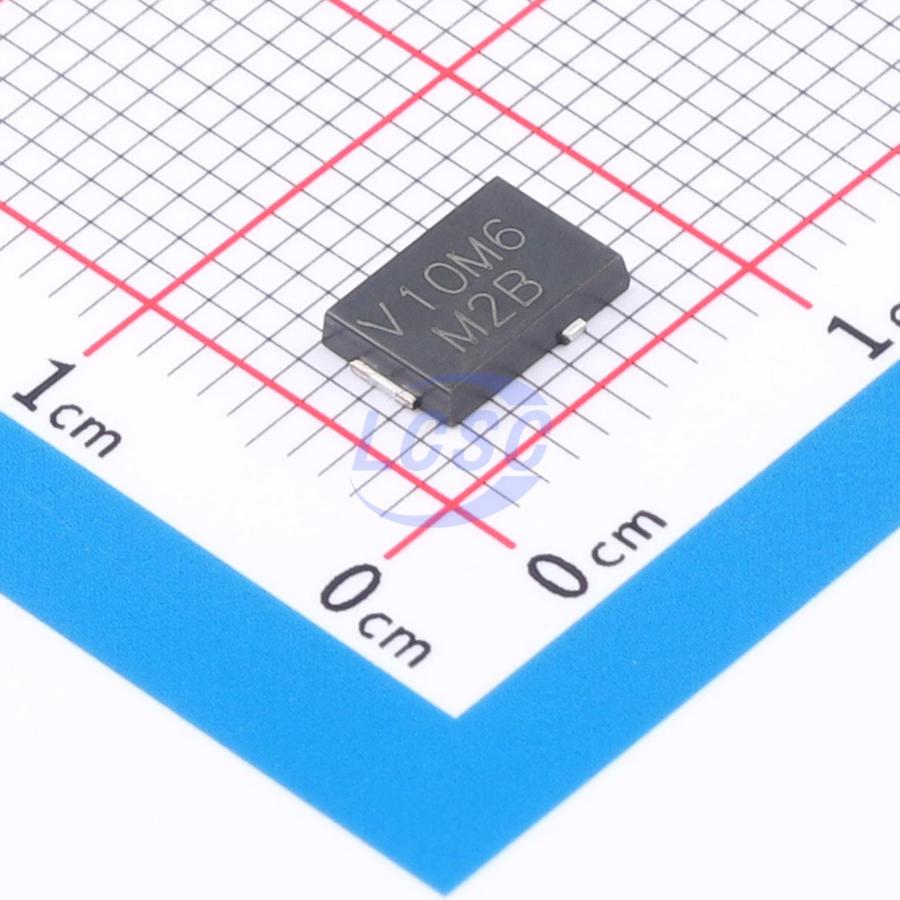

V10PM6HM3/H
1 Independent 60V 640mV@10A 10A TO-277A Single Diodes RoHS
TO-277AROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- V10PM6HM3/H
- Store part #
- C7094802
- Package / case
- TO-277A
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7094802
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.77 | ₹203.77 |
| 10+ | ₹200.75 | ₹2,007.50 |
| 30+ | ₹199.05 | ₹5,971.50 |
| 100+ | ₹197.10 | ₹19,710.00 |
1 × ₹203.77
₹203.77
excl. GST
₹240.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
V10PM6HM3/H
₹203.77 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 640mV@10A
- Reverse Leakage Current (Ir)
- 800uA@60V
- Non-Repetitive Peak Forward Surge Current
- 180A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
High current density surface mount TMBS (Trench MOS Barrier Schottky) rectifier. Ultra-low VF of 0.39 V at IF = 5 A; SMPC (TO-277A) package.
Applications
- Suitable for low-voltage high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Ultra-thin profile, typical height 1.1mm
- Trench MOS Schottky technology
- Low forward voltage drop, low power loss, high operating efficiency
- MSL Level 1 per J-STD-020, LF max peak 260℃
- AEC-Q101 qualified products available
- Automotive ordering code; base part number HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V10P8-M3/86A#C3758408VISHAY · TO-277A | VISHAY | TO-277A | 1,400 | ₹75.56 · 1,400 in stock | View |
 | V10P10HM3_A/H#C3759968VISHAY · TO-277A | VISHAY | TO-277A | On request | ₹62.88 · 0 in stock | View |
 | V10P10-M3/86A#C50188VISHAY · TO-277A | VISHAY | TO-277A | 5,978 | ₹66.96 · 5,978 in stock | View |
 | V10P6HM3_A/H#C5346022VISHAY · TO-277A | VISHAY | TO-277A | 92 | ₹174.76 · 92 in stock | View |
 | SP10100L#C5375264XCH · TO-277B | XCH | TO-277B | 3,555 | ₹27.61 · 3,555 in stock | View |
