VISHAYDatasheet (PDF)

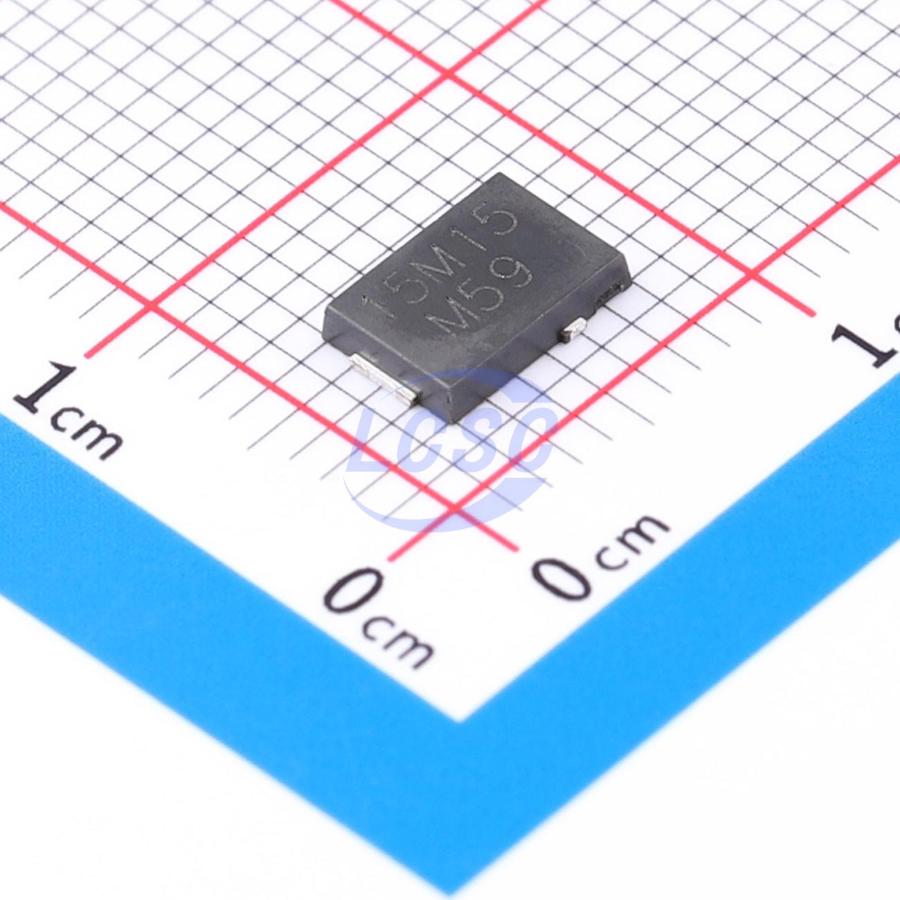

V15PM15-M3/H
1 Independent 150V 1.08V@15A 15A TO-277A Single Diodes RoHS
TO-277AROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- V15PM15-M3/H
- Store part #
- C7408115
- Package / case
- TO-277A
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C7408115
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹197.54 | ₹197.54 |
| 10+ | ₹171.74 | ₹1,717.40 |
| 30+ | ₹157.77 | ₹4,733.10 |
| 100+ | ₹141.65 | ₹14,165.00 |
| 500+ | ₹134.56 | ₹67,280.00 |
| 1,500+ | ₹131.33 | ₹1,96,995.00 |
1 × ₹197.54
₹197.54
excl. GST
₹233.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
V15PM15-M3/H
₹197.54 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Voltage - Forward(Vf@If)
- 1.08V@15A
- Reverse Leakage Current (Ir)
- 300uA@150V
- Non-Repetitive Peak Forward Surge Current
- 220A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.325 g
Overview
Applications
- For use in low-voltage high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Ultra-thin profile — typical height 1.1mm
- Trench MOS Schottky technology
- Low forward voltage drop, low power loss, high-efficiency operation
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified parts available
- Automotive grade ordering code; base part number HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V15P15-M3/H#C5815786VISHAY · TO-277A | VISHAY | TO-277A | 617 | ₹139.93 · 617 in stock | View |
 | SS20150SP#C55073211YFW · TO-277 | YFW | TO-277 | 50 | ₹37.06 · 50 in stock | View |
 | SS20200SP#C50326964YFW · TO-277 | YFW | TO-277 | 4,777 | ₹54.16 · 4,777 in stock | View |
 | SB15200L#C54950740Slkor · TO-277 | Slkor | TO-277 | 4,925 | ₹44.19 · 4,925 in stock | View |
 | SB20150#C55269737R+O · TO-277 | R+O | TO-277 | 4,625 | ₹48.26 · 4,625 in stock | View |
