VISHAYDatasheet (PDF)

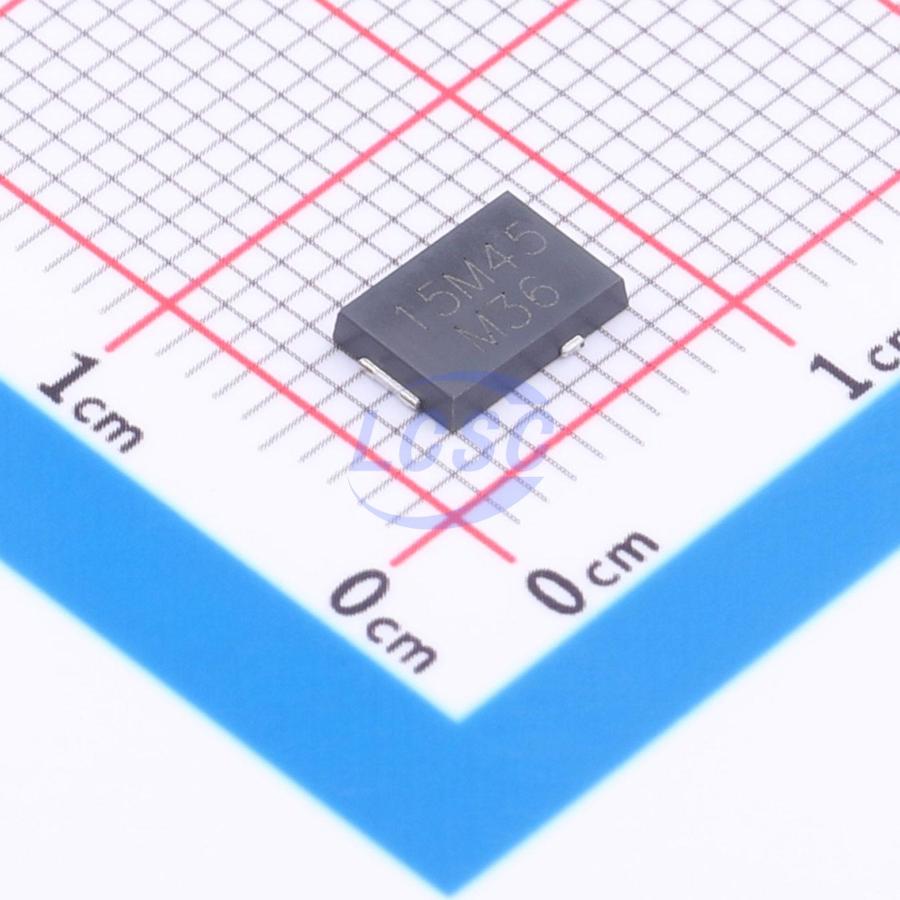

V15PM45HM3/H
1 Independent 45V 600mV@15A 15A TO-277A Single Diodes RoHS
TO-277AROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- V15PM45HM3/H
- Store part #
- C3758370
- Package / case
- TO-277A
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C3758370
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹232.13 | ₹232.13 |
| 10+ | ₹228.48 | ₹2,284.80 |
| 30+ | ₹226.13 | ₹6,783.90 |
| 100+ | ₹223.55 | ₹22,355.00 |
1 × ₹232.13
₹232.13
excl. GST
₹273.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
V15PM45HM3/H
₹232.13 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 600mV@15A
- Reverse Leakage Current (Ir)
- 700uA@45V
- Non-Repetitive Peak Forward Surge Current
- 220A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5 g
Overview
Applications
- For use in low-voltage high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Ultra-thin profile, typical height 1.1mm
- Trench MOS Schottky technology
- Low forward voltage drop, low power loss, high operating efficiency
- MSL Level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified parts available
- Automotive-grade ordering codes available, base part number HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| V15PM6HM3/H#C3757327VISHAY · TO-277A | VISHAY | TO-277A | 13 | ₹193.40 · 13 in stock | View | |
| V15PM6-M3/H#C7137730VISHAY · TO-277A | VISHAY | TO-277A | 10 | ₹243.10 · 10 in stock | View | |
| V15P8-M3/86A#C115394VISHAY · TO-277A | VISHAY | TO-277A | 437 | ₹155.62 · 437 in stock | View | |
 | V15P8HM3_A/H#C7137722VISHAY · TO-277A | VISHAY | TO-277A | 15 | ₹146.58 · 15 in stock | View |
 | V15P45S-M3/86A#C7374710VISHAY · TO-277A | VISHAY | TO-277A | 110 | ₹325.09 · 110 in stock | View |
