TE ConnectivityDatasheet (PDF)

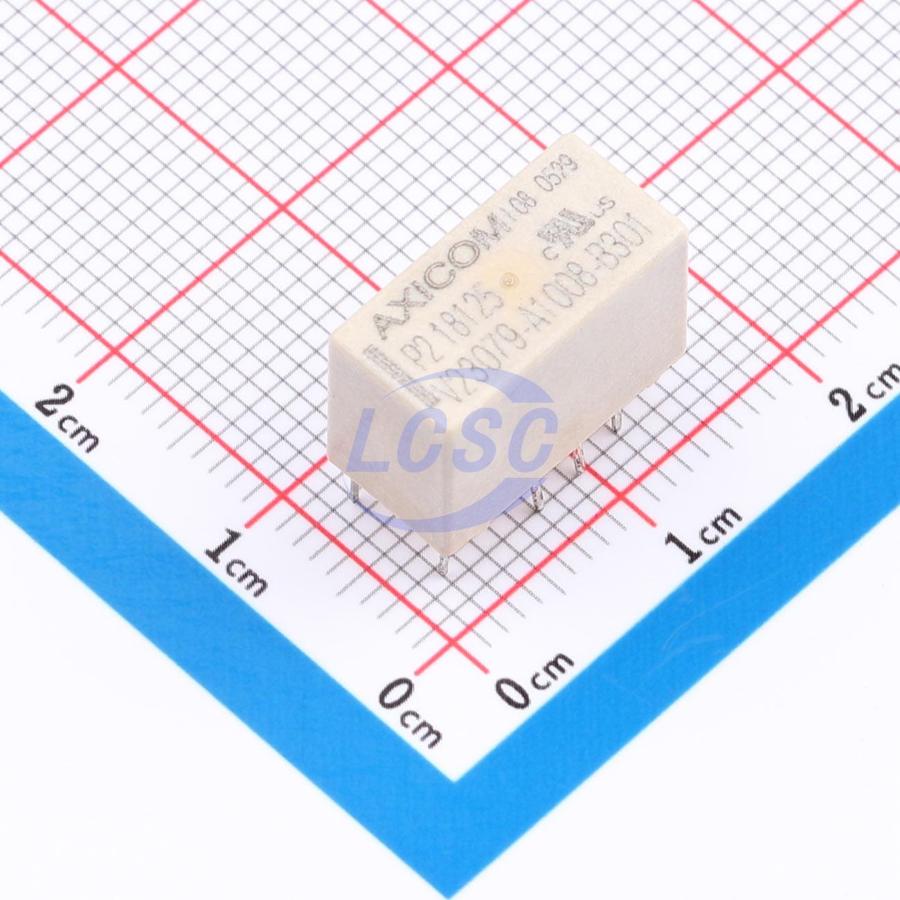

V23079A1008B301
3V 2A Two sets of changeover: 2C (DPDT) DIP,7.2x14.5mm Signal Relays, Up to 2 Amps RoHS
DIP,7.2x14.5mmROHS3 CompliantActive
- Manufacturer
- TE Connectivity
- Manufacturer part #
- V23079A1008B301
- Store part #
- C1525384
- Package / case
- DIP,7.2x14.5mm
- Category
- Signal Relays, Up to 2 Amps
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1525384
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹720.00 | ₹720.00 |
| 10+ | ₹706.09 | ₹7,060.90 |
| 30+ | ₹696.81 | ₹20,904.30 |
| 100+ | ₹687.54 | ₹68,754.00 |
1 × ₹720.00
₹720.00
excl. GST
₹849.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
V23079A1008B301
₹720.00 for 1 + GST
Specifications
- Coil Type
- Polarized-Single Coil
- Coil Resistance
- 64Ω
- Coil Voltage
- 3V
- Release Time
- 4ms
- Operate Time
- 4ms
- Operating Temperature
- -40℃~+85℃
- Width
- 7.2mm
- Length
- 14.5mm
- Height
- 9.8mm
- Contact Rating
- 300mA@110VDC;500mA@30VAC;500mA@120VAC;250mA@240VAC;1A@125VAC;500mA@125VDC
- Switching Voltage(Max)
- 250V@AC;220V@DC
- Switching Current(Max)
- 2A
- Contact Form
- Two sets of changeover: 2C (DPDT)
- Coil Rated Power
- 140mW
- Contact Material
- AgNi + Gold plated
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.39 g
Overview
Applications
- Communications equipment linecard application (ringing and test access)
- PABX
- voice over IP
- office equipment
- measurement and control equipment
- automotive equipment as CAN bus
- keyless entry
- speaker switch
- medical equipment
- consumer electronics
- set top boxes
- HiFi
Key features
- Standard telecom relay (ringing and test access)
- Slim line 15x7.5mm (.590x.295”)
- Max. switching current 5A
- 2 form C bifurcated contacts (2 changeover contacts, 2 CO)
- Immersion cleanable
- High sensitivity for low power consumption 140mW/ 70mW
- Single coil version with surge voltage resistance between contact and coil: 2.5kV (2/10μs) meets the Telcordia Requirement GR - 1089, 1.5kV (10/160μs) meets FCC Part 68
