VISHAYDatasheet (PDF)

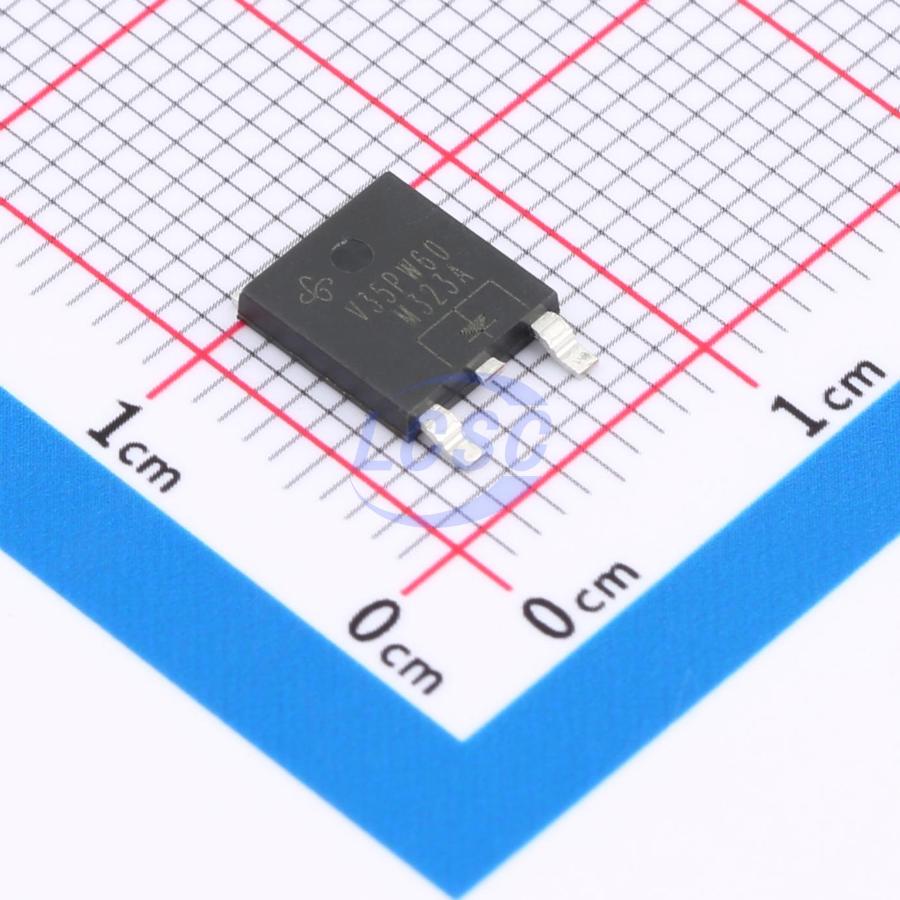

V35PW60HM3/I
Diode Independent 60V 35A Surface Mount TO-252-3
TO-252-3ROHS3 CompliantActive
DIODE SCHOTTKY 60V TO-252-3
- Manufacturer
- VISHAY
- Manufacturer part #
- V35PW60HM3/I
- Store part #
- C6736968
- Package / case
- TO-252-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
39 in stock
#C6736968
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.07 | ₹144.07 |
| 10+ | ₹140.60 | ₹1,406.00 |
| 30+ | ₹138.43 | ₹4,152.90 |
| 100+ | ₹136.26 | ₹13,626.00 |
1 × ₹144.07
₹144.07
excl. GST
₹170.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
V35PW60HM3/I
₹144.07 for 1 + GST
Specifications
- Diode Configuration
- Standalone
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 720mV@35A
- Reverse Leakage Current (Ir)
- 5mA@60V
- Non-Repetitive Peak Forward Surge Current
- 260A
- Current - Rectified
- 35A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.475 g
Overview
High current density surface mount TMBS (Trench MOS Barrier Schottky) rectifier. Ultra-low VF = 0.31 V at IF = 5 A. eSMP series, SlimDPAK (TO-252AE) package.
Applications
- For use in low-voltage, high-frequency DC/DC converters, freewheeling diode, and polarity protection applications.
Key features
- Ultra-low profile, typical height 1.3mm
- Trench MOS Schottky technology
- Suitable for automated placement
- Low forward voltage drop, low power loss, high-efficiency operation
- MSL Level 1 per J-STD-020, LF max peak 260°C
- AEC-Q101 qualified available
- Automotive order code: base part number NHM3
