VISHAYDatasheet (PDF)

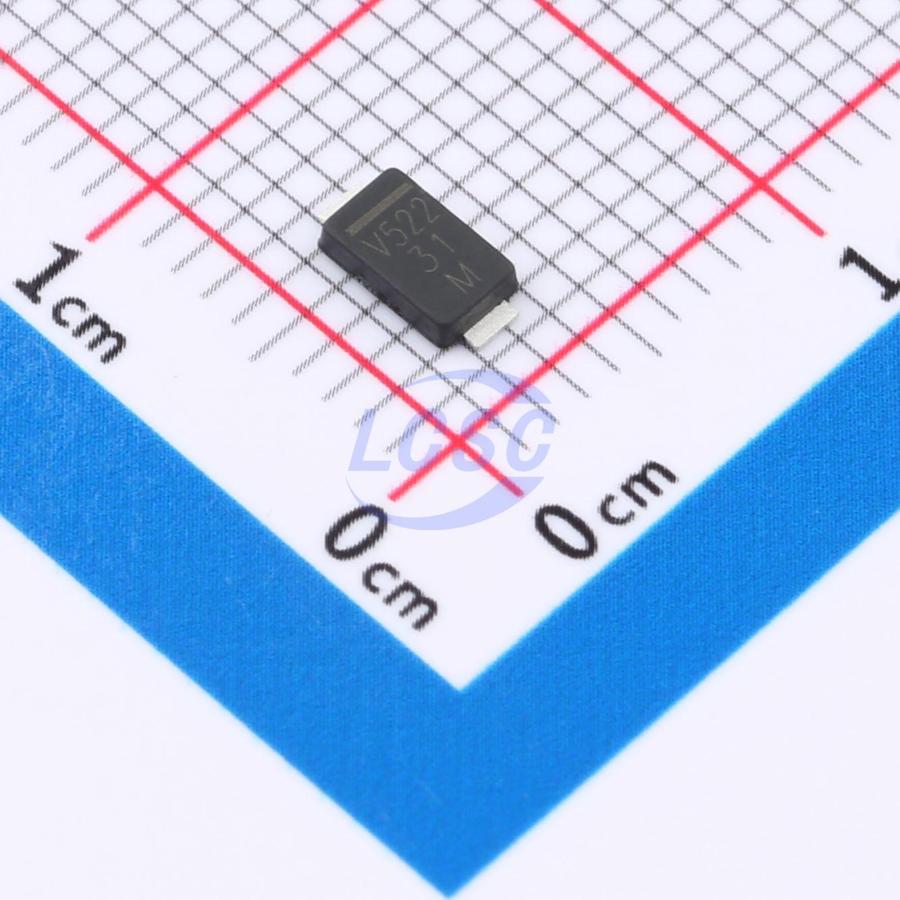

V5PA22-M3/I
Diode 1 Independent 200V 2.3A Surface Mount DO-221BC(SMPA)
DO-221BC(SMPA)ROHS3 CompliantActive
DIODE SCHOTTKY 200V DO-221BC(SMPA)
- Manufacturer
- VISHAY
- Manufacturer part #
- V5PA22-M3/I
- Store part #
- C6014509
- Package / case
- DO-221BC(SMPA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C6014509
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.38 | ₹57.38 |
| 10+ | ₹56.07 | ₹560.70 |
| 30+ | ₹55.20 | ₹1,656.00 |
| 100+ | ₹54.34 | ₹5,434.00 |
1 × ₹57.38
₹57.38
excl. GST
₹67.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 14,000 per reel
V5PA22-M3/I
₹57.38 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 900mV@5A
- Reverse Leakage Current (Ir)
- 50uA@200V
- Non-Repetitive Peak Forward Surge Current
- 90A
- Current - Rectified
- 2.3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 14,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.193 g
Overview
Applications
- For use in high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial and automotive applications.
Key features
- Very low profile
- typical height of 0.95 mm
- Trench MOS Schottky technology
- Low power losses, high efficiency
- Low forward voltage drop
- Meets MSL level 1, per J-STD-020, LE maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: P/NH-3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V8PA22-M3/H#C6738483VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | 10 | ₹120.17 · 10 in stock | View |
| V8PA22HM3/I#C5821154VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | On request | ₹131.98 · 0 in stock | View | |
| V8PA22-M3/I#C7140911VISHAY · DO-221BC(SMPA) | VISHAY | DO-221BC(SMPA) | On request | ₹82.95 · 0 in stock | View | |
