VISHAYDatasheet (PDF)

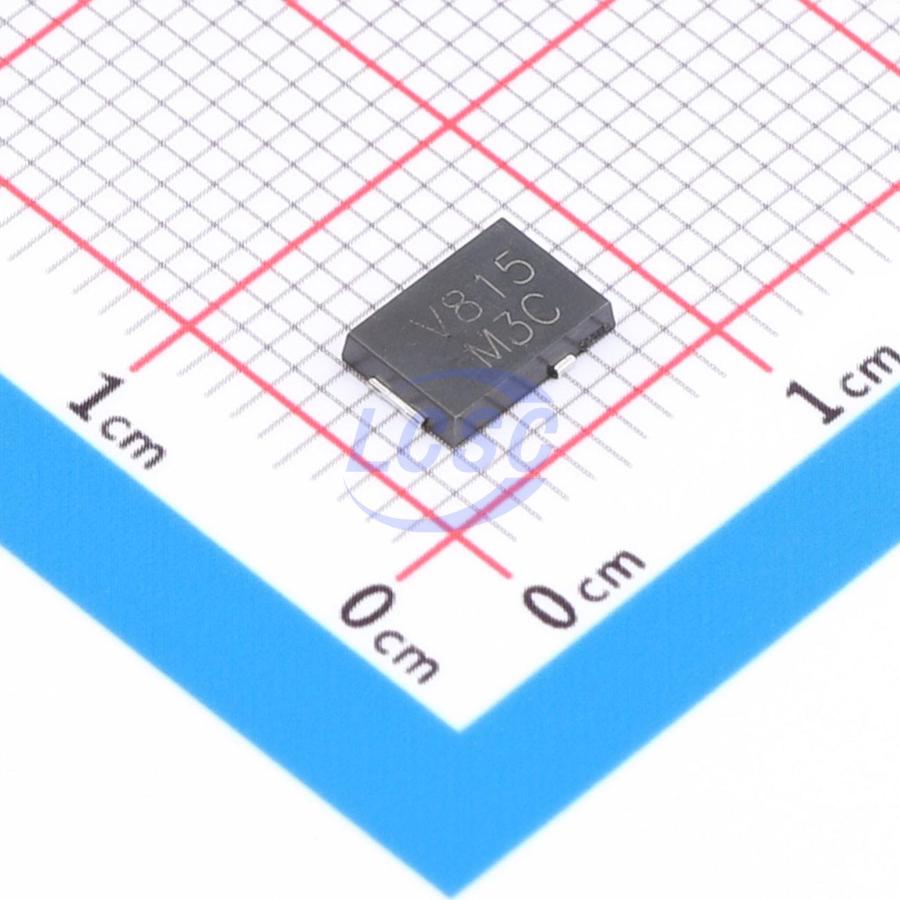

V8P15HM3/H
1 Independent 150V 1.08V@8A 8A TO-277A Single Diodes RoHS
TO-277AROHS3 CompliantActive
DIODE SCHOTTKY 150V TO-277A
- Manufacturer
- VISHAY
- Manufacturer part #
- V8P15HM3/H
- Store part #
- C6912890
- Package / case
- TO-277A
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C6912890
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.90 | ₹174.50 |
| 50+ | ₹34.33 | ₹1,716.50 |
| 150+ | ₹33.96 | ₹5,094.00 |
| 500+ | ₹33.58 | ₹16,790.00 |
5 × ₹34.90
₹174.50
excl. GST
₹205.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
V8P15HM3/H
₹174.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Voltage - Forward(Vf@If)
- 1.08V@8A
- Reverse Leakage Current (Ir)
- 150uA@150V
- Non-Repetitive Peak Forward Surge Current
- 140A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.211 g
Overview
Applications
- Suitable for low-voltage high-frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Ultra-thin profile, typical height of 1.1mm
- Ideal for automatic placement
- Trench MOS Schottky technology
- Low forward voltage drop, low power dissipation, high operating efficiency
- MSL level 1 per J-STD-020, LF max peak temperature 260°C
- AEC-Q101 qualified versions available
- Automotive grade ordering code; base part number NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| V8P15-M3/H#C3757771VISHAY · TO-277A | VISHAY | TO-277A | 78 | ₹74.66 · 78 in stock | View | |
 | V8PM15-M3/H#C6315780VISHAY · TO-277A | VISHAY | TO-277A | 137 | ₹139.29 · 137 in stock | View |
 | V10P20-M3/86A-HXY#C53262815HXY MOSFET · TO-277 | HXY MOSFET | TO-277 | 187 | ₹59.93 · 187 in stock | View |
 | V8PM15HM3/H#C6591554VISHAY · TO-277A | VISHAY | TO-277A | 3 | ₹65.63 · 3 in stock | View |
 | V10P15-M3/H#C20613360VISHAY · SMPC(TO-277A) | VISHAY | SMPC(TO-277A) | 12 | ₹132.42 · 12 in stock | View |
